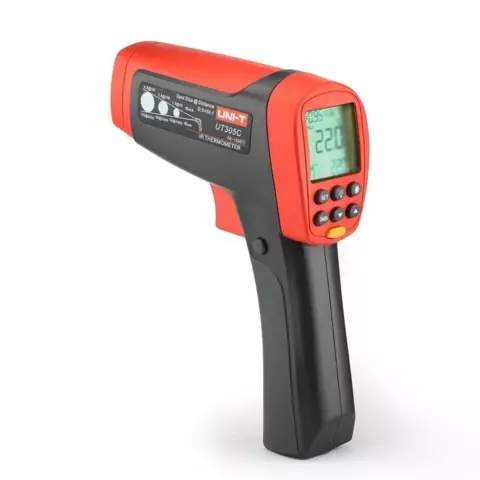

Infrared Thermometer UNI-T UT305C

id: 819435
Infrared Thermometer UNI-T UT305C
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
2 kg Warranty: 24 months
An infrared pyrometer for temperature measurements within the range from -50ºC to 1550ºC. ºC/ºF selection.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

This infrared pyrometer measures temperature within the range from -50ºC to 1550ºC in ºC or ºF.

This infrared ihermometer is NOT a medical device. However, you can use it to measure a person’s body temperature. To do this, you need to select empirically and set the emission factor in the settings (it's in the range 0.6-0.9 for the human body).

You should always maintain safety and security while working:

  • make sure the laser beam don't get into your eyes;
  • don't let children play with the device;
  • don't use the device near surfaces that could reflect the laser beam into anyone's eyes.
Read more
Description

This infrared pyrometer measures temperature within the range from -50ºC to 1550ºC in ºC or ºF.

This infrared ihermometer is NOT a medical device. However, you can use it to measure a person’s body temperature. To do this, you need to select empirically and set the emission factor in the settings (it's in the range 0.6-0.9 for the human body).

You should always maintain safety and security while working:

  • make sure the laser beam don't get into your eyes;
  • don't let children play with the device;
  • don't use the device near surfaces that could reflect the laser beam into anyone's eyes.

Features

  • Temperature range -50ºC ~ 1550ºC
  • Data logging (up to 100)
  • Electricity cut off memory
  • Laser switch
  • Search option
  • Low and high alarm
  • Data Hold function
  • ˚C/˚F selection
  • T-C thermocouple measurement
  • USB data transfer
  • Max/Min/Dif/Avg measurements
  • Tripod mount
  • Sleep mode
  • Low battery indication

Comparative Specifications

Model UT305B UT305C
Temperature range -32ºC ~ 1250ºC -50ºC ~ 1550ºC

Technical Specifications

Display LCD with backlight, 38 × 33 mm
Temperature, ºC Range -50ºC ~ 1550ºC
Accuracy ±1.8ºC or ±1.8%
Resolution 0.1( When < 10˚C - 0.2)
Repeatability ±0.5˚C or ± 0.5%
Distance to spot size 50:1
Response time 250mS(95% of reading)
Spectral response 8 µm to 14 µm
Laser power Class 2(II) operation
Output <1mW
wavelength 630-670 nm
Emissivity Digitally adjustable from 0.10 to 1.00 by 0.01
Power USB, power adaptor or 9V battery (NEDA 1604, 6F22 or 006P)
Dimensions (H × W × D), mm 200 × 130 × 53
Weight, g 320

Video

Youtube video

Package Contents

  • Thermometer UT305C
  • Software
  • Power adaptor
  • USB cable
  • Manual

Note! Batteries are not included in the package.

Specifications
Max. temperature
  • up to 1550 °C
Min. temperature
  • from -50 °C
Optical resolution
  • D:S 50:1
Regulated compensation factor
  • yes
Video
Youtube video
