Insulation Resistance Tester UNI-T UT512E

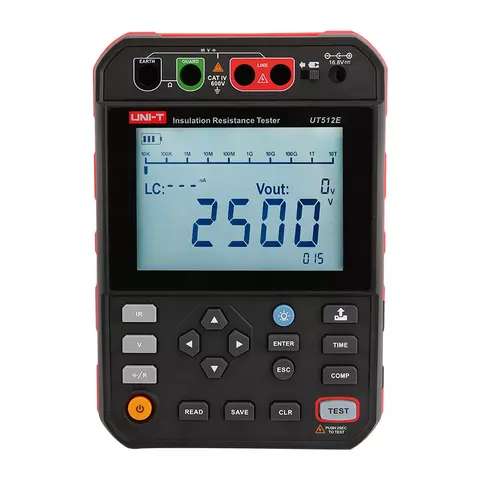

Insulation Resistance Tester UNI-T UT512E Preview 1

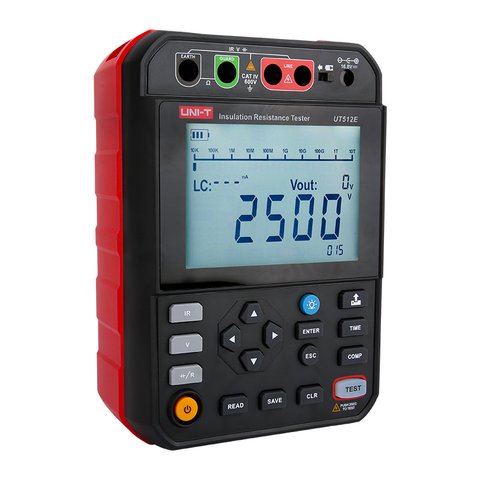

Insulation Resistance Tester UNI-T UT512E Preview 2

Brand:

4.5 kg Warranty: 24 months

Digital high-voltage insulation resistance tester, designed with multiple ranges including 250V, 500V, 1000V, 2500V. Features capacitance and low resistance measurement. Read more

Price coming soon

Impossible to estimate the shipping cost

Description

UNI-T UT512E is a digital high-voltage insulation resistance tester, designed with multiple ranges including 250V, 500V, 1000V and 2500V, each with voltage fine-adjusted at a step of 10%. The tester can store 999 groups of data, which can be transferred to personal computer via USB cable or in real time. This is an easy-to use instrument that is suitable for measuring and servicing power equipment and power supply circuits.

Features

Insulation resistance, load current, DC/AC voltages measurement functions, capacitance and low resistance testing
Data upload function to enable uploading data to computer via USB cable for data analysis
Low battery indication
Data storage: 999 sets
9999-digit backlit LCD
Polarization index measurement function
Over-range indication.
Resistance comparison function (COMP)
Timer testing mode

Technical Specifications

Function		UT512D	UT512E
Function		Range		Accuracy
Insulation Resistance	250 V	<0.25 MΩ	<0,25 MΩ	reference only
		0.25 MΩ ~ 4.99 GΩ	0.25 MΩ ~ 4.99 GΩ	±(5%+5)
		5.00 GΩ ~ 24.9 GΩ	5.00 GΩ ~ 49.9 GΩ	±(20%+10)
		25.0 GΩ ~ 100 GΩ	50.0 GΩ ~ 250 GΩ	reference only
	500 V	<0.50 MΩ	<0.50 MΩ	reference only
		0.50 MΩ ~ 9.99 GΩ	0.50 MΩ ~ 9.99 GΩ	±(5%+5)
		10.0 GΩ ~ 49.9 GΩ	10.0 GΩ ~ 99.9 GΩ	±(20%+10)
		50.0 GΩ ~ 200 GΩ	100 GΩ ~ 500 GΩ	reference only
	1000 V	<1.00 MΩ	<1.00 MΩ	reference only
		1,00 MΩ ~ 19.9 GΩ	1.00 MΩ ~ 19.9 GΩ	±(5%+5)
		20,0 GΩ ~ 99.9 GΩ	20.0 GΩ ~ 199 GΩ	±(20%+10)
		100 GΩ ~ 400 GΩ	200 GΩ ~ 1.00 TΩ	reference only
	2500 V	<2,50 MΩ	<2.50 MΩ	reference only
		2.50 MΩ ~ 49.9 GΩ	2.50 MΩ ~ 49.9 GΩ	±(5%+5)
		50.0 GΩ ~ 249 GΩ	50.0 GΩ ~ 499 GΩ	±(20%+10)
		250 GΩ ~ 1.00 TΩ	500 GΩ ~ 2.50 TΩ	reference only
Output Voltage		Stepping Voltage Range
	250 V	350 / 275 / 300 V		Step by 10% of each range each time, and adjust the voltage range to 50%~120% of each range; Display accuracy: ±(10% read+10V) Output accuracy: ±(0%~20%)
	500 V	300 / 350 / 400 / 450 / 500 / 550 / 600 V
	1000 V	500 / 600 / 700 / 800 / 900 / 1000 / 1100 / 1200 V
	2500 V	1250 / 1500 / 1750 / 2000 / 2250 / 2500 V
DC Voltage		30 ~ 1000 VDC		±(3%+5)
AC Voltage		30 ~ 750 VAC, 50 Hz/60 Hz		±(3%+5)
Current		0.01 nA ~ 3.5 mA	0.01 nA ~ 5 mA
Short-circuit Current		about 3.5 mA	about 5 mA
Capacitance Testing		–	0.01 µF ~ 2.0 µF	±(15%+3)
Low Resistance		–	0.1 ~ 600 Ω	±(2%+10)
Features
PI Test		automatic display		√
DAR Test		automatic display		√
Timing Measurement				√
Monitoring Function		Monitor the voltage of measured object and the discharge state after testing		√
Timer Testing		Record testing time automatically Timing range: 0s～99 m and 59 s		√
Storage Function				999 sets
Data Transmission		Upload testing data to computer via USB cable		√
Low Battery Indication				√
Auto Power Off				√
Backlight		√
General Specifications
Power		Alkaline battery LR14 × 8 pcs.	Lithium battery 14.8 V, 5200 mAh
Net Weight		1.8 kg (including batteries)
Dimensions		238 mm × 166 mm × 90.5 mm
CAT Rating		CAT Ⅳ 600V
