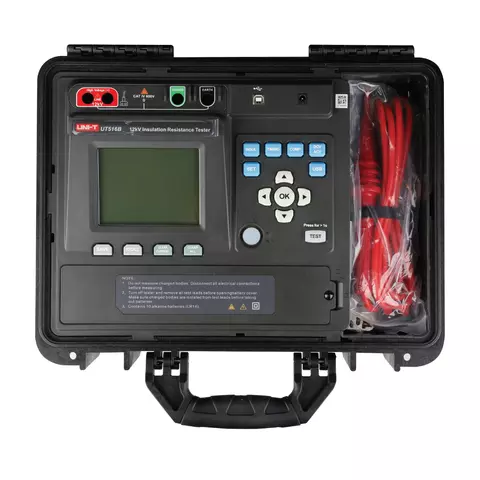

Insulation Resistance Tester UNI-T UT516B
id: 912308
Insulation Resistance Tester UNI-T UT516B
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
10.2 kg Warranty: 24 months
Measurement of insulation resistance in the range of 0.5 MΩ to 100 GΩ with test voltages of 500 to 12000 V in 10% increments in each range, DAR, PI Read more
Price coming soon
Description

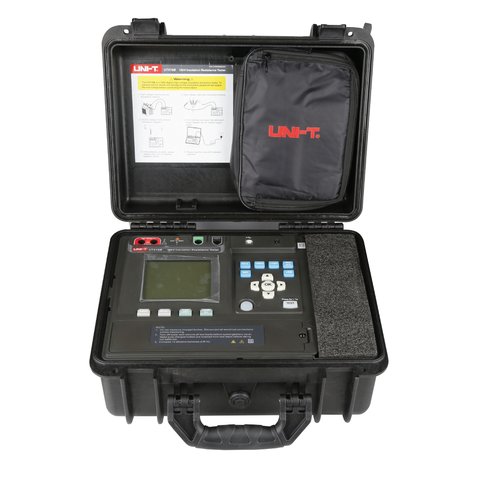

UNI-T UT516B is a digital high-voltage insulation resistance tester with six ranges: 500V, 1000V, 2500V, 5000V, 10000V, and 12000V. Fine adjustment of voltage with a 10% step is available at each range (except 12000V). Test data can be saved in the tester memory and transferred to a PC via the dedicated USB cable or transferred to a PC in real-time. The tester, known for its high performance and easy operation, is widely used in the measurement and maintenance of power equipment and power supply circuits.
Features
- Measures insulation resistance, load current, DC/AC voltage.
- USB data transfer.
- Low battery indication.
- Data storage.
- 9999 count LCD with backlight.
- Polarization Index.
- Over-range alarm.
- Comparative measurement.
- Measurement time selection.
Technical Specifications
| Function | Range | Accuracy | |
|---|---|---|---|
| Insulation Resistance | 500 V | 0.50 MΩ~4.99 GΩ | ±(5%+5) |
| 5.00 GΩ-49.9 GΩ | ±(10%+10) | ||
| 50.0 GΩ-500 GΩ | for reference only | ||
| 1000 V | 1.00 MΩ-9.99 GΩ | ±(5%+5) | |
| 10.0 GΩ-99.9 GΩ | ±(15%+10) | ||
| 100 GΩ-1000 GΩ | for reference only | ||
| 2500 V | 2.50 MΩ-24.9 GΩ | ±(5%+5) | |
| 25.0 GΩ-249 GΩ | ±(15%+10) | ||
| 250 GΩ-2.5 TΩ | for reference only | ||
| 5000 V | 5.00 MΩ-49.9 GΩ | ±(5%+5) | |
| 50 GΩ-499 GΩ | ±(15%+20) | ||
| 500 GΩ-5.0 TΩ | for reference only | ||
| 10000 V | 10.0 MΩ-99.9 GΩ | ±(10%+10) | |
| 100 GΩ-999 GΩ | ±(20%+20) | ||
| 1000 GΩ-10 TΩ | for reference only | ||
| 12000 V | 12.0 MΩ-99.9 GΩ | ±(10%+10) | |
| 100 GΩ-999 GΩ | ±(20%+20) | ||
| 1000 GΩ-10 TΩ | for reference only | ||
| Output Voltage | 500 V | 0~+10% | |
| 1000 V | 0~+10% | ||
| 2500 V | 0~+10% | ||
| 5000 V | 0~+10% | ||
| 10000 V | -5~+10% | ||
| 12000 V | -5~+10% | ||
| Load Current | 500 V (R=500 KΩ) 1 mA | 0%—+20% | |
| 1000 V (R=1 MΩ) 1 mA | 0%—+20% | ||
| 2500 V (R=2.5 MΩ) 1 mA | 0%—+20% | ||
| 5000 V (R=5 MΩ) 1 mA | 0%—+20% | ||
| 10000 V (R=10 MΩ) 0.15~1.2 mA | 0%—+20% | ||
| 12000 V (R=12 MΩ) 0.15~1.2 mA | 0%—+20% | ||
| DC Voltage | 30 V~1000 V | ±(3%+5) | |
| AC Voltage | 30 V–750 v (50–60 Hz) | ±(3%+5) | |
| General Specifications | |||
| PC Software for Data Analysis | available | ||
| Backlight | available | ||
| Date Storage | 999 data sets | ||
| Dielectric Absorption Ratio (DAR) | 0.00~999 | ||
| Polarization Index (PI) | 0.00~999 | ||
| Power | 10 × 1.5V (LR14) alkaline batteries, power adapter | ||
| Net Weight | 6.6 kg | ||
| Product Dimensions | 410 mm × 342 mm × 204 mm | ||
| Gross Weight | 10.2 kg | ||
| Packaging Dimensions | 510 mm × 320 mm × 420 mm | ||
User Manual
Download UNI-T UT516B user manual.
Package Contents

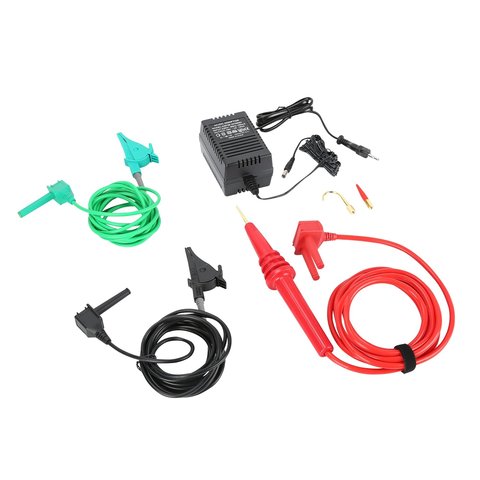

- Insulation Resistance Tester UNI-T UT516B — 1 pc.
- Test Leads (red/black/green) — 3 pcs.
- USB Cable — 1 pc.
- Power Adapter— 1 pc.
- User Manual — 1 pc.
