Insulation Tester UNI-T UT511

id: 830018
Insulation Tester UNI-T UT511
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 96.22
Add to cart
Overview
5 kg
Availability in stock: HK
Warranty: 24 months
Insulation tester which is designed to measure the insulation resistance in the range from 500 kΩ to 10 GΩ with a test voltage of 100 to 1000 V.
USD 96.22
Add to cart
Add to wishlist
Compare
Compare
USD 96.22
Add to cart
Impossible to estimate the shipping cost
Note! This item is shipped within 10 working days.
Description

UNI-T UT511 is a insulation tester which is designed to measure the insulation resistance in the range from 500 kΩ to 10 GΩ with a test voltage of 100 to 1000 V.

UNI-T UT511 Insulation Tester User Manual

Download UNI-T UT511 Insulation Tester User Manual

UNI-T UT511 Insulation Tester Features

  • Measurement functions:
    • low resistance
    • insulation resistance
    • DC voltage
    • AC voltage
  • Auto ranging
  • Sleep mode
  • Low battery indication

UNI-T UT511 Insulation Tester Technical Specifications

Display LCD with backlight, 123 × 58 mm
Insulation resistance measurement Range 0.1 MΩ ~ 10 GΩ
Accuracy ±3%+5
Voltage measurement

100 V / 250 V / 500 V / 1000 V

1000 V / 1500 V / 2500 V / 5000 V

Accuracy 0 ~ 20%
Low resistance 1000 Ω
Power 1.5 V battery (R14) (8 pcs.)
Dimensions (H × W × D), mm 202 × 155 × 94
Weight, kg 2.0

UNI-T UT511 Insulation Tester Package

  • Insulation tester UNI-T UT511 (1 pc.)
  • One plug test lead (2 pcs.)
  • Two plugs test lead (1 pc.)
  • Tool box (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Read more
Description

UNI-T UT511 is a insulation tester which is designed to measure the insulation resistance in the range from 500 kΩ to 10 GΩ with a test voltage of 100 to 1000 V.

UNI-T UT511 Insulation Tester User Manual

Download UNI-T UT511 Insulation Tester User Manual

UNI-T UT511 Insulation Tester Features

  • Measurement functions:
    • low resistance
    • insulation resistance
    • DC voltage
    • AC voltage
  • Auto ranging
  • Sleep mode
  • Low battery indication

UNI-T UT511 Insulation Tester Technical Specifications

Display LCD with backlight, 123 × 58 mm
Insulation resistance measurement Range 0.1 MΩ ~ 10 GΩ
Accuracy ±3%+5
Voltage measurement

100 V / 250 V / 500 V / 1000 V

1000 V / 1500 V / 2500 V / 5000 V

Accuracy 0 ~ 20%
Low resistance 1000 Ω
Power 1.5 V battery (R14) (8 pcs.)
Dimensions (H × W × D), mm 202 × 155 × 94
Weight, kg 2.0

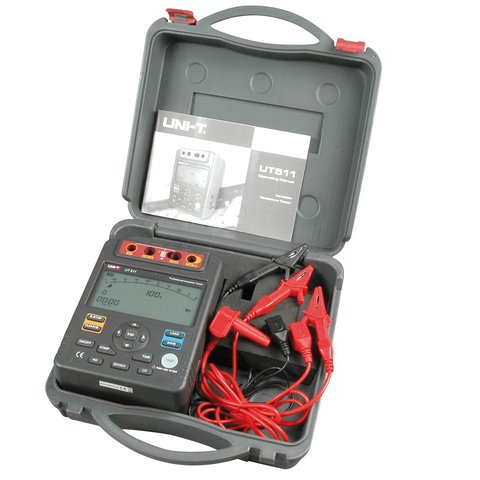

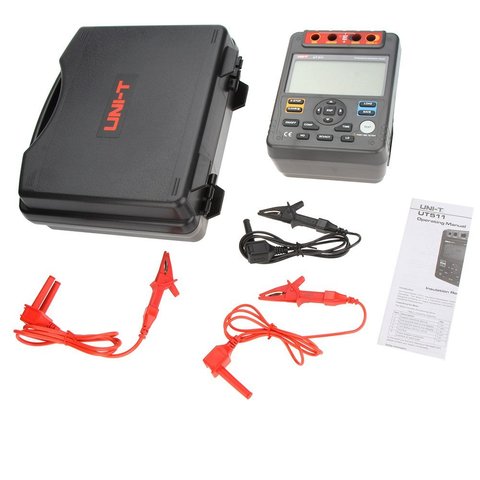

UNI-T UT511 Insulation Tester Package

  • Insulation tester UNI-T UT511 (1 pc.)
  • One plug test lead (2 pcs.)
  • Two plugs test lead (1 pc.)
  • Tool box (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Max. measurable resistance
  • 1 000 000 MOm
Max. voltage
  • 1000 V
