Insulation Tester UNI-T UT512

id: 830019
Insulation Tester UNI-T UT512
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 133.94
Add to cart
Overview
4.2 kg 220 V
Availability in stock: HK
Warranty: 24 months
Insulation tester which is designed to measure the insulation resistance in the range from 0.5 MΩ to 100 000 MΩ with a test voltage of 500 to 2500 V.
USD 133.94
Add to cart
Add to wishlist
Compare
Compare
USD 133.94
Add to cart
Impossible to estimate the shipping cost
Note! This item is shipped within 10 working days.
Description

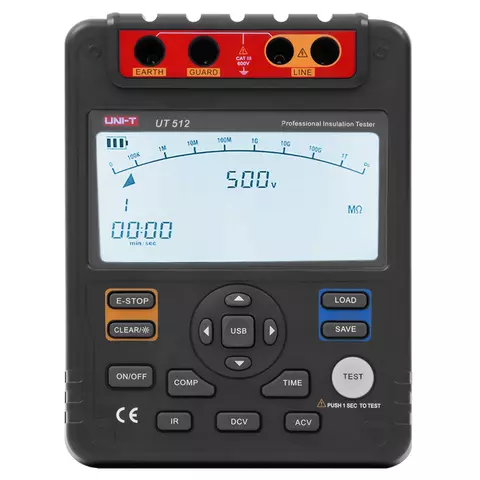

UNI-T UT512 is a insulation tester which is designed to measure the insulation resistance in the range from 0.5 MΩ to 100 000 MΩ with a test voltage of 500 to 2500 V.

User Manual

Read more
Description

UNI-T UT512 is a insulation tester which is designed to measure the insulation resistance in the range from 0.5 MΩ to 100 000 MΩ with a test voltage of 500 to 2500 V.

User Manual

Download UNI-T UT512 Insulation Tester User Manual

Features

  • Measurement functions:
    • insulation resistance
    • DC voltage
    • AC voltage
  • Auto ranging
  • Sleep mode
  • Low battery indication

Technical Specifications

Display 9999 digits LCD, with backlight, 123 × 58 mm
Insulation resistance measurement Range 0.5 MΩ ~ 100 GΩ
Accuracy ±(3%+5)
Testing voltage Range 500 V / 1000 V / 1500 V / 2500 V
Accuracy 0 ~ 20%
DC voltage Range 600 V
Accuracy ±(2%+5)
AC voltage Range 600 V
Accuracy ±(2%+5)
Power 1.5 V alkaline battery (LR14) (8 pcs.)
Dimensions (H × W × D), mm 202 × 155 × 94
Weight, kg 1.8 kg

Video

Youtube video

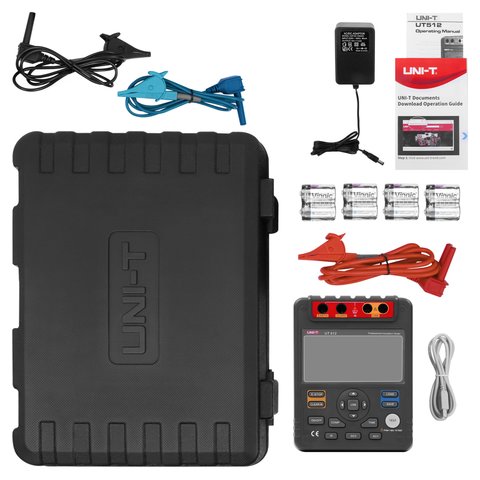

Package Contents

  • Insulation tester UNI-T UT512 (1 pc.)
  • One plug test lead (black) (1 pc.)
  • One plug test lead (green) (1 pc.)
  • Two plugs test lead (red) (1 pc.)
  • Tool box (1 pc.)
  • USB interface (1 pc.)
  • Software (1 pc.)
  • Power Supply (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Max. measurable resistance
  • 100 000 MOhm
Max. voltage
  • 2500 V
Video
Youtube video
