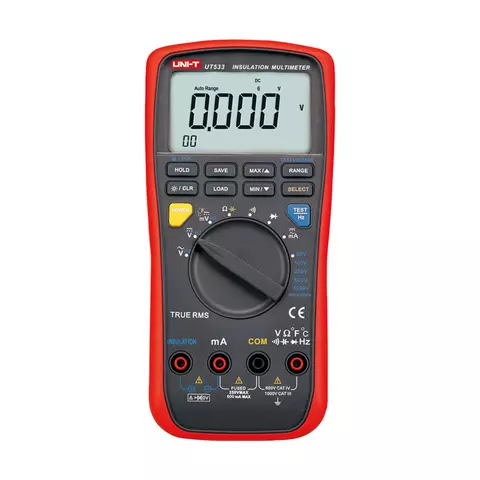

Insulation Tester UNI-T UT533

id: 830021
Insulation Tester UNI-T UT533
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 163.40
Add to cart
Overview
Bestseller
1.1 kg
Availability in stock: HK
Warranty: 24 months
Multimeter and insulation tester in a single compact unit that is capable of measuring DC and AC voltage, DC and AC current, resistance, capacitance and temperature.
USD 163.40
Add to cart
Add to wishlist
Compare
Compare
USD 163.40
Add to cart
Impossible to estimate the shipping cost
Note! This item is shipped within 10 working days.
Description

UNI-T UT533 is a multimeter and insulation tester in a single compact unit that is capable of measuring DC and AC voltage, DC and AC current, resistance, capacitance and temperature.

User Manual

Read more
Description

UNI-T UT533 is a multimeter and insulation tester in a single compact unit that is capable of measuring DC and AC voltage, DC and AC current, resistance, capacitance and temperature.

User Manual

Download UNI-T UT533 Insulation Tester User Manual

Features

  • Measurement functions:
    • insulation resistance
    • resistance
    • capacitance
    • frequency
    • DC voltage
    • AC voltage
    • DC current
    • AC current
  • Auto ranging
  • Data hold
  • Low battery indication

Technical Specifications

Display LCD with backlight, 81 × 46 mm
Insulation Resistance Measurement Range

50 V:   0.1 MΩ ~ 50.0 MΩ
100 V: 0.1 MΩ ~ 100.0 MΩ

250 V: 0.2 MΩ ~ 99.9 MΩ
          100 MΩ~250 MΩ

500 V: 0.5 MΩ ~ 99.9 MΩ
          100 MΩ~500 MΩ

1000 V: 4.0 MΩ ~ 99.9 MΩ
          100 MΩ~999 MΩ
1 GΩ ~ 2 GΩ

Accuracy ±3%
Current Range 250 V 60 mA / 600 mA
500 V
1000 V
Accuracy ±1.0%
Voltage measurement 60 mV / 600 mV / 6 V / 60 V / 600 V / 1000 V
Accuracy 0.09% +6
Power 1.5 V Battery (6 pcs.)
Dimensions (H × W × D), mm 97 × 203 × 46
Weight, kg 0.55

UNI-T UT533 Insulation Tester Package

  • Insulation tester UNI-T UT533 (1 pc.)
  • Test lead (1 pc.)
  • Alligator clip (1 pc.)
  • Point contact  (1 pc.)
  • Temperature probe (1 pc.)
  • Carrying bag (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Max. measurable resistance
  • 1000 MOhm
Max. voltage
  • 1000 V
