LC/UPC Fiber Optic Connector, 10 pcs/pack
id: 908987
LC/UPC Fiber Optic Connector, 10 pcs/pack
Overview
Description
Delivery
Payment
Warranty
USD 17.28
Add to cart
Overview
0.1 kg
Availability in stock:
HK
A plastic optical connector with a ceramic ferrule. Used for indoor cross-connects where a high density of optical ports is required. Read more
Buy wholesale and save
Description

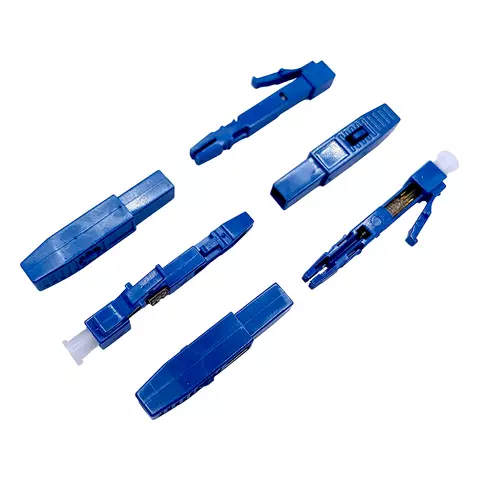

LC/UPC blue fiber optic connector designed to connect an optical cable and an optical socket, followed by signal transmission. The connector is used in optical SFP transceivers, some network equipment, and in distribution panels where a high density of optical ports is required. LC connectors are a smaller version of SC connectors.
The connector is made of plastic and has a locking latch, which is used in modular connectors of copper cable systems (RJ-45 locking system). The diameter of the connector's ferrule is 1.25 mm. The LC/UPC connector guarantees a fast, high-quality, and reliable connection.
Features
- Supplied in a blister pack (10 pieces per pack).
- Fast and reliable installation, easy operation, multiple uses.
- Compact, durable, and lightweight.
Technical Specifications
| Type | LC/UPC |
| Applicable fibers | SM (single mode) |
| Body and shank material | thermoplastic |
| Ferrule material | ceramics |
| Shank outlet diameter | 2 mm |
| Ferrule diameter | 1.25 mm |
| Fiber diameter | 125-126 µm |
| Fixing connector in the socket | locking latch (similar to RJ-45) |
| Return loss | ≥ 55 dB |
| Insertion loss | ≤ 0.10 dB |
| Attenuation accuracy | ±10% dB |
| Working temperature range | -20°C - +75°C |
| Storage temperature | -40°C - +80 °C |
| Humidity | 95% RH |
| Number of switching cycles (min.) | 1000 |
Package Contents
- LC/UPC Fiber Optic Connector — 10 pcs.
