Device designed for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors and other devices.
Availability in stock:
HK
ID: 895992 0.3 kg

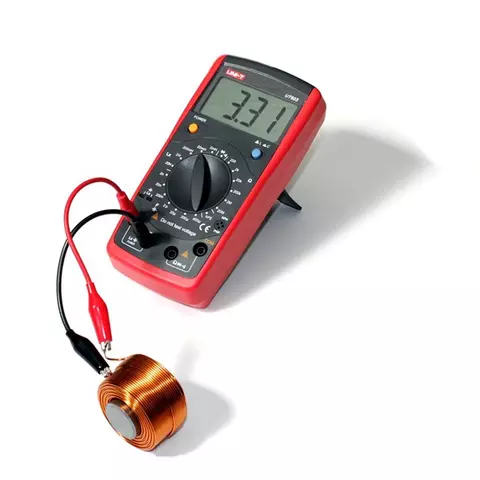

LCR Meter UNI-T UT603
id: 819447
LCR Meter UNI-T UT603
Overview
Description
Delivery
Payment
Warranty
USD 38.46
Overview
0.53 kg Warranty: 24 months
A digital LCR meter for resistance, capacitance, inductance measurements, and for continuity, diode and transistor tests. Read more
Buy wholesale and save
You may also like
Description
UNI-T UT603 digital LCR meter measures resistance, capacitance and inductance, and tests continuity, diodes and transistors.
Features
- Functions:
- resistance
- capacitance
- inductance
- continuity test (with buzzer)
- diode test
- transistor test
- Manual ranging
- Low battery indication
Technical Specifications
| Display | 3½ (1999) digit LCD, 61 × 32 mm, | |
| Resistance, Ω | Range | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
| Accuracy | ±(0.8%+1) | |
| Capacitance, F | Range | 2nF/20nF/200nF/2µF/20µF/200µF/600µF |
| Accuracy | ±(1%+5) | |
| Inductance, H | Range | 2mH/20mH/200mH/2H/20H |
| Accuracy | ±(2%+8) | |
| Sampling rate | 2-3x/s | |
| Power | 9V battery: NEDA 1604, 6F22 or 006P | |
| Dimensions (H × W × D), mm | 172 × 83 × 38 | |
| Weight, g | 312 | |
Manuals
Download UNI-T UT603 Digital Multimeter User Manual (English version)
Package Contents
- UNI-T UT603 LCR Meter — 1 pc.
- Test clip — 1 pc.
- User manual — 1 pc.
Note! Batteries are not included in the package.
