Lead-Free Hot Air Rework Station AOYUE 2703A+ (110 V)

id: 861663
8 kg 110 V Warranty: 12 month (s)
Powerful 3 in 1 lead-free rework station, equipped with a soldering iron, built-in smoke absorber and a desoldering gun.
USD 266.00
Notify
when in stock
USD 266.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

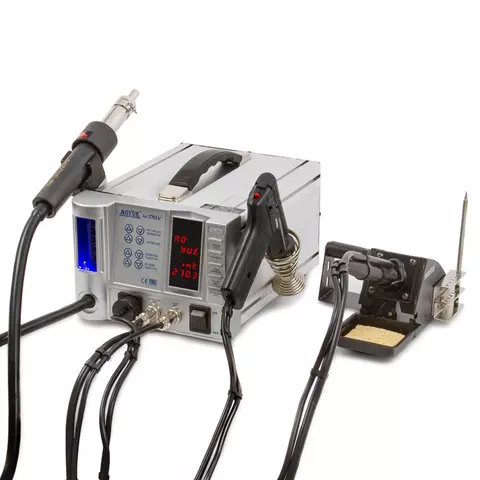

AOYUE 2703A+ is a powerful 3 in 1 lead-free hot air rework station, which is equipped with a soldering iron, built-in smoke absorber and a desoldering gun, perfectly suitable for workshops and laboratories. AOYUE 2703A+ desoldering station comes with a Dual Port System that allows the user to use simultaneously the lead-free soldering iron as well as the desoldering gun.

Features

  • Microprocessor-controlled ESD safe unit
  • Suited for multi-layered PCB reworking
  • Touch type panel controls
  • Integrated smoke absorber functionality with filter pad
  • Soldering iron ceramic heating element integrated with temperature sensor
  • Built-in autocooling
  • Large selection of air nozzles
  • Compatibility with different soldering iron tips

Technical Specifications

Main station module
Power input 110 V
Station dimensions 188 × 126 × 250 mm
Weight 5.6 kg
Soldering iron
Temperature range 200 °C to 480 °C
Power consumption 70 W
Output voltage 24 V
Heating element ceramic heater
Hot air gun
Temperature range 100 °C to 480 °C
Power consumption 500 W
Air capacity 23 l /min (max)
Heating element metal heating core
Pump type diaphragm pump
Desoldering gun
Heating element ceramic heater
Temperature range 200 °C - 480 °C
Output voltage 24 V

Package Contents

  • Rework station unit (1 pc.)
  • Hot air gun (1 pc.)
  • Desoldering gun (1 pc.)
  • Desoldering tips (2 pcs.)
  • Desoldering gun holder (1 pc.)
  • Soldering iron with smoke absorber (1 pc.)
  • Soldering iron holder (1 pc.)
  • Soldering iron tip (1 pc.)
  • Vacuum suction pen (1 pc.)
  • G001 IC tweezers (1 pc.)
  • Air nozzles (3 pcs.)
  • Filter pads (6 pcs.)
  • Nozzle cleaning pin (1 pc.)
  • Power cord (1 pc.)
Specifications
Pump type
  • compressor
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Available
Power Supply
  • Non-available
Soldering Iron Power
  • 70 W
Hot Air Gun Power
  • 500 W
Desoldering Gun
  • Available
