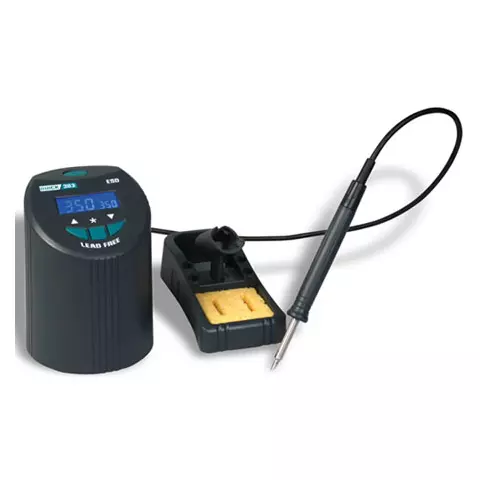

Lead-Free Soldering Station QUICK-303 ESD

id: 838061
Lead-Free Soldering Station QUICK-303 ESD
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
3 kg 220 V Warranty: 6 months
Lead-free soldering station characterized by a 90 W power, temperature adjusment from 200°C to 420°C and temperature stability of ±2°C.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

QUICK-303 ESD Lead-Free Soldering Station is used for SMD components mounting and rework, soldering electronic components and lead-free soldering. It is a soldering station with a 90 W power, temperature adjusment from 50°C to 500°C and temperature stability of ±2°C.

QUICK-303 ESD Features

  • Up to 64 units can be connected to one computer for group management.
  • Sensor close to the tip, rapid thermal recovery.
  • Calibrate temperature digitally and easily.
  • Large LCD design for displaying two temperatures.
  • New appearance and compact structure.
  • Range of temperature limits can be set according to requirements.
  • Auto-sleeping time and shut-off time can be set.
  • Temperature locked by password.
  • Safe and reliable grounding method is used to avoid changes of tip-to-ground resistance and tip-to-ground potential during soldering process.
  • Separate design of heater and soldering tip, and low cost of replacing spare parts.
  • ESD safe design.

QUICK-303 ESD Technical Specifications

Power consumption 90 W
Output voltage AC 36 V, 400 KHz
Temperature range 50°C-500°C
Ambient temperature (max) 40°C
Temperature stability ±2°C (stationary air, no load)
Connection RS485
Max quantity of the units connected to PC ≤64 units
Tip-to-ground resistance < 2 Ω
Tip-to-ground potential < 2 mV
Heating element Electromagnetic element
Dimensions Φ120×150(H)mm
Weight (without power cord) About 2.1 kg

QUICK-303 ESD Soldering Iron Tips

QUICK-303 ESD lead-free soldering station is compatible with the following QUICK soldering iron tips (not included in the package):

QUICK-303 ESD Soldering Iron Tips

Read more
Description

QUICK-303 ESD Lead-Free Soldering Station is used for SMD components mounting and rework, soldering electronic components and lead-free soldering. It is a soldering station with a 90 W power, temperature adjusment from 50°C to 500°C and temperature stability of ±2°C.

QUICK-303 ESD Features

  • Up to 64 units can be connected to one computer for group management.
  • Sensor close to the tip, rapid thermal recovery.
  • Calibrate temperature digitally and easily.
  • Large LCD design for displaying two temperatures.
  • New appearance and compact structure.
  • Range of temperature limits can be set according to requirements.
  • Auto-sleeping time and shut-off time can be set.
  • Temperature locked by password.
  • Safe and reliable grounding method is used to avoid changes of tip-to-ground resistance and tip-to-ground potential during soldering process.
  • Separate design of heater and soldering tip, and low cost of replacing spare parts.
  • ESD safe design.

QUICK-303 ESD Technical Specifications

Power consumption 90 W
Output voltage AC 36 V, 400 KHz
Temperature range 50°C-500°C
Ambient temperature (max) 40°C
Temperature stability ±2°C (stationary air, no load)
Connection RS485
Max quantity of the units connected to PC ≤64 units
Tip-to-ground resistance < 2 Ω
Tip-to-ground potential < 2 mV
Heating element Electromagnetic element
Dimensions Φ120×150(H)mm
Weight (without power cord) About 2.1 kg

QUICK-303 ESD Soldering Iron Tips

QUICK-303 ESD lead-free soldering station is compatible with the following QUICK soldering iron tips (not included in the package):

QUICK-303 ESD Soldering Iron Tips

Specifications
Power
  • 90 W
Heater type
  • induction
Control type
  • digital
Soldering iron voltage
  • 36 V
