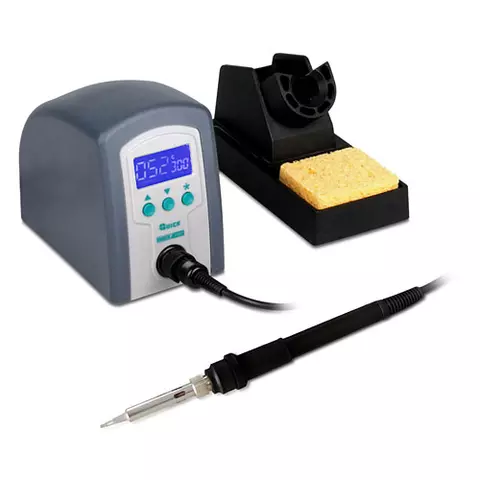

Lead-Free Soldering Station QUICK 3102 ESD
QUICK 3102 ESD Lead-Free Soldering Station is used for SMD components mounting and rework, soldering electronic components and lead-free soldering. It is a soldering station with a 80 W power, temperature adjusment from 100°C to 450°C and temperature stability of ±2°C.
QUICK 3102 ESD Features
- Microcontroller controlled LCD for temperature display.
- Rapid thermal recovery, fast heating.
- Saving 3 temperature values for fast adjustment.
- Safe and reliable grounding method is used to avoid changes of tip-to-ground resistance and tip-to-ground potential during soldering process.
- A wide range of replacement soldering iron tips with a long lifetime. Easy tip replacement.
- Easy digital temperature calibration.
- Temperature and calibration settings protected by password.
- Separate design of heater and soldering tip, and low cost of replacing spare parts.
- Easy-to-use compact soldering iron QUICK-907G.
- New appearance.
- ESD safe design.
QUICK 3102 ESD Technical Specifications
|Power consumption||80 W|
|Power supply||200–240 V (50/60 Hz), AC|
|Temperature range||100°C – 450°C (may be selected)|
|Ambient temperature (max)||40°C|
|Temperature stability||±2°C (stationary air, no load)|
|Tip-to-ground resistance||< 2 Ω|
|Tip-to-ground potential||< 2 mV|
|Heating element||HF electromagnetic element|
|Soldering iron cord length||1.2 m|
|Dimensions, L×W×H||83 × 140 × 125 mm|
|Weight (without power cord)||~ 1.58 kg|
QUICK 3102 ESD Soldering Iron Tips
QUICK 3102 ESD lead-free soldering station is compatible with the following QUICK soldering iron tips (not included in the package):
QUICK 3102 ESD Package Contents
- QUICK-3102 ESD Lead-Free Soldering Station unit (with power cord) – 1 pc.
- Soldering Iron QUICK-907G – 1 pc.
- Soldering Iron Tip Quick 961-B – 1 pc.
- Soldering Iron Support (with a cleaning sponge) – 1 pc.
- Thermal-proof spacer for tip replacement – 1 pc.
- GND cord – 1 pc.
- User Manual – 1 pc.
