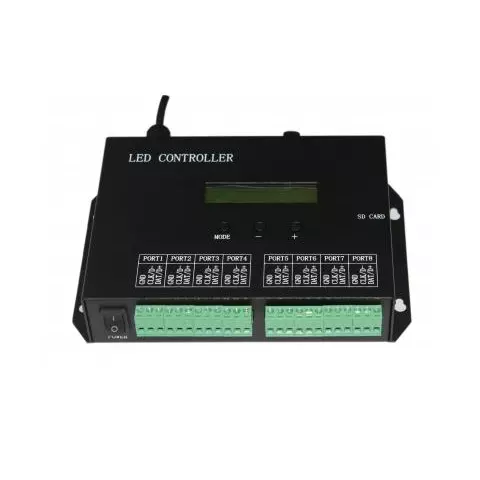

LED Standalone Controller H803SA (8192 px)

With the help of H803SA controller you will be able to control and display text/images on LED RGB modules. Programs are recorded on an SD card.

H803SA uses 8 output ports to drive up to 8192 pixels. Equipped with 3 control buttons and an LCD screen for convenient operation. Compatible with AC power supplies and can be connected to a DMX console.

Downloads

Download LedBuild software

Download LedBuild software manual

Features

• Max. number of pixels: 8192
• SD card support (max. 64 GB)
• DMX support
• 8 inputs (max. 1024 pixels per input)

Compatible ICs

LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, APA102, APA104, P9813, P9823, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2813, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV.

Technical Specifications

Package Content

• H803SA controller — 1 pc.
• SD card — 1 pc.
