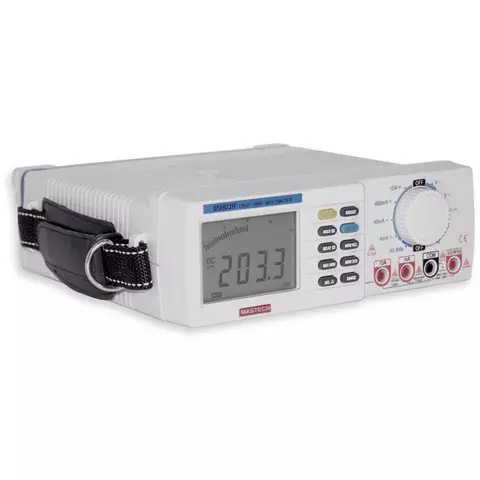

MASTECH M9803R Professional table stand digital multimeter

id: 9380
2.33 kg 220 V Warranty: 6 month (s)
High-precision measurement. PC - interface RS232. Linear and digital scale. Line supply or supply by battery. DELAY-HOLD regime. Mean square measurement.
Price coming soon
Contact
sales team
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

Professional table stand digital multimeter MASTECH MS9803R ensures high measurement accuracy.

Features

  • PC – interface RS232.
  • Linear and digital scale.
  • Line supply or battery supply.
  • DELAY-HOLD regime.
  • Mean square measurement.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical specifications

Ranging automatic/manual
Counts 4000
DC voltage  400 mV/4/40/400/1000 V ±0.3%
AC voltage 4/40/400/750 V ±0.8%
DC current  4/40/400 mA ±0.8%, 10 A ±1.5%
AC current  4/40/400 mA ±1.5%, 10 A ±2.0%
Frequency 100 Hz/1/10/100/600 kHz ±0.1%
Resistance 400Ω/4/400kΩ ±0.5%, 4MΩ ±1.0%, 40MΩ ±1.5%
Capacitance 4/40/400 nF/4/20 µF; ±2.0%, 40 µF ±5.0%
Diode test Yes
Automatic power-off Yes
Data Hold Yes
Overload protection Yes
Display backlight Yes
Power source 9 V(AA 1.5B x 6)
PC interface connection  Yes (RS232)
Specifications
Type
  • digital
  • desktop
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
Additional Functions
  • acoustic continuity test
  • data hold
  • connection to PC (RS232)
  • automatic shutdown/sleep mode
  • mnemonic
  • RMS measurement
  • relative measurements
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 40 MOhm
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Backlight
  • yes
PC connection
  • RS232
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Continuity test
  • yes
Frequency
  • up to 600 kHz
Capacitance
  • up to 40 μF
Battery Testing
  • no
