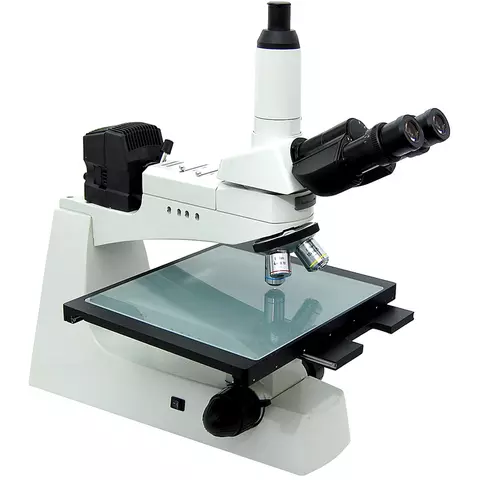

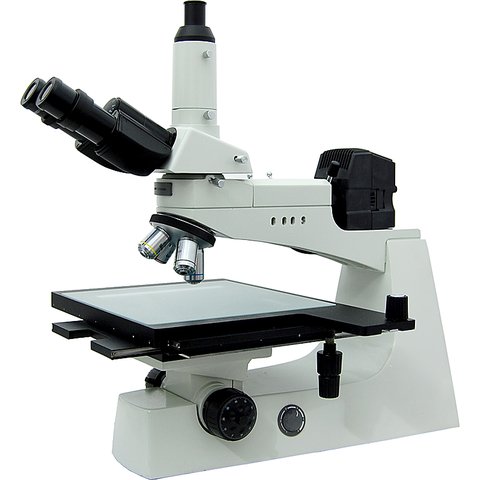

Metallurgical Trinocular Microscope NJC-160

id: 813721
Metallurgical Trinocular Microscope NJC-160
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 1399.00
Contact
sales team
Overview
30.3 kg 220 V Warranty: 6 months
Suitable for inspection and analysis with incident and transmitted illumination.
USD 1399.00
Contact
sales team
Compare
Compare
USD 1399.00
Contact
sales team
Impossible to estimate the shipping cost
Description

Metallurgical microscope NJC-160 is suitable for inspection and analysis of the structure of various metals, alloys and non-metal materials. Its infinitive optical system provides excellent optical functions. The microscope is equipped with the incident and transmitted illumination. NJC-160 is widely used in electronic industry and chemical engineering with instruments and meters to observe surfaces of opaque materials, PCB chips, LCDs, wires, fibers, plating etc. The instrument can also be used in biological study.

Specifications

Compensation viewing head
trinocular
Eyepiece
WF10 × / 22 mm
Objective: Infinitive Plan Achromatic Objective
4 × / 0.1∞ / - WD25.4 mm
10 × / 0.25 ∞ / -WD11.0 mm
20 × / 0.40 ∞ / -WD6.0 mm
40 × / 0.60∞ / -WD3.7 mm
Nosepiece
quadruple nosepiece
Stage
double layers mechanical stage 300 mm × 268 mm;
moving range 250 mm × 250 mm
Focusing
coaxial coarse & fine focus adjustment system
Ullumination
halogen lamp 6v20 V,adjustable brightness
Polarization
polarizer
Filter
blue, yellow, green and frosted glass
Digital camera port
"C" standard port
Read more
Description

Metallurgical microscope NJC-160 is suitable for inspection and analysis of the structure of various metals, alloys and non-metal materials. Its infinitive optical system provides excellent optical functions. The microscope is equipped with the incident and transmitted illumination. NJC-160 is widely used in electronic industry and chemical engineering with instruments and meters to observe surfaces of opaque materials, PCB chips, LCDs, wires, fibers, plating etc. The instrument can also be used in biological study.

Specifications

Compensation viewing head
trinocular
Eyepiece
WF10 × / 22 mm
Objective: Infinitive Plan Achromatic Objective
4 × / 0.1∞ / - WD25.4 mm
10 × / 0.25 ∞ / -WD11.0 mm
20 × / 0.40 ∞ / -WD6.0 mm
40 × / 0.60∞ / -WD3.7 mm
Nosepiece
quadruple nosepiece
Stage
double layers mechanical stage 300 mm × 268 mm;
moving range 250 mm × 250 mm
Focusing
coaxial coarse & fine focus adjustment system
Ullumination
halogen lamp 6v20 V,adjustable brightness
Polarization
polarizer
Filter
blue, yellow, green and frosted glass
Digital camera port
"C" standard port
Specifications
Type
  • metallographic
  • trinocular
Maximum Zoom Ratio
  • up to 400X
Illumination
  • upper light
  • bottom light
Zoom Rate Control Method
  • discrete adjustment of multiplicity
