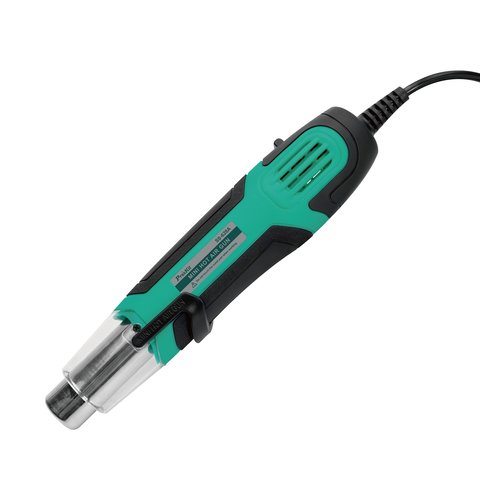

Mini Hot Air Gun Pro'sKit SS-628F
id: 916344
New
0.5 kg
Availability in stock:
HK
Warranty: 6 months Operates in two modes: 350°C/250 W/150 l/min (for defrosting and heat shrinking) and 500°C/500 W/300 l/min (for removing solder, rust, and paint). Read more
Buy wholesale and save
Pro'sKit SS-628Fis a robust, ergonomic, and portable thermal air soldering station that operates in two modes. The first mode (350°C/250 W/150 l/min) is designed for defrosting and heat shrinking, while the second mode (500°C/500 W/300 l/min) is for removing solder, rust, and paint.
The non-slip handle is equipped with a ventilation system for air inlet and heat dissipation, along with a folding stand. The tool comes with an optional reflector bayonet nozzle.
Features
- Two operating modes:
- 350 °C/250 W/150 l/min (for defrosting, shrinking);
- 500 °C/500 W/300 l/min (for removing solder, rust and paint).
- Powerful heating element ensures fast heating, stable operation, and temperature overload protection.
- Ventilation system for air inlet and heat dissipation to prevent product overheating.
- Non-slip handle.
- Foldable stand for hands-free operation and easy storage.
- Ergonomic and portable body.
- Extra reflector bayonet nozzle included.
Technical Specifications
Power Consumption | 250 W/500 W |
Temperature | mode I: 350 °C; mode II: 500 °C |
Voltage | AC 230/240 V, 50/60 Hz |
Air Volume | mode I: 150 l/min; mode II: 300 l/min |
Power Cable | 2 × 0.5 mm, 1.8 m |
Dimensions | 25 mm × 47 mm × 225 mm |
Weight | 370 g |
Video
User Manual
Download Pro'sKit SS-628F User Manual.
Package Contents
- Mini Hot Air Gun Pro'sKit SS-628F — 1 pc.
- Reflector Bayonet Nozzle — 1 pc.
