Mixed Signal Oscilloscope OWON MSO8202T

id: 856646
Mixed Signal Oscilloscope OWON MSO8202T
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 980.00
Notify
when in stock
Overview
110, 220 V Warranty: 12 months
Dual-channel mixed signal oscilloscope with 200 MHz bandwidth, up to 2 GSa/s real-time sample rate, 16-channel Logic Analyzer with 200 MHz bandwidth, and 8" display.
USD 980.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 980.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

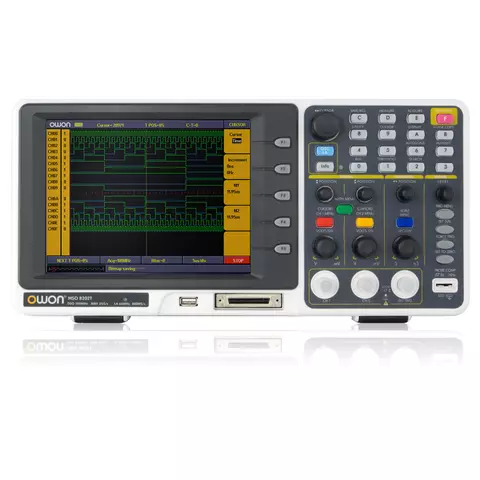

OWON MSO8202T is a dual-channel mixed signal oscilloscope with 200 MHz bandwidth, up to 2 GSa/s real-time sample rate, 16-channel Logic Analyzer with 200 MHz bandwidth, and 8" display.

Features

  • 2 in 1: digital storage oscilloscope (DSO) + logic analyzer (LA)
  • 8 inch LCD color display
  • Support USB for data transmission to PC
  • USB Flash Disk Storage
  • 20 Automatic Measurements
  • Max. 2M record length

Technical Specifications

Digital Oscilloscope Characteristics
Bandwidth 200 MHz
Real time sample rate 2 GS/s (1 GS/s for dual channels)
Horizontal Scale 1ns/div~100s/div, step by 1~2~5
Rise time (at input, typical) ≤1.7 ns
Channels Dual channels + external trigger
Display 8.0" color LCD, TFT screen, 640×480 pixels, 65535 colors
Input impedance 1MΩ±2%, in parallel with 15pF±5pF
Channels Isolation 50 Hz: 100 : 1, 10 MHz: 40 : 1
Max. input voltage 400V (DC + AC PK-PK)
Record length Max.2M points
Probe attenuation factor 1X, 10X, 100X, 1000X
Interpolation (sin x)/x
Vertical resolution (A/D) 8 bit (2 channels simultaneously)
Vertical sensitivity 2mV/div~10V/div(at input)
DC gain accuracy ±3%
DC accuracy(Average) Average>16:±(3% reading+0.05div) for ΔV
Trigger type Edge, Video, Alternate, Pulse, Slope
Cursor measurement ΔV and ΔT between cursors
Waveform Math +, -, ×, ÷, FFT
Waveform storage 4 waveforms
Trigger mode Auto, Normal, Single
Communication interface USB, Supports USB Flash Disk Storage
Cymometer Available
Power supply 100V-240V AC RMS, 50/60Hz, CAT II
Fuse 1A, T grade , 250V
Logic Analyzer Characteristics
Real time sample rate 20 S/s - 400 MS/s
Bandwidth 200 MHz
Threshold voltage ±10 V (4 settings)
Input signal range ±15 V
Channels 16
Record length 4 M/channel
Input impedance 1 MΩ ±2%
Data System Binary system, Decimal system, Hex
Data search Available
Digital filter 0, 1, 2 optional
Storage setting 10 settings

Video

Youtube video

Youtube video

Youtube video

Youtube video

Package Contents

  1. Owon MSO8202T Mixed Logic Analyzer/Oscilloscope – 1 pc.
  2. Logic analyzer module – 1 pc.
  3. Measuring probes – 1 pair
  4. Power cord – 1 pc.
  5. USB data cable – 1 pc.
  6. CD – 1 pc.
  7. User's Manual – 1 pc.
Read more
