Monocular Microscope ZTX-S2-C2

id: 810799
Monocular Microscope ZTX-S2-C2
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 165.00
Contact
sales team
Overview
8.8 kg 220 V Warranty: 6 months
Optical system providing high resolution, sharp erect image and strong stereoscopic impression.
USD 165.00
Contact
sales team
Compare
Compare
USD 165.00
Contact
sales team
Impossible to estimate the shipping cost
Description

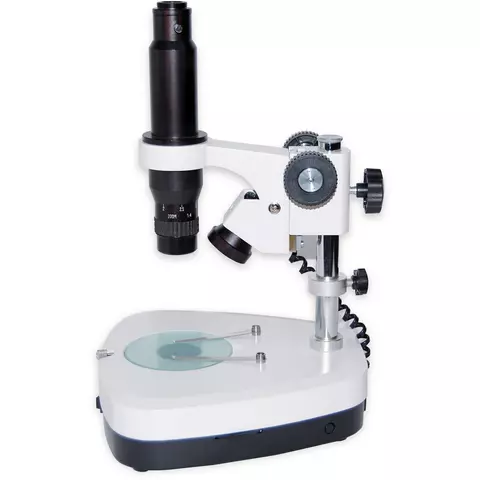

Monocular zoom video microscope ZTX-S2-C2 is an optical system providing high resolution, sharp erect image and strong stereoscopic impression. 1x-4x zoom image can be observed after easy adjustment.

It is a good choice for semiconductor and integrated circuit assembling and inspestion. Besides, ZTX-S2-C2 can be used in educational demonstration and agricultural research.

ZTX-S2-C2 Monocular Microscope Technical Specifications and Features:

  • Objective zoom: 1x-4x
  • Eyepiece: 10x
  • Zoom ratio 1:4
  • Total magnification: 10x -40x
  • Working distance: 90.5 mm
  • Working field of objective: Ø20 mm - Ø 5,5 mm
  • Image field of view: Ø 18 mm (depends on the size of the CCD target)
  • The distance between the top of microscope top and CCD image sensor: 17.5 mm
  • Power supply: 110 V, 60 Hz or 220 V, 50 Hz
  • Electric apparatus has CE approval
  • Illumination: incident illumination & transmitted illumination
Read more
Description

Monocular zoom video microscope ZTX-S2-C2 is an optical system providing high resolution, sharp erect image and strong stereoscopic impression. 1x-4x zoom image can be observed after easy adjustment.

It is a good choice for semiconductor and integrated circuit assembling and inspestion. Besides, ZTX-S2-C2 can be used in educational demonstration and agricultural research.

ZTX-S2-C2 Monocular Microscope Technical Specifications and Features:

  • Objective zoom: 1x-4x
  • Eyepiece: 10x
  • Zoom ratio 1:4
  • Total magnification: 10x -40x
  • Working distance: 90.5 mm
  • Working field of objective: Ø20 mm - Ø 5,5 mm
  • Image field of view: Ø 18 mm (depends on the size of the CCD target)
  • The distance between the top of microscope top and CCD image sensor: 17.5 mm
  • Power supply: 110 V, 60 Hz or 220 V, 50 Hz
  • Electric apparatus has CE approval
  • Illumination: incident illumination & transmitted illumination
Specifications
Type
  • maintenance
  • monocular
Maximum Zoom Ratio
  • up to 40X
Illumination
  • upper light
  • bottom light
Zoom Rate Control Method
  • smooth adjustment of multiplicity
