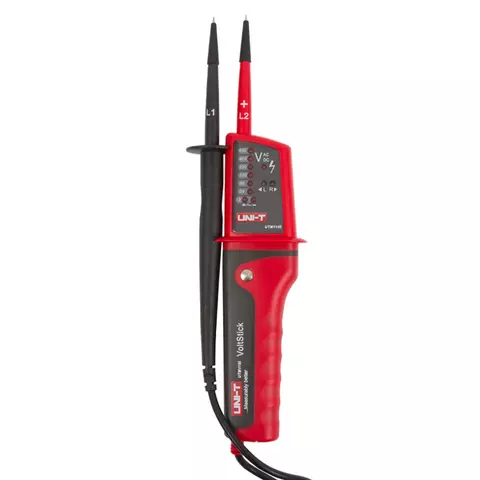

Multifunction Voltage Tester UNI-T UT15A
Overview
Description
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
0.55 kg Warranty: 24 months
A device for AC/DC voltage, phase rotation tests, for positive and negative polarity and single lead (L2) voltage detection.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

UNI-T UT15A Multifunction Voltage Tester is used for AC/DC voltage, phase rotation tests, for positive and negative polarity and single lead (L2) voltage detection.

Features

  • Functions:
    • AC/DC voltage measurements
    • phase rotation test
    • single lead (L2) voltage detection
  • Autoranging
  • Low battery indication
  • Positive and negative polarity detection
  • Torch

Video

Youtube video

UNI-T UT15x Comparative Specifications

Model UT15A UT15B UT15C
Short circuit detection no yes yes
Display no no LCD display (AC/DC),
24V to 690V: ±(3%+5)

Technical Specifications

Voltage steps (AC/DC) 12V: between 0 to 12V LED will illuminate
24V: between 19V ± 2V LED will illuminate
50V: between 48V ± 6V LED will illuminate
120V: between 110V ± 20V LED will illuminate
230V: between 200V ± 20V LED will illuminate
400V: between 340V ± 30V LED will illuminate
690V: between 520V ± 30V LED will illuminate
Phase rotation test 50Hz to 60Hz
Single lead (L2) voltage detection It is intended only as a quick check.
100V to 690V
50Hz to 400Hz
Power 1.5V Battery (AAA) × 2
Dimensions (H × W × D), mm 275 × 51 × 30
Weight, g 210

Package Contents

  • Voltage tester UT15A
  • Battery
  • User manual
Read more
Description

UNI-T UT15A Multifunction Voltage Tester is used for AC/DC voltage, phase rotation tests, for positive and negative polarity and single lead (L2) voltage detection.

Features

  • Functions:
    • AC/DC voltage measurements
    • phase rotation test
    • single lead (L2) voltage detection
  • Autoranging
  • Low battery indication
  • Positive and negative polarity detection
  • Torch

Video

Youtube video

UNI-T UT15x Comparative Specifications

Model UT15A UT15B UT15C
Short circuit detection no yes yes
Display no no LCD display (AC/DC),
24V to 690V: ±(3%+5)

Technical Specifications

Voltage steps (AC/DC) 12V: between 0 to 12V LED will illuminate
24V: between 19V ± 2V LED will illuminate
50V: between 48V ± 6V LED will illuminate
120V: between 110V ± 20V LED will illuminate
230V: between 200V ± 20V LED will illuminate
400V: between 340V ± 30V LED will illuminate
690V: between 520V ± 30V LED will illuminate
Phase rotation test 50Hz to 60Hz
Single lead (L2) voltage detection It is intended only as a quick check.
100V to 690V
50Hz to 400Hz
Power 1.5V Battery (AAA) × 2
Dimensions (H × W × D), mm 275 × 51 × 30
Weight, g 210

Package Contents

  • Voltage tester UT15A
  • Battery
  • User manual
