Network Toner & Probe Kit Pro'sKit MT-7068

id: 843316
1 kg Warranty: 6 month (s)
Toner and Probe Kit to validate and troubleshoot wiring in telecommunication, networking, datacom, audio/video, cable TV, etc.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

Pro'sKit MT-7068 telecommunication network tester is a multi-function device for service works in telecommunication, networking, datacom, audio/video, cable TV, as well as for cable network outdoor maintenance. It may be used for coaxial cable testing, twisted-pair cable testing (continuity, shorting and wire transposition), as well as USB cable and internet connection testing. Due to the sensitive receiver a certain wire in a group of network cables may be traced. The process is followed by LED and sound indication.

Pro'sKit MT-7068 – Features

  • The kit includes Toner and Probe.
  • The tester is capable of:
    • Locating hidden cables;
    • Needed cable location;
    • Continuity test;
    • Twisted-pair cable damage location;
    • Telephone line polarity tets;
    • Internet connection test.

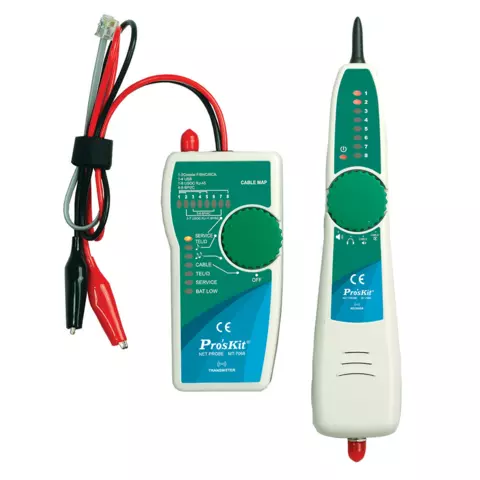

MT-7068

Pro'sKit MT-7068 – Technical Specifications

Toner

Frequency 1 kHz
Tone mode One/Two-note tone
Output voltage 15.5 V
Compatible connectors RJ-45/RJ-11/USB/F/BNC/RCA/Alligator Clips
Cable continuity test <300 Ω
Talk battery voltage 6 V, 600 Ω
Function selection 5-position rotary switch
Cable map indication 8 LED indicators
Overvoltage protection up to 100 V
Low battery display 6,5 V
Power 9 V (6F22)
Dimensions 140 × 70 × 30 mm
Weight 203 g (with battery)

Receiver

Frequency 1 kHz
Compatible connectors RJ-45/RJ-11/USB/F/BNC/RCA
Ear jack 1
Function selection 5-position rotary switch
Cable map indication 88 LED indicators
Low battery display 6,5 V
Power 9 V (6F22)
Dimensions 250 × 52 × 33 mm
Weight 180 g (with battery)

Pro'sKit MT-7068 – Package Contents

  • Toner – 1 pc.
  • Receiver – 1 pc.
  • Adapters for BNC connectors – 2 pcs.
  • Adapters for RCA connectors – 2 pcs.
  • RJ45 connectors – 2 pcs.
  • RJ11 connectors – 1 pc.
  • Bag – 1 pc.
Specifications
Cable length measurement
  • not available
USB Cable Testing
  • available
Twisted pair cable testing
  • available
Coaxial cable testing
  • available
Locator function
  • available
