Overview
0.4 kg Warranty: 6 months
Designed for locating and verifying the cable status and wiring troubleshooting (RJ45, RJ11, coaxial, alligator clips). Read more
Price coming soon
Description

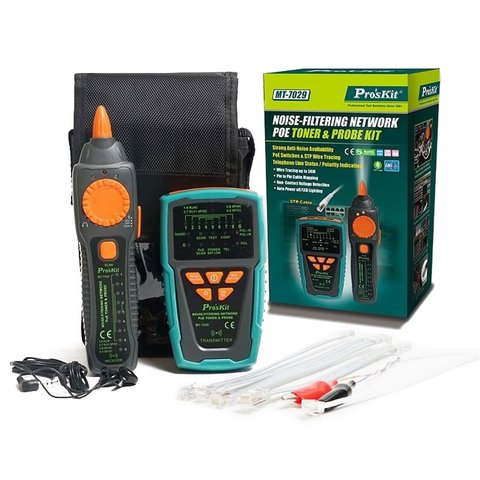

Pro'sKit MT-7029 is a network toner and probe kit designed for locating and verifying the cable status and wiring troubleshooting. It is perfect for all installation and maintenance fields of telecommunication, networking, cable TV, etc.
Features
- Strong noise protection
- PoE switches & STP wire tracing up to 3 km
- Cable mapping and status indication up to 300 m
- Non-contact voltage detection
- Telephone line status/polarity indication
- Auto power off
- Low battery display
Technical Specifications
Toner
Cable types
RJ45 (UTP/STP), RJ11 (2/4/6 pin), coaxial, alligator clips
Tone frequency
130 kHz
Tone mode
Single tone
Max. distance of transmission
≧3 km
Max. distance of cable map
300 m
Max. signal voltage
8 Vp-p
Short/continuity test
1 LED
Cable map indication
8 LEDs
Phone line status/polarity indication
1 dual color LED
Low battery indication
6.5 V (power LED flashes)
Auto power off
1 hour
Voltage protection
DC 48 V
Battery
DC 9 V (NEDA 1604/6F22)
Dimensions (l × w × h)
138 × 80 × 35 mm
Weight
140 g
Receiver
Frequency
130 kHz
Compatible connectors
RJ45 (8 pin)/RJ11 (6 pin)
Signal status indication
1 LED and buzzer, built-in headphone jack
Battery type
DC 9.0 V (NEDA 1604/6F22 × 1 pc.)
Dimensions
203 × 50 × 32 mm
Package Contents
- Toner – 1 pc.
- Receiver – 1 pc.
- RJ45 cable adapter – 1 pc.
- RJ11 cable adapter – 1 pc.
- RJ11 to alligator clips adapter – 1 pc.
- Bag – 1 pc.
- User manual – 1 pc.
| Cable types | RJ45 (UTP/STP), RJ11 (2/4/6 pin), coaxial, alligator clips |
| Tone frequency | 130 kHz |
| Tone mode | Single tone |
| Max. distance of transmission | ≧3 km |
| Max. distance of cable map | 300 m |
| Max. signal voltage | 8 Vp-p |
| Short/continuity test | 1 LED |
| Cable map indication | 8 LEDs |
| Phone line status/polarity indication | 1 dual color LED |
| Low battery indication | 6.5 V (power LED flashes) |
| Auto power off | 1 hour |
| Voltage protection | DC 48 V |
| Battery | DC 9 V (NEDA 1604/6F22) |
| Dimensions (l × w × h) | 138 × 80 × 35 mm |
| Weight | 140 g |
| Frequency | 130 kHz |
| Compatible connectors | RJ45 (8 pin)/RJ11 (6 pin) |
| Signal status indication | 1 LED and buzzer, built-in headphone jack |
| Battery type | DC 9.0 V (NEDA 1604/6F22 × 1 pc.) |
| Dimensions | 203 × 50 × 32 mm |
Package Contents
- Toner – 1 pc.
- Receiver – 1 pc.
- RJ45 cable adapter – 1 pc.
- RJ11 cable adapter – 1 pc.
- RJ11 to alligator clips adapter – 1 pc.
- Bag – 1 pc.
- User manual – 1 pc.
Specifications
| Cable length measurement |
|
| USB Cable Testing |
|
| Twisted pair cable testing |
|
| Coaxial cable testing |
|
| Locator function |
|
