Overview
Non-contact AC voltage detectors features high (90 V~1000 V) and low (24 V~1000 V) voltage modes. Read more
Description

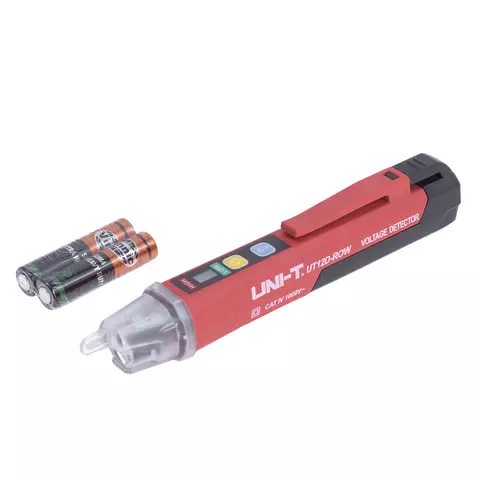

UNI-T UT12D-ROW is a non-contact AC voltage detectors which features high (90 V~1000 V) and low (24 V~1000 V) voltage modes.
In low voltage mode, the device is used with a low-voltage motor (<90V), audio systems, arc welding machines, underground mining lighting, cables with a thick insulation layer, and other weak electromagnetic AC signals.
In high voltage mode, the device is used while working with urban electric supply and three-phase systems (90~1000V). For example, power distribution units, electrical panels, electrical appliances.
Features
- Auto power off.
- Audible (buzzer) and visual (LED) indication.
- Built-in flashlight.
- AC voltage detection.
- High/Low voltage mode.
- Low battery indication..
Technical Specifications
| AC voltage (Low) | 24 V ~ 1000 V |
| AC voltage (High) | 90 V ~ 1000 V |
| Frequency range | 50/60 Hz |
| Drop test | 1 m |
| Power | 1.5V battery (R03) × 2 pcs. |
| Dimensions | 150 mm × 18 mm × 23 mm |
| Weight | 50 g |

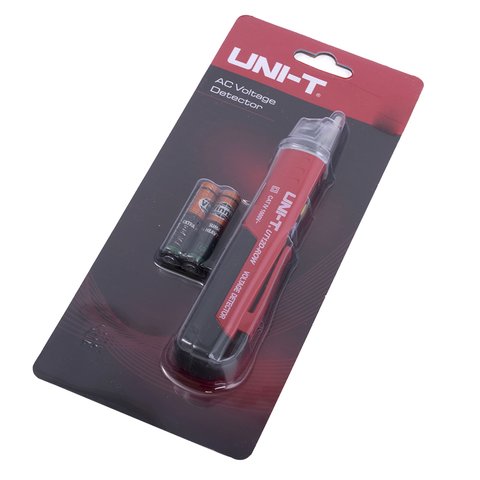

Package Contents
- Non-Contact AC Voltage Detector UNI-T UT12D-ROW — 1 pc.
- Batteries — 2 pcs.
- User Manual — 1 pc.
