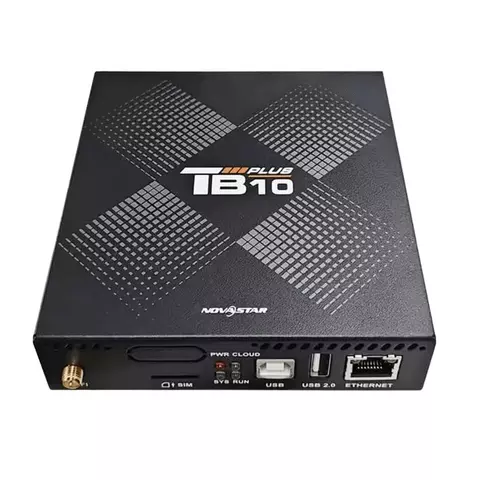

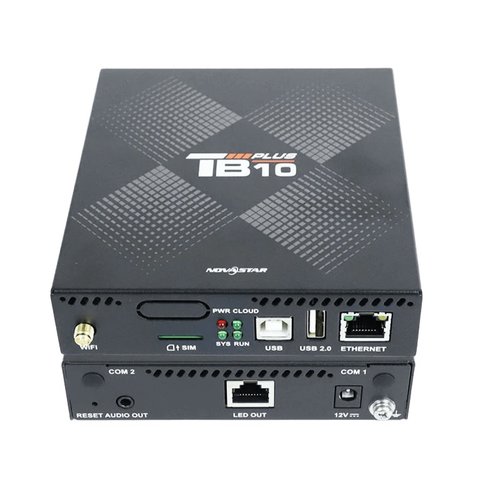

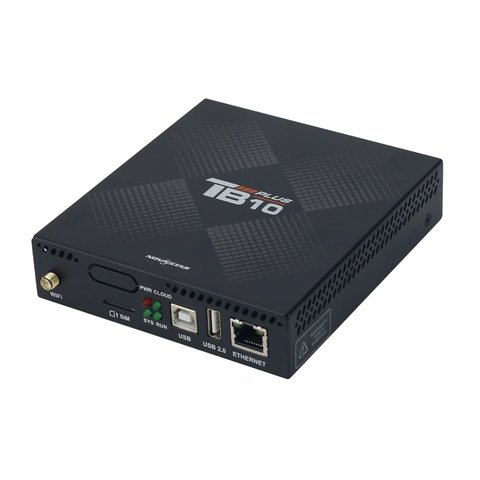

Novastar TB10Plus LED Display Module Controller (650 000 pxl, Wi-Fi)
id: 928289
Novastar TB10Plus LED Display Module Controller (650 000 pxl, Wi-Fi)
Overview
Description
Delivery
Payment
Warranty
USD 70.00
Overview
New
1 kg Warranty: 12 months
Multimedia player with a loading capacity of up to 650,000 pixels. Video playback: 1 × 4K / 3 × 1080P / 8 × 720P / 16 × 480P / 20 × 360P. Memory: 32 GB + 2 GB (RAM) Read more
USD 70.00
Buy wholesale and save
Description
Novastar TB10 Plus is a new generation asynchronous mode multimedia player for full-color LED displays, combining autonomous playback, PC-free content transfer, and remote screen control (via a computer, smartphone, or tablet) capabilities.
The controller interfaces with Novastar cloud-based publishing and monitoring platforms, enabling display management from anywhere in the world.
Standard applications cover facade and interior LED screens, signage, bollard displays, retail chain screens, advertising installations, door LED screens, rack displays, etc.
Features
- PC-free content transmission and playback: fast data processing, smooth, uninterrupted content playback
- Controllable via phone / tablet / computer
- Cloud management and monitoring support
- 4K video hardware decoding support
- Playback of content from a USB storage device
- 4G module installation capability
- Simultaneous playback on multiple screens
- Parallel Wi-Fi AP/Wi-Fi STA operation
- Multi-level security system: device authentication, player verification
- Compatible with ultra-wide LED screens
- Stable operation of round-the-clock installations
- One-year warranty period
Technical Specifications
| Max. loading capacity | up to 650,000 pixels |
| Maximum width / height | 8192 / 2048 pixels |
| Video playback | 1 × 4K |
| 3 × 1080P | |
| 8 × 720P | |
| 16 × 480P | |
| 20 × 360P | |
| Formats | Video: H.265, H.264, MPEG-4, VP9, MJPEG, AVS2, H.263, VP8, MPEG-2, MPEG-1, VC-1, Sorenson Spark, CAVS |
| Images (4096 × 2304 pixels): BMP, GIF, JPG, JPEG, PNG | |
| Memory | Internal: 32 GB |
| RAM: 2 GB | |
| Interfaces | Gigabit Ethernet OUT port – data transfer to receiver cards × 1 |
| 3.5 mm stereo audio output × 1 | |
| Control ports | USB 2.0 (Type A) × 1 |
| USB (Type B) × 1 | |
| Fast Ethernet × 1 | |
| CPU | ARM Cortex-A53 4 Core (1.4 GHz) |
| Power supply | 5 – 12 V DC |
| Max. power consumption | 15 W |
| Temperature | operation: -20°C … +60°C / humidity: 5 – 85% (non-condensing) |
| storage: -40°C … +80°C / humidity: 5 – 95% (non-condensing) | |
| IP code | IP20 |
| Certification | CE, FCC, IC, CQC |
| Dimensions | Controller: 141.2 × 120 × 33.5 mm |
| Packaging: 333 × 196 × 70 mm | |
| Weight | net: 465 g |
| gross: 771 g |
Downloads
Download Technical Data Sheet Novastar TB10Plus
Package Contents
- Novastar TB10Plus controller — 1 pc.
- Power adapter — 1 pc.
- Wi-Fi antenna — 1 pc.
- Mounting racks — 2 pc.
- Phillips countersunk head screws — 4 pc.
- User guide — 1 pc.
- Certificate of conformity — 1 pc.
