Optical Fiber Fusion Splicer Signalfire AI-8C
Overview
Description

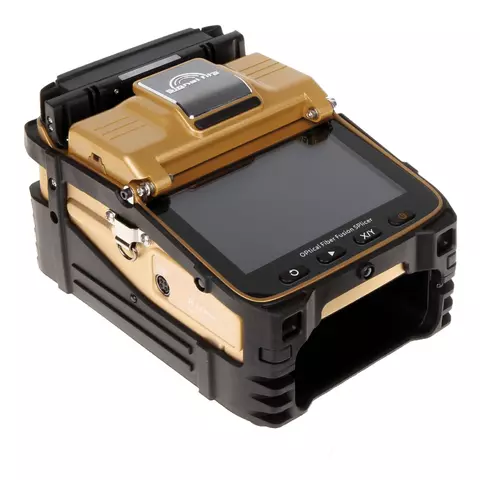

Signalfire AI-8C uses the latest core alignment technology with autofocus and six motors, making it a new generation of fiber fusion splicer. It is fully qualified for trunk construction over medium and short distances, FTTH projects, security monitoring, and other fiber cable splicing projects. The machine features an industrial quad-core CPU for fast response and is currently one of the fastest fiber splicing machines on the market. It comes with a 5-inch 800x480 high-resolution screen for simple and intuitive operation and provides up to 300 times focus magnification, making it easy to observe the fiber with the naked eye. It offers 6-second core alignment splicing and 15-second heating, increasing working efficiency by 50% compared to ordinary splicing machines. Even under rigorous testing conditions, the performance remains outstanding.
The toolbox is small, exquisite, and durable, featuring a unique bench design. The operating platform design reflects humanistic care, with a unique lighting design that is convenient for nighttime construction or repair. The screen brightness is adjustable for convenient outdoor operation in sunny environments. The core components use imported brands, and the aviation metal body material features exquisite details. Through the combination of advanced technology and design, this new-generation optical fiber fusion splicer delivers a reliable and comfortable user experience.
Features
- Six motors, core alignment
- 6 seconds fast splicing
- 15 seconds fast heating
- Disassembly-free three-in-one fiber holder (for SM, MM, bare fiber, pigtail, rubber-insulated, multi-fiber cable)
- 7800 mAh large-capacity battery (charging time ≤ 3.5 hours/continuous splicing and heating about 240 times)
- Automatic heating
- 300 times magnification with autofocus
- 5-inch display; simultaneously align fibers; loss display
- Protective case
- There is no need to take out the splicer machine from the toolbox while working
- A stool can bear 100 kg
- Built-in lightning, convenient for night operation
- Charges smartphones
- Shows good performance in plateaus, deserts, and freezing environments
Technical Specifications
| Fiber Alignment | core/cladding |
| Motor Number | 6 motors |
| Typical Splicing Time | 6 s |
| Typical Heating Time | 15 s, can be customized according to the external environment |
| Applicable Fibers | SM(G.652&G.657), MM(G.651), DS(G.657), NZDS(G.655） |
| Cladding Diameter | 80-150 μm |
| Splice Loss | SM: 0.02 dB, MM: 0.01 dB, DS/NZDS: 0.04 dB |
| Splicing Mode | conventional/high precision |
| Splicing Way | automatic, semi-automatic |
| Fiber Holder | three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable |
| Battery Capacity | 7800 mAh large capacity lithium battery, charging time ≤3.5; can continuously weld and heat about 260 cores |
| Magnification | 300x (X or Y axis single display) 150x (x and Y axis dual display) |
| Fiber Diameter | coating diameter: 80-150 μm/coating diameter: 100-1000 μm |
| Cutting Length | coating layer 250 μm below: 8-16 mm/coating layer 250-1000 μm: 16 mm |
| Heat Shrink Tube | 60 mm, 50 mm, 40 mm, 25 mm |
| Tensile Testing | standard 2N |
| Display | 5" TFT color |
| External Lighting | USB port can be connected with EXTERNAL LED light, convenient for night construction |
| Charge Mobile Device | the USB port can charge mobile devices such as mobile phones |
| Boot Time | 1 s, boot can enter the working mode |
| Data Storage | unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data |
| Wireless Communication | based on Bluetooth 4.2 protocol standard, the working band is 2.4 GHz, the maximum transmission range is 60 m |
| Software Upgrade | mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software |
| Interface | USB2.0 (Type A) can be used to connect external LED lights and charge mobile devices |
| Return Loss | better than 60 db |
| Product Protection | waterproof, dustproof and fall proof |
| Power Supply | input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level |
| Dimensions | machine: 135 mm × 198 mm × 122 mm toolbox: 270 mm × 237 mm × 293 mm packaging: 335 mm × 360 mm × 390 mm |
| Weight | machine: 2.08 kg (with battery), 1.60 kg (without battery) toolbox: 7.1 kg (including machine and accessories) total: 8.40 kg |
| Work Environment | temperature: -15 ~ +50℃ |
| humidity: < 95% RH (no condensation) | |
| working altitude: 0 ~ 5000 m | |
| maximum wind speed: ≤15 m/s |
Package Contents
- Fusion Splicer Kit Signalfire AI-8C — 1 pc.
- Toolcase — 1 pc.
- Spare Electrodes — 1 set.
- Fiber Cleaver S09 — 1 pc.
- Wire Stripping Pliers — 1 pc.
- Miller Stripper — 1 pc.
- Toolbox Strap — 1 pc.
- Belt — 1 pc.
- Alcohol Bottle — 1 pc.
- Brush — 1 pc.
- Power Adapter — 1 pc.
- Hex Key — 1 set.
- Fiber for ARC Calibration — 1 set.
- User Manual — 1 pc.
- Warranty Card — 1 pc.
