Optical Time Domain Reflectometer AFL FS200-300-BAS-P0-W1 - FS200 OTDR Basic Kit
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 4298.00
Overview
Video
Video
Video
Video
1 kg
Availability in stock:
HK
All-in-one solution for detecting, identifying, locating, and resolving single-mode optical network issues. Wavelength: 1310/1550 nm, dynamic range:37/36 dB. Read more
USD 4298.00
Note! This item is shipped within 10 working days.
Description

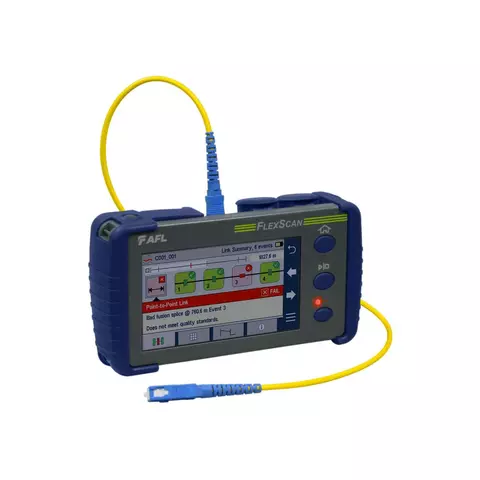

AFL FS200-300-BAS-P0-W1 - FS200 OTDR Basic Kit is an all-in-one solution for detecting, identifying, locating, and resolving single-mode optical network issues. It is designed for both novice and expert technicians working in a range of environments, from FTTH PON to point-to-point networks. It applies industry-standard or user-set pass/fail criteria and displays results using LinkMap color-coded icons that immediately show the health of the network. The FlexScan FS200 automates test setup, shortens test time, and simplifies result interpretation, improving efficiency and reducing costs.
Features
- 1310/1550 nm wavelengths, 37/36 dB dynamic range.
- FleXpress® mode completes OTDR tests in <5 seconds.
- Test up to 1:64 PON with a 25-m PON dead zone.
- Easy-to-understand LinkMap® results with pass/fail indications.
- Single, dual, or triple wavelength single-mode.
- Single port for in- and out-of-service OTDR tests.
- Integrated VFL (visual fault locator).
- With WiFi / Bluetooth.
- Integrated MPO switch control via USB.
- Rugged, lightweight, and hand-held for field use.
Application

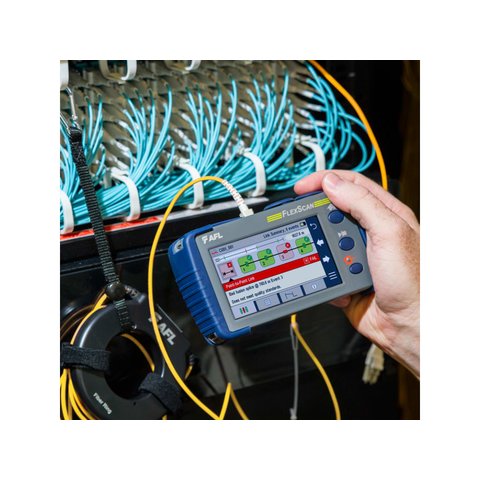

- PON, or point-to-point network verification or troubleshooting
- OTDR testing plus insertion loss and power measurements
- Locate faults exceeding industry or user pass/fail thresholds
- Visually pinpoint the location of macro-bends or breaks.
Technical Specifications
| Emitter Type | Laser |
| Safety Class | Class I |
| Fiber Type | Single-mode |
| Wavelengths (nm) | 1310/1550 |
| Center λ Tolerance | ±20 nm (CW mode) |
| Dynamic Range (dB) | 37/36 |
| Event Dead Zone (m) | 0.8 |
| Atten. Dead Zone (m) | 3.5 |
| PON Dead Zone (m) | 25/25 |
| Pulse Widths | 3, 5, 10, 20, 30, 50, 100, 200, 300, 500 ns; 1, 2, 3, 10 µs; 20 µs |
| Range Settings | 250 m to 240 km |
| Data Points | Up to 300,000 (Expert mode .SOR file) |
| Data Spacing | 5 cm to 16 m |
| Group Index of Refraction | 1.3000 to 1.7000 |
| Distance Uncertainty (m) | ±(1 + 0.003% x distance + data point spacing) |
| Linearity (dB/dB) | ±0.05 |
| Trace File Format | Telcordia SR-4731 Issue 2 compatible .SOR |
| Trace File Storage Medium | 4 GB internal memory (>5000 traces typical); External USB memory stick |
| Data Transfer to PC | USB cable or Bluetooth® or WiFi (option) |
| Standard OTDR Modes | SmartAuto, Expert, Real Time |
| Display Modes | LinkMap Summary, LinkMap Events, Trace |
| FleXpress Fast Test | Yes |
| Real-time Refresh Rate | Up to 4 Hz |
| Live Fiber Protection | No OTDR damage with input power ≤ +15 dBm for wavelength(s) in range 1260 to 1675 nm |
| Live Fiber Detection | Reports live fiber with input signal ≥ -35 dBm for wavelength(s) in range 1260 to 1675 nm |
| Live PON Filter Isolation | >50 dB for wavelength(s) in range 1260 to 1600 nm |
| Live PON OTDR Test | 1650 nm using filtered detector |
| VISUAL FAULT LOCATOR (VFL) | |
|---|---|
| Emitter Type | Visible red laser, 650 ±20 nm |
| Safety Class | Class II |
| Output Power (nominal) | 0.8 mW into single-mode fiber |
| Modes | CW, 2 Hz flashing |
| General Specifications | |
| Dimensions | 86 mm × 160 mm × 43 mm |
| Weight | 0.4 kg |
| Working Temperature | -10 °C to +50 °C, 0 to 95 % RH (non-condensing) |
| Storage Temperature | -40 °C to +70 °C, 0 to 95 % RH (non-condensing) |
| Power | Rechargeable Li-Pol or AC adapter |
| Battery Life | >12 hours, Telcordia test conditions |
| Display | 4.3 in color touchscreen LCD, 480 × 272, backlit |
| USB Ports | 1 host; 1 micro-USB function |
Video
User Manual
Download AFL FS200-300-BAS-P0-W1 - FS200 OTDR Basic Kit.
Package Contents
- Optical Time Domain Reflectometer AFL FS200-300-BAS-P0-W1 - FS200 OTDR Basic Kit — 1 pc.
- Wrist Strap — 1 pc.
- Soft Carry Case — 1 pc.
- Quick Reference Guide — 1 pc.
- TRM 2.0 Basic Test Results Manager Software — 1 pc.
