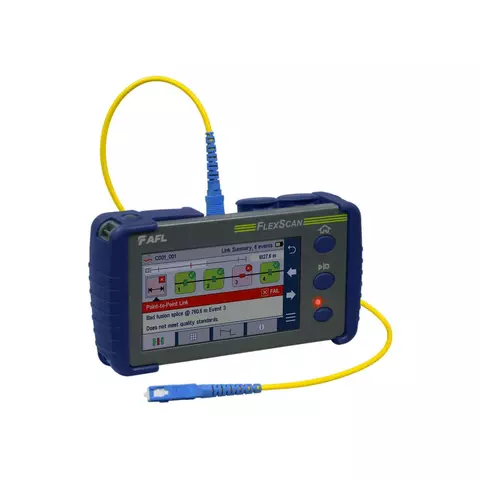

Optical Time Domain Reflectometer AFL FS200-304-BAS-P1-W1 - FS200
The AFL FS200-304-BAS-P1-W1 - FS200 OTDR combines SmartAuto network-optimized event detection and analysis with its intuitive LinkMap view of the tested network, enabling even novice technicians to quickly and easily troubleshoot or fully characterize optical fiber networks. After applying industry-standard or user-set pass/fail criteria, the network is displayed using an intuitive, icon-based LinkMap view. Acquired results may be stored internally or externally. This device automates test setup, shortens test time, and simplifies result interpretation, improving efficiency and reducing the cost of testing.
Measuring 86 mm x 160 mm x 43 mm and weighing less than one kilogram, the OTDR fits easily into your pocket, yet has a large touchscreen display that's bright enough for both indoor and outdoor use.
With an integrated source, power meter, and VFL, this OTR offers an all-in one solution, ensuring technicians have everything they need to locate and resolve optical network issues. Uploaded results may be viewed, and reports may be generated using the included Windows-compatible software.
Features
- 1310/1550/1650 nm wavelengths, 37/36/37 dB dynamic range.
- FleXpress® mode completes OTDR tests in <5 seconds.
- Test up to 1:64 PON with a 25-m PON dead zone.
- Easy-to-understand LinkMap® results with pass/fail indications.
- Single, dual, or triple wavelength single-mode.
- Single port for in- and out-of-service OTDR tests.
- Integrated optical light source, power meter, VFL (visual fault locator).
- With WiFi / Bluetooth.
- Integrated MPO switch control via USB.
- Rugged, lightweight, and hand-held for field use.
Application
- PON, or point-to-point network verification or troubleshooting.
- OTDR testing plus insertion loss and power measurements.
- Locate faults exceeding industry or user pass/fail thresholds.
- Visually pinpoint the location of macro-bends or breaks.
Technical Specifications
| Emitter Type | Laser |
| Safety Class | Class I |
| Fiber Type | Single-mode |
| Wavelengths (nm) | 1310/1550/1650 |
| Center λ Tolerance | ±20 nm (CW mode) |
| Dynamic Range (dB) | 37/36/37 |
| Event Dead Zone (m) | 0.8 |
| Atten. Dead Zone (m) | 3.5 |
| PON Dead Zone (m) | 25/25/30 |
| Pulse Widths | 3, 5, 10, 20, 30, 50, 100, 200, 300, 500 ns; 1, 2, 3, 10 µs; 20 µs |
| Range Settings | 250 m to 240 km |
| Data Points | Up to 300,000 (Expert mode .SOR file) |
| Data Spacing | 5 cm to 16 m |
| Group Index of Refraction | 1.3000 to 1.7000 |
| Distance Uncertainty (m) | ±(1 + 0.003% x distance + data point spacing) |
| Linearity (dB/dB) | ±0.05 |
| Trace File Format | Telcordia SR-4731 Issue 2 compatible .SOR |
| Trace File Storage Medium | 4 GB internal memory (>5000 traces typical); External USB memory stick |
| Data Transfer to PC | USB cable or Bluetooth® or WiFi (option) |
| Standard OTDR Modes | SmartAuto, Expert, Real Time |
| Display Modes | LinkMap Summary, LinkMap Events, Trace |
| FleXpress Fast Test | Yes |
| Real-time Refresh Rate | Up to 4 Hz |
| Live Fiber Protection | No OTDR damage with input power ≤ +15 dBm for wavelength(s) in range 1260 to 1675 nm |
| Live Fiber Detection | Reports live fiber with input signal ≥ -35 dBm for wavelength(s) in range 1260 to 1675 nm |
| Live PON Filter Isolation | >50 dB for wavelength(s) in range 1260 to 1600 nm |
| Live PON OTDR Test | 1650 nm using filtered detector |
| VISUAL FAULT LOCATOR (VFL) | |
|---|---|
| Emitter Type | Visible red laser, 650 ±20 nm |
| Safety Class | Class II |
| Output Power (nominal) | 0.8 mW into single-mode fiber |
| Modes | CW, 2 Hz flashing |
| OPTICAL LASER SOURCE (OLS) | |
| Emitter Type | Laser |
| Safety Class | Class I |
| Fiber Type | Single-mode |
| Wavelengths | 1310/1550 nm |
| Center λ Tolerance | ±20 nm (CW mode) |
| Spectral Width (FWHM) | 5 nm (maximum) |
| Internal Modulation | 270 Hz, 330 Hz, 1 kHz, 2 kHz, CW, Wave ID |
| Wave ID | Compatible with AFL OPM/OLS |
| Output Power Stability | ≤ ±0.1 dB (15 minutes); ≤ ±0.15 dB (8 hours) |
| Output Power | -3 dBm ±1.5 dB |
| OPTICAL POWER METER (OPM) | |
| Calibrated Wavelengths | 1310, 1490, 1550, 1625, 1650 nm |
| Detector Type | InGaAs, 1 mm diameter |
| Measurement Range | +23 to -50 dBm |
| Tone Detect Range | +3 to -35 dBm |
| Wavelength ID Range | +3 to -35 dBm |
| Accuracy | ±0.25 dB |
| Resolution | 0.01 dB |
| Measurement Units | dB, dBm or Watts (nW, µW, mW) |
| General Specifications | |
| Dimensions | 86 mm × 160 mm × 43 mm |
| Weight | 0.4 kg |
| Working Temperature | -10 °C to +50 °C, 0 to 95 % RH (non-condensing) |
| Storage Temperature | -40 °C to +70 °C, 0 to 95 % RH (non-condensing) |
| Power | Rechargeable Li-Pol or AC adapter |
| Battery Life | >12 hours, Telcordia test conditions |
| Display | 4.3 in color touchscreen LCD, 480 × 272, backlit |
| USB Ports | 1 host; 1 micro-USB function |
Video
User Manual
Download AFL FS200-304-BAS-P1-W1 - FS200 User Manual.
Package Contents
- Optical Time Domain Reflectometer AFL FS200-304-BAS-P1-W1 - FS200 — 1 pc.
- Wrist Strap — 1 pc.
- Soft Carry Case — 1 pc.
- Quick Reference Guide — 1 pc.
- TRM 2.0 Basic Test Results Manager software — 1 pc.
