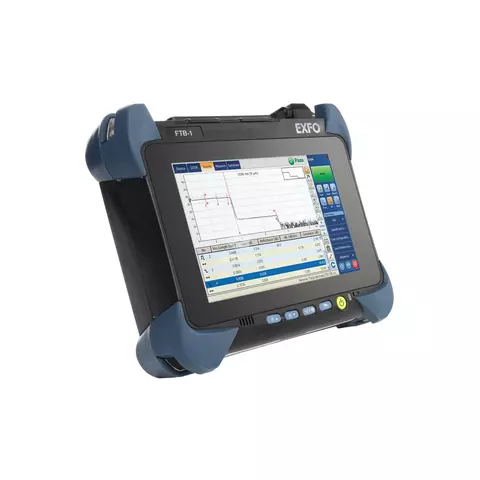

Optical Time Domain Reflectometer EXFO FTB-1v2-720C-SM1

id: 872451
Made in Canada
10 kg 110, 220 V
Availability in stock: HK
Warranty: 12 month (s)
A powerful compact unit designed to carry out dedicated optical, Ethernet and multi service tests simply and efficiently.
USD 4499.00
Add to cart
USD 4499.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Specifications
Delivery
Payment
Warranty
Overview

EXFO FTB-1v2-720C-SM1optical time domain reflectometer allows for easy assessment of the overall attenuation of the fiber, troubleshooting of access/FTTx, as well as for local network testing.

Ordering Information

If you want to buy additional options for your OTDR, please choose them from the list below and contact our sales manager.

Ordering Information

Features

  • Equipped with tools and third-party applications needed to optimize testing.
  • Compact and lightweight device suitable for field work.
  • Automated asset management – data goes through the cloud and into a dynamic database.
  • High dynamic range and short dead zone.
  • Large internal memory.
  • Replaceable lithium battery.
  • Transflective color display for clear viewing of results under bright sunlight.

Technical Specifications

Wavelength 1310 ±20/1550 ±20 nm
Dynamic range 36/34 dB
Loss threshold 0.01 dB
Loss resolution 0.01 dB
Typical real-time refresh 4 Hz
Data storage 64 GB internal memory (flash)
LCD type 8-inch Multitouch TFT color display (1280 × 800)
Interface USB, RJ45, Micro SD, 3.5 mm jack
Battery built-in rechargeable Li-ion battery
Power AC/DC adapter input 100-240 V
Operating temperature 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature –40 °C to 70 °C (–40 °F to 158 °F)
Size 254 × 210 × 66 mm
Weight 1.5 kg (3.3 lb)

Data Sheet

PDF  Download EXFO FTB-1v2-720C-SM1 Optical Time Domain Reflectometer Platform Data Sheet.

Package Contents

  • Optical Time Domain Reflectometer Unit EXFO FTB-1v2-720C-SM1 – 1 pc.
  • Battery – 1 pc.
  • Power adapter/charger – 1 pc.
  • CD with Software – 1 pc.
  • User Manual – 1 pc.
Specifications
Dynamic range
  • 34 dB
  • 36 dB
Wave length
  • 1310 nm
  • 1550 nm
Fiber type
  • singlemode
