Optical Time Domain Reflectometer EXFO MAX-720C-SM2

id: 920104
Optical Time Domain Reflectometer EXFO MAX-720C-SM2
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 5820.00

Overview

New
3.6 kg
Availability in stock: HK
Wavelength: 850±20/1300±20/1310±20/1550±20/1625±10 nm. Dynamic range: 27/29/36/35/35 dB. Event dead zone: SM 0.7 m; MM 0.5 m. Attenuation dead zone: SM 3 m; MM 2.5 m Read more
USD 5820.00
USD 5820.00
Impossible to estimate the shipping cost

Description

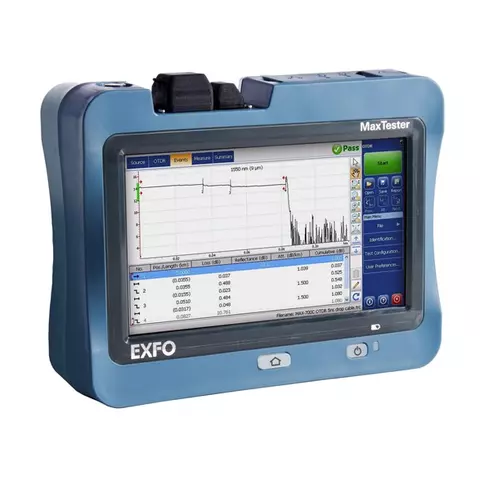

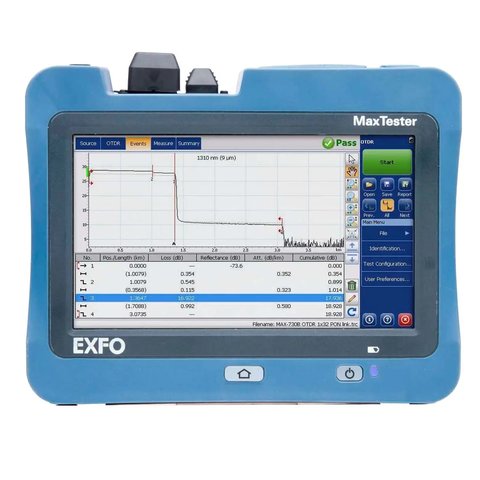

EXFO Maxtester MAX-720C-SM2 is a powerful lightweight handy OTDR with 7-inch outdoor-enhanced touchscreen display, tablet-inspired design, 12-hour battery operation, rugged design for outdoor operation.

EXFO Maxtester MAX-720C may be supplied with iOLM software: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task

Features

  • Handy, lightweight, powerful, tablet-inspired design.
  • Wavelength: 850 ± 20/1300 ± 20/1310 ± 20/1550 ± 20/1625 ± 10 nm
  • Test fiber type: SM (singlemode), MM (multimode)
  • 7-inch, outdoor-enhanced touchscreen.
  • 12-hour autonomous operation.
  • Dynamic range of up to 27/29/36/35/35 dB
  • Fully featured and integrated field test solution.

Technical Specifications

Wavelength 850 ± 20/1300 ± 20/1310 ± 20/1550 ± 20/1625 ± 10 nm
Dynamic range 27/29/36/35/35 dB
Event dead zone singlemode: 0.7 m; multimode: 0.5 m
Attenuation dead zone singlemode: 3 m; multimode: 2.5 m
PON dead zone 35 m
Distance range multimode: 0.1 to 40 km; singlemode: 0.1 to 260 km
Pulse width multimode: 3 to 1000 ns; singlemode: 3 to 20 000 ns
Launch conditions EF-compliant
Linearity ±0,03 dB
Loss threshold 0.01 dB
Loss resolution 0.001 dB
Sampling resolution multimode: 0.04 to 5 m; singlemode: 0.04 to 10 m
Sampling points up to 256 000
Distance uncertainty ±(0.75 m + 0.005 % × distance + sampling resolution)
Measurement time user-defined
Reflectance accuracy ±2 dB
Typical real-time refresh 4 Hz
Display 7-in (178-mm) outdoor-enhanced touchscreen, 800 × 480 TFT
Interfaces Two USB 2.0 ports
RJ45 LAN 10/100 Mbit/s
Storage 2 GB internal memory (20 000 OTDR traces, typical)
Batteries rechargeable lithium-polymer battery (12 hours of operation)
Power supply power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz
Operating temperature –10 °C to 50 °C (14 °F to 122 °F)
Storage temperature –40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity 0 % to 95 % non-condensing
Dimensions (H × W × D) 166 mm × 200 mm × 68 mm
Weight (with battery) 1.5 kg

Package Contents

  • Optical Time Domain Reflectometer EXFO Maxtester MAX-720C-SM2 — 1 pc.

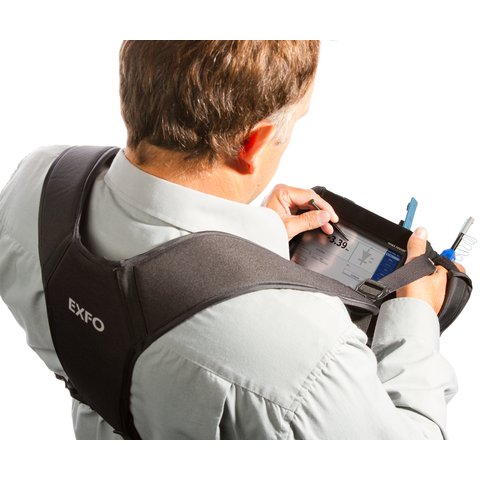

  • Hand Strap — 1 pc.
  • Battery — 1 pc.
  • 20 W Power Supply — 1 pc.
  • Soft Carrying Case — 1 pc.
  • Stylus — 1 pc.
  • Calibration Certificate — 1 pc.
  • CD — 1 pc.

Specifications

Wave length
  • 1310 nm
  • 1550 nm
  • 1625 nm
Fiber type
  • singlemode
  • multimode
Dynamic range
  • 35 dB
