Optical Time Domain Reflectometer EXFO MAX-730B-M2
id: 907415
Optical Time Domain Reflectometer EXFO MAX-730B-M2
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
Made in Canada
7 kg Warranty: 12 months
Dynamic range 39/37/37 dB. Dead zones: EDZ 0.8 m, ADZ 3.5 m. Optimized for testing FTTH (PON) networks through splitters up to 1×128. Read more
Discontinued
You may also like
Description

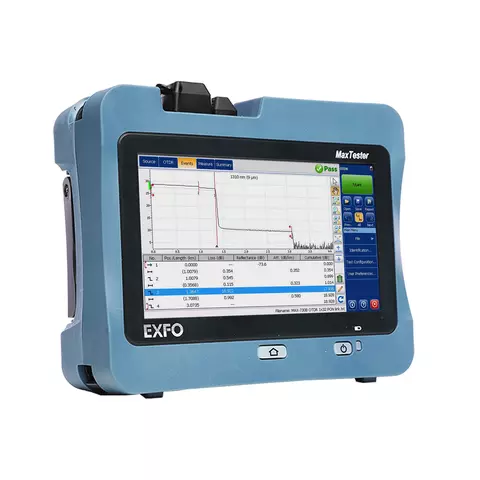

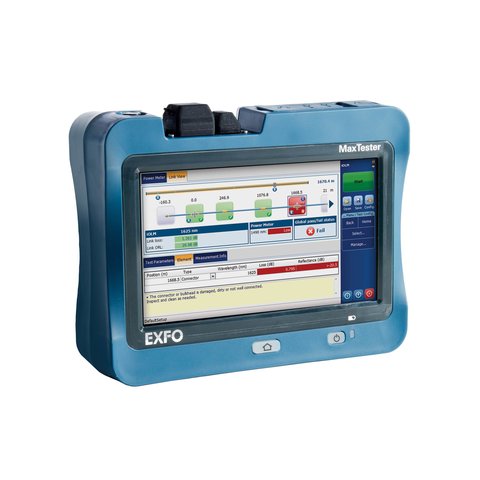

EXFO MAX-730B-M2 is a rugged, lightweight, and handy OTDR with a 7-inch, outdoor-enhanced touchscreen and tablet-inspired design. The device is optimized to test through optical splitters up to 1x128, ensuring complete end-to-end FTTH characterization. The 1625 nm, out-of-band, live testing port enables the efficient troubleshooting of active networks without affecting the signal of other clients. Besides, this OTDR is suitable for testing single-mode access networks and single-mode fiber optic structured cabling.
This OTDR has an intuitive GUI with icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes. The built-in battery provides up to 12 hours of continuous operation. Fully featured, entry-level, compact, and lightweight, this device is ideal for optical work in the field.
Features
- Handy, lightweight, powerful, tablet-like device.
- 7-inch outdoor-enhanced touchscreen.
- 12-hour autonomy.
- Dynamic range: 39/37/37 dB.
- Dead zones: EDZ 0.8 m, ADZ 3.5 m.
- Optimized for testing FTTH (PON) networks through splitters up to 1×128.
- Equipped with a 1625 nm SM live port built-in filter.
- Rugged design built for outside plant.
Application
- FTTx/MDU test challenges within PON networks.
- Access network testing (P2P).
- Metro links testing (P2P).
- Live fi ber troubleshooting.
Technical Specifications
| Wavelength | 1310/1550 nm and 1625 nm (SM live port built-in filter) |
| Dynamic range | 39/37/37 dB |
| Event dead zone | 0.8 m |
| Attenuation dead zone | 3.5 m |
| Distance range | 0.1 – 400 km |
| Pulse width | 5 – 20 000 ns |
| Linearity | ±0.03 dB |
| Loss threshold | 0.01 dB |
| Loss resolution | 0.001 dB |
| Sampling resolution | 0.04 to 5 m |
| Sampling points | up to 256 000 |
| Distance uncertainty | ±(0.75 + 0.0025 % × distance + sampling resolution) |
| Measurement time | user-defined (60 min. maximum) |
| Reflectance accuracy | ±2 dB |
| Typical real-time refresh | 3 Hz |
| Display | 7-in (178 mm) outdoor-enhanced touchscreen, 800 × 480 TFT |
| Storage | 2 GB internal memory (20 000 OTDR traces, typical) |
| Batteries | rechargeable lithium-polymer battery (12 hours of operation) |
| Temperature | operating: –10 °C to 50 °C (14 °F to 122 °F) storage: –40 °C to 70 °C (–40 °F to 158 °F) |
| Interfaces | two USB 2.0 ports RJ45 LAN 10/100 Mbit/s |
| Power supply | AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 W minimum |
| Dimensions | 200 mm × 155 mm × 68 mm |
| Weight | 1.29 kg |
User Manual
Download EXFO MAX-730B-M2 user manual.
Package Contents
- Optical Time Domain Reflectometer EXFO MAX-730B-M2 — 1 pc.
- User Manual — 1 pc.
- AC/DC Adapter — 1 pc.
- Battery — 1 pc.
- Hand Strap — 1 pc.
