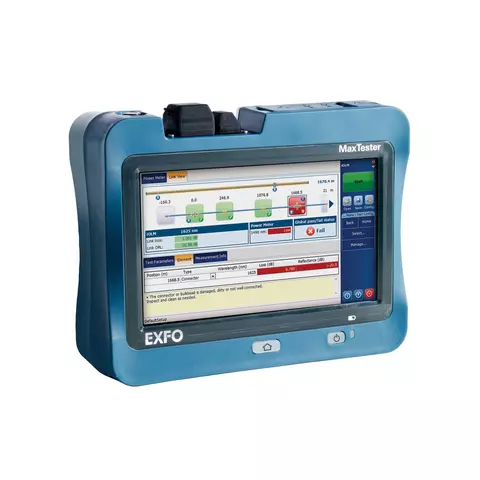

Optical Time Domain Reflectometer EXFO MAX-730C-SM1-OTDR-EA
Overview
Description
EXFO MAX-730C-SM1-OTDR-EA is a rugged, lightweight, and handy OTDR with a 7-inch, outdoor-enhanced touchscreen and tablet-inspired design. The device is optimized to test through optical splitters for seamless end-to-end FTTH characterization and troubleshooting. It is used to measure fiber length, total attenuation, splice loss, connector and macrobend loss, reflectance, and ORL. Setting the thresholds allows for a quick estimation of the overall condition of the network and its components.
The OTDR has an intuitive GUI with icon-based functions, instant boot-up, automatic macrobend finders, as well as improved auto and real-time modes. A built-in battery enables up to 12 hours of continuous operation. Fully featured, entry-level, compact, and lightweight, this device is a perfect choice for optical works in the field.
Features
- Handy, lightweight, powerful, tablet-like device;
- 7-inch outdoor-enhanced touchscreen;
- 12 hour autonomy;
- Dynamic range of 39/38/39 dB;
- Event dead zone: 0.5 m, attenuation dead zone: 2.5 m;
- Optimized to test through optical splitters and characterize FTTH links;
- Rugged design built for outside plant;
Application
- FTTx/PON testing through splitters (up to 1×128);
- Access network testing (P2P);
- Metro links testing (P2P);
- Live fiber troubleshooting.
Technical Specifications
| Wavelength | 1310 ± 20 nm / 1550 ± 20 nm | |
| Dynamic range | 39/38/39 dB | |
| Event dead zone | 0.5 m | |
| Attenuation dead zone | 2.5 m | |
| PON dead zone | 30 m | |
| Distance range | 0.1 – 400 km | |
| Pulse width | 3 – 20 000 ns | |
| Linearity | ±0.03 dB | |
| Loss threshold | 0.01 dB | |
| Loss resolution | 0.001 dB | |
| Sampling resolution | from 0.04 to 10 m | |
| Sampling points | up to 256 000 | |
| Distance uncertainty | ±(0.75 + 0.0025 % × distance + sampling resolution) | |
| Measurement time | User-defined | |
| Reflectance accuracy | ±2 dB | |
| Typical real-time refresh | 4 Hz | |
| Display | 7-in (178 mm) outdoor-enhanced touchscreen, 800 × 480 TFT | |
| Storage | 2 GB internal memory (20 000 OTDR traces, typical) | |
| Batteries | rechargeable lithium-polymer battery (12 hours of operation) | |
| Temperature | operating: -10°C to 50°C (14°F to 122°F) storage: -40°C to 70°C (-40°F to 158°F) |
|
| Interfaces | USB 2.0 port × 2 RJ45 LAN 10/100 Mbit/s |
|
| Power supply | AC/DC adapter, input 100-240 VAC, 50 – 60 Hz | |
| Dimensions | 166 mm × 200 mm × 68 mm | |
| Weight | 1.5 kg | |
User Manual
Download EXFO MAX-730C-SM1-OTDR-EA User Manual.
Package Contents
- Optical Time Domain Reflectometer EXFO MAX-730C-SM1-OTDR-EA — 1 pc.
- User manual — 1 pc.
- AC/DC adapter — 1 pc.
- Battery — 1 pc.
- Hand strap — 1 pc.
- Soft carrying case — 1 pc.
