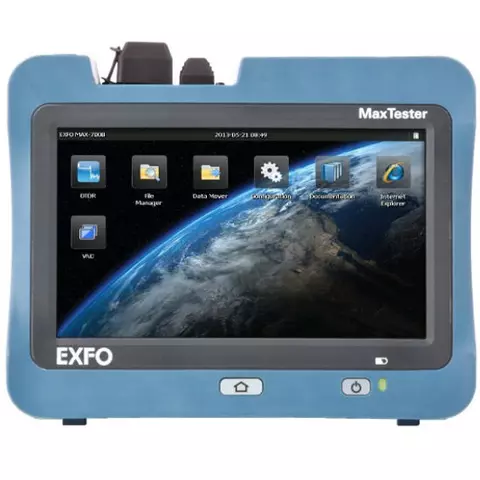

Optical Time Domain Reflectometer EXFO MaxTester 710B
id: 864761
Optical Time Domain Reflectometer EXFO MaxTester 710B
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 2833.60
Overview
Made in Canada
3.8 kg 110, 220 V Warranty: 12 months
Complex Device, Tailored Solutions: We're Here to Help!
This device is highly sophisticated. If needed, we're ready to assist you in finding the best model for your specific needs.
This item is delivered upon order. The current price and delivery time require clarification.
Wavelength: 1310/1550 nm. Dynamic range: 30/28 dB. Event dead zone: 1 m. Attenuation dead zone: 4 m. Read more
USD 2833.60
Description
EXFO MaxTester 710B Optical Time Domain Reflectometer is a powerful lightweight handy OTDR with 7-inch outdoor-enhanced touchscreen display, tablet-inspired design, 12-hour battery operation, rugged design for outdoor operation.
EXFO MaxTester 710B is iOLM-ready (iOLM – intelligent Optical Link Mapper, a dynamic application that turns complex OTDR trace analysis into a one-touch task).
Features
- Handy, lightweight, powerful, tablet-like device
- 7-inch, outdoor-enhanced touchscreen
- 12-hour autonomous operation
- Rugged design built for outdoor operation
Application
- FTTx last-mile installation and troubleshooting
- Short access network testing
- FTTA-fiber DAS installations
- CATV/HFC network testing
Technical Specifications
| Wavelength | 1310/1550 nm |
| Dynamic range | 30/28 dB |
| Event dead zone | 1 m |
| Attenuation dead zone | 4 m |
| Distance range | 0.1 – 160 km |
| Pulse width | 5 ns – 20 μs |
| Linearity | ±0.05 dB |
| Loss threshold | 0.01 dB |
| Loss resolution | 0.001 dB |
| Sampling resolution | 0.04 to 5 m |
| Sampling points | Up to 256 000 |
| Display | Two USB 2.0 ports RJ-45 LAN 10/100 Mbit/s |
| Storage | 2 GB internal memory (20 000 OTDR traces, typical) |
| Batteries | Rechargeable lithium-polymer battery |
| Power supply | AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum |
