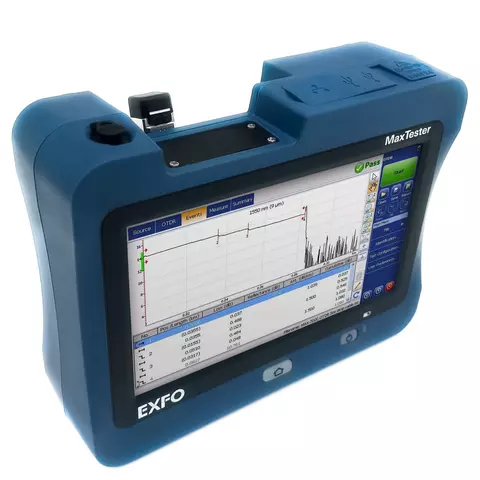

Optical Time Domain Reflectometer EXFO MaxTester 715B

id: 869403
Made in Canada
5 kg 110, 220 V
Availability in stock: HK
Warranty: 12 month (s)
Wavelength: 1310/1550 nm. Dynamic range: 30/28 dB. Event dead zone: 1 m. Attenuation dead zone: 4 m.
USD 2950.00
Add to cart
USD 2950.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Specifications
Delivery
Payment
Warranty
Overview

EXFO MaxTester 715B Optical Time Domain Reflectometer is a powerful lightweight handy OTDR with 7-inch outdoor-enhanced touchscreen display, tablet-inspired design, 12-hour battery operation, rugged design for outdoor operation.

EXFO MaxTester 715B is iOLM-ready (iOLM – intelligent Optical Link Mapper, a dynamic application that turns complex OTDR trace analysis into a one-touch task).

Ordering Information

If you want to buy additional options for your OTDR, please choose them from the list below and contact our sales manager.

Ordering Information

Features

  • Handy, lightweight, powerful, tablet-like device
  • 7-inch, outdoor-enhanced touchscreen
  • 12-hour autonomous operation
  • Rugged design built for outdoor operation

Application

  • FTTx last-mile installation and troubleshooting
  • Short access network testing
  • FTTA-fiber DAS installations
  • CATV/HFC network testing

Technical Specifications

Wavelength 1310/1550 nm
1625 nm (option)
Dynamic range 30/28 dB
28 dB (1625 nm)
Event dead zone 1 m
Attenuation dead zone 4 m
Distance range 0.1 – 160 km
Pulse width 5 ns – 20 μs
Linearity ±0.05 dB
Loss threshold 0.01 dB
Loss resolution 0.001 dB
Sampling resolution 0.04 to 5 m
Sampling points Up to 256 000
Interfaces Two USB 2.0 ports
RJ-45 LAN 10/100 Mbit/s
Storage 2 GB internal memory (20 000 OTDR traces, typical)
Batteries Rechargeable lithium-polymer battery
Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
Dimensions 200 × 155 × 68 mm
Weight 1.3 kg

Package Contents

  • EXFO MAX-715B Optical Time Domain Reflectometer — 1 pc.
  • Battery GP-2209 — 1 pc.
  • Power adapter/charger GP-2146 — 1 pc.
  • User Manual — 1 pc.
Specifications
Dynamic range
  • 30 dB
Wave length
  • 1310 nm
  • 1550 nm
Fiber type
  • singlemode
