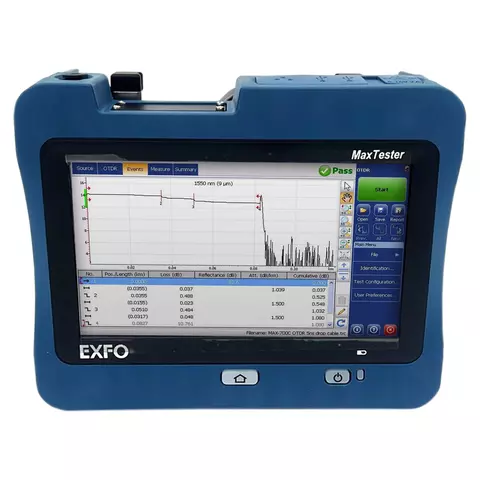

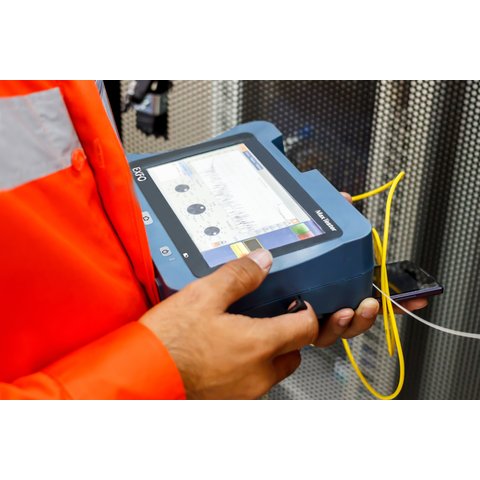

Optical Time Domain Reflectometer EXFO MAXTESTER MAX-730C-SM2
Overview
Description
EXFO MAXTESTER MAX-730C-SM2 is a rugged, lightweight, and handy OTDR with a 7-inch, outdoor-enhanced touchscreen and tablet-inspired design. The device is optimized to test through optical splitters, for seamless end-to-end FTTH characterization and troubleshooting. It is used to measure fiber length, total attenuation, splice loss, connector and macrobend loss, reflectance, ORL. Setting the thresholds allows for quickly estimating the overall condition of the network and its components.
This OTDR has an intuitive GUI with icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes. The built-in battery provides up to 12 hours of continuous operation. Fully featured, entry-level, compact, and lightweight, this device is ideal for optical work in the field.
Features
- Handy, lightweight, powerful, tablet-like device;
- 7-inch outdoor-enhanced touchscreen;
- 12 hour autonomy;
- Dynamic range of 39/38/39 dB;
- Event dead zone: 0.5 m, attenuation dead zone: 2.5 m;
- Optimized to test through optical splitters and characterize FTTH links;
- Rugged design built for outside plant
Applications
- FTTx/PON testing through splitters (up to 1×128).
- Access network testing (P2P).
- Metro links testing (P2P).
- Live fiber troubleshooting.
Technical Specifications
| Wavelength | 1310 ± 20 nm / 1550 ± 20 nm / 1625 ± 10 nm | |
| SM live port built-in filter | 1625 nm | highpass >1595 nm isolation >50 dB from 1270 nm to 1585 nm |
| Dynamic range | 39/38/39 dB | |
| Event dead zone | 0.5 m | |
| Attenuation dead zone | 2.5 m | |
| PON dead zone | 30 m | |
| Distance range | 0.1 – 400 km | |
| Pulse width | 3 – 20 000 ns | |
| Linearity | ±0.03 dB | |
| Loss threshold | 0.01 dB | |
| Loss resolution | 0.001 dB | |
| Sampling resolution | from 0.04 to 10 m | |
| Sampling points | up to 256 000 | |
| Distance uncertainty | ±(0.75 + 0.0025 % × distance + sampling resolution) | |
| Measurement time | User-defined | |
| Reflectance accuracy | ±2 dB | |
| Typical real-time refresh | 4 Hz | |
| Display | 7-in (178 mm) outdoor-enhanced touchscreen, 800 × 480 TFT | |
| Storage | 2 GB internal memory (20 000 OTDR traces, typical) | |
| Batteries | rechargeable lithium-polymer battery (12 hours of operation) | |
| Temperature | operating: –10 °C to 50 °C (14 °F to 122 °F) storage: –40 °C to 70 °C (–40 °F to 158 °F) |
|
| Interfaces | two USB 2.0 ports RJ45 LAN 10/100 Mbit/s |
|
| Power supply | AC/DC adapter, input 100-240 VAC, 50-60 Hz | |
| Dimensions | 166 mm × 200 mm × 68 mm | |
| Weight | 1.5 kg | |
User Manual
Download EXFO MAX-730C-SM2 user manual.
Package Contents
- Optical Time Domain Reflectometer EXFO MAXTESTER MAX-730C-SM2 — 1 pc.
- User Manual — 1 pc.
- AC/DC Adapter — 1 pc.
- Battery — 1 pc.
- Hand Strap — 1 pc.
- Soft Carrying Case — 1 pc.
