Optical Time-Domain Reflectometer Grandway FHO3000-D35

id: 865751
Optical Time-Domain Reflectometer Grandway FHO3000-D35
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 961.00
USD 799.00

Overview

5 (1)
4.5 kg 220 V
Availability in stock: HK
Warranty: 12 months
Handheld and lightweight optical time-domain reflectometer (singlemode) for outdoor use. Wavelength: 1310/1550 nm. Dynamic range: 35/33 dB. Read more
USD 961.00
USD 799.00
USD 961.00
USD 799.00
Impossible to estimate the shipping cost

Description

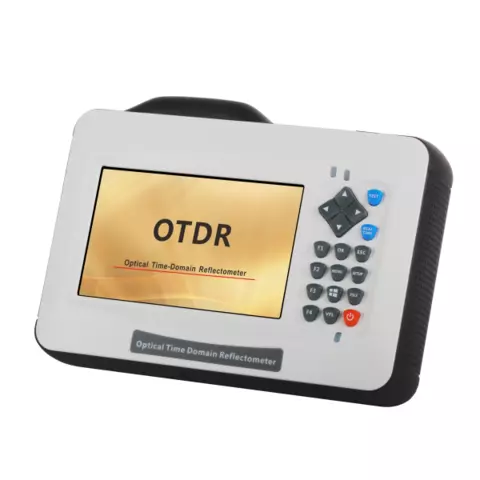

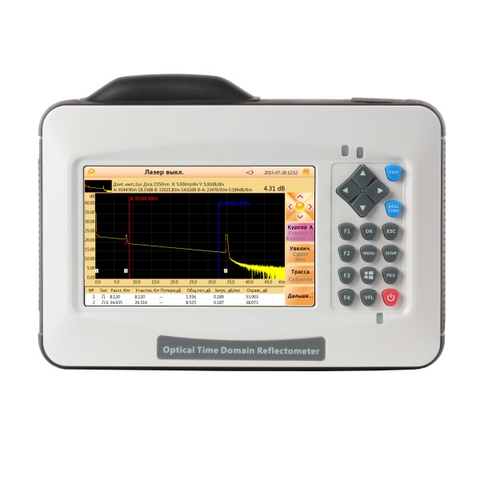

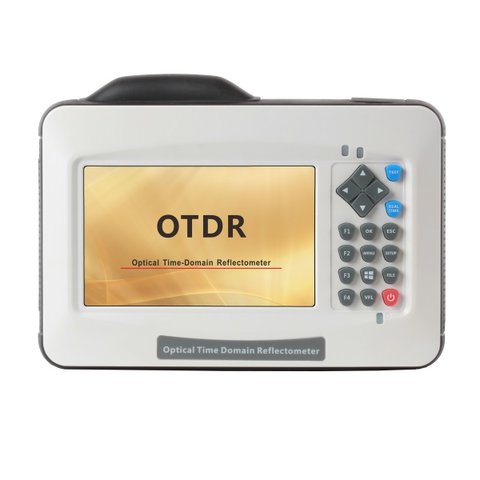

Grandway FHO3000-D35 is a singlemode optical time-domain reflectometer with 1310/1550 nm wavelength and 35/33 dB dynamic range.

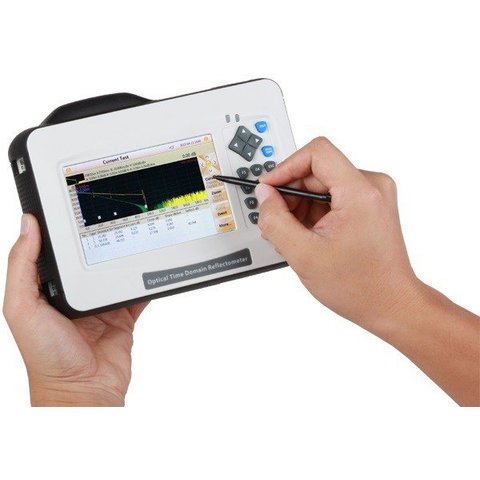

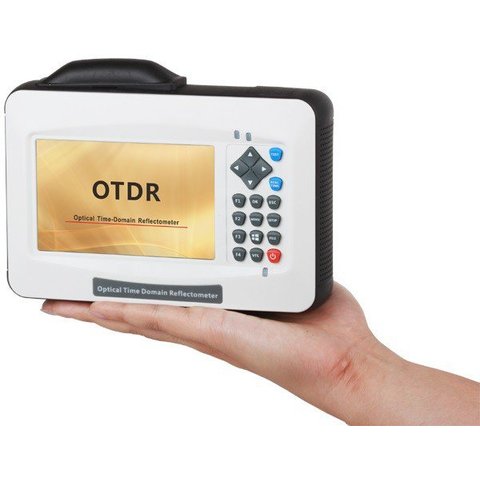

Is characterized by compact and lightweight design to be easily operated with one hand and the testing requires only one key to start. It allows anyone to proceed error-free testing and is perfect for outdoor use.  FHO3000 is a cost effective solution for accurate and complete fiber evaluation.

Ordering Information

If you want to buy additional options for your OTDR, please choose them from the list below and contact our sales manager.

Ordering Information

Features

  • Handheld and portable
  • High price/performance ratio
  • 5-inch HD touch screen
  • Simple interface and one-button testing
  • Continuous standalone operation
  • Supports multi-language display and input

Applications

  • FTTX PON network testing
  • CATV network testing
  • Access network testing
  • LAN network testing
  • Metro network testing
  • Lab and factory testing
  • Real-time fiber troubleshooting

Technical Specifications

  FHO3000-D26 FHO3000-D35
Wavelength 1310/1550 nm 1310/1550 nm
Dynamic Range 26/24 dB 35/33 dB
Attenuation
Dead Zone (ADZ)
6 m 6 m
Event Dead Zone (EDZ) 1 m 1 m
Pulse Width 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs, 20 μs
Testing Distance 100 m, 500 m, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km, 120 km, 160 km, 240 km
Sampling Resolution min. 5 cm
Sampling Maximum 128,000 points
Linearity ≤0.05 dB/dB
Loss Threshold 0.01 dB
Distance Resolution 0.01 m
Distance Accuracy ±(1m+measuring distance×3×10-5+sampling resolution)
General Characteristics
Display 5 inch TFT LCD (touch screen)
Battery 7.4 V / 3300 mAh lithium battery
Operation Time 6 hours (backlight off)
Charging Time 3.5 hours
Data Storage 40,000 groups of curves
Interface 3×USB port (USB A Type×2, Micro-USB×1)
Operating Temperature -10℃~+50℃
Storage Temperature -20℃~+70℃
Humidity ≤95% (non-condensation)
Dimensions 195×141×44 mm
Weight 0.9 kg (battery included)

Video

Youtube video

Package Contents

Standard Accessories

  • Grandway FHO3000 OTDR main unit — 1 pc.
  • Power adapter (12 V) — 1 pc.
  • Lithium battery — 1 pc.
  • FC adapter — 1 pc.
  • USB cord — 1 pc.
  • User guide — 1 pc.
  • CD — 1 pc.
  • Carrying case — 1 pc.
  • Wrist belt — 1 pc.

Specifications

Wave length
  • 1310 nm
  • 1550 nm
Fiber type
  • singlemode
Dynamic range
  • 33 dB
  • 35 dB

Video

Youtube video
