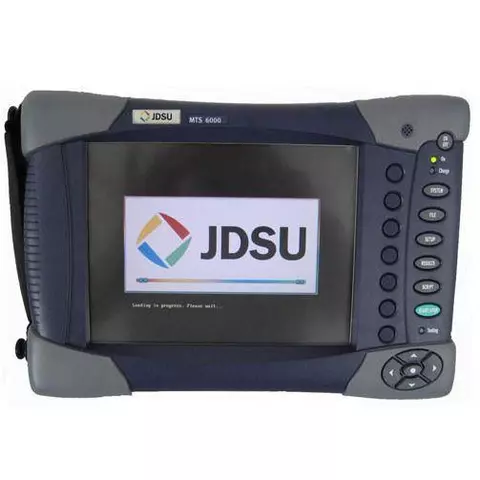

Optical Time Domain Reflectometer JDSU MTS-6000

id: 840449
5 kg 110, 220 V Warranty: 12 month (s)
Compact and lightweight test platform designed for the installation and maintenance of fiber networks. May be used with over 40 different modules.
USD 8100.00
Notify
when in stock
USD 8100.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

JDSU MTS-6000 is a compact and lightweight test platform designed for the installation and maintenance of fiber networks. The device offers the highest levels of performance and accuracy. JDSU MTS-6000 platform is a modular device that allows adjustment to a wide range of applications using over 40 different fiber modules.

JDSU MTS-6000 – Features

  • Large 8.4-inch transreflective TFT color display with touchscreen option.
  • Intuitive graphical user interface.
  • Extended battery life using smart Lithium-ion cell.
  • Connection Check with VFL, power meter, Loss Test Set/ ORL meter and video inspection scope options
  • Built-in optical talkset option for communicating along the fiber.
  • Unique automatic bi-directional analysis function available to save up to 50% test time for OTDR, IL, and ORL measurements.
  • Fast data transfer via USB, Ethernet port.
  • 1Gb extended memory option.
  • Comprehensive suite of PC software tools for post-processing of test results with FiberTrace (OFS-100) and FiberCable (OFS-200).
  • Possibility of remote control via Ethernet/IP or VT-100 emulation.
  • Compact and lightweight: only 2.4kg/5.3 lbs (may be heavier depending on the module and the battery).

JDSU MTS-6000 – Applications

  • Fault location with Visual Fault Locator.
  • Fault location with OTDR.
  • Power level testing.
  • CWDM/DWDM testing.
  • PMD testing.
  • Spectral Attenuation Profile testing.
  • Chromatic Dispersion (CD) testing.
  • Insertion Loss (IL) testing.
  • Optical Return Loss (ORL) testing.

Data Sheet

Download JDSU MTS-6000 Data Sheet.

JDSU MTS-6000 – Technical Specifications

General Specifications
Display TFT color 8.4" LCD, 800×600 (standard)
Touchscreen TFT color 8.4" LCD, 800×600 (optional)
Storage Internal memory: 1000 test results
Extended memory (optional): min. 1 Gb
Interfaces USB v1.1; RJ45 Ethernet
Power supply Li-ion batteries; AC/DC adapter 100-240 V, 50-60 Hz, output 19 V DC/3.1 A; operation up to 11 hrs with standard display
Size, L×H×W 285×189×95 mm
Weight 2.4 kg (without battery and modules)
3.4 kg (with a battery and one module)
Operating temperature –20 to +50°C (no options)
0 to +40°C (all options)
Storage temperature –20 to +60°C
Humidity 95%
Optical Interfaces (optional)
Power Meter
Power level +10 to –60 dBm
Wavelengths 850, 1310, 1550 nm
Connector type Universal push/pull (UPP)
Optical Return Loss
Selectable wavelengths 1310 / 1550 nm
Measurement range 0 dB to 45 dB
Measurement uncertainty ± 1 dB
Display resolution 0.01 dB
Visual Fault Locator
Wavelengths 635 nm ± 15 nm
Output power level < 1 mW
Laser safety class 2 laser
Connector type Universal push/pull (UPP)
Continuous Wave Light Source
Wavelengths (selection) 1310, 1550, 1625 nm
Output power level –3.5 dBm
Stability in 15 min ± 0.02 dB
Stability in 8 hrs ± 0.2 dB
Laser safety class 1M laser
Connector type field interchngeable
Talkset
Wavelength 1550 nm
Dynamic range 45 dB
Function with data/file transfer
Laser safety class 1M laser
Connector type field interchngeable
Video Inspection Scope
Magnification 250× and 400×, through the USB port
Specifications
Dynamic range
  • 45 dB
Wave length
  • 1310 nm
  • 1550 nm
Fiber type
  • singlemode
