Optical Time Domain Reflectometer Viavi MTS-4000 v2 OTDR with E4126A module
id: 917039
Optical Time Domain Reflectometer Viavi MTS-4000 v2 OTDR with E4126A module
Overview
Description
Delivery
Payment
Warranty
USD 4190.00
Overview
New
A handheld test platform designed for all phases of the network lifecycle. Supplied with E4126LA OTDR module, supporting 310/1550 nm wavelengths. Read more
USD 4190.00
Buy wholesale and save
Description

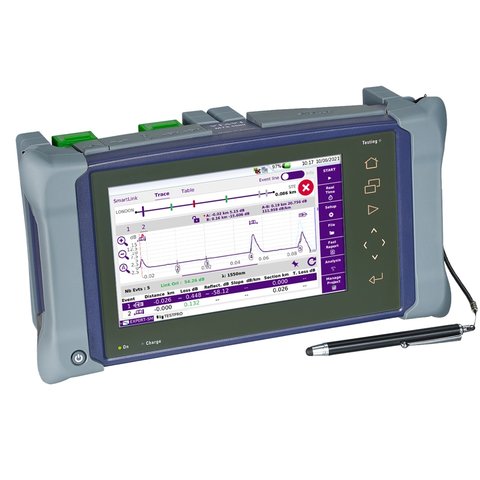

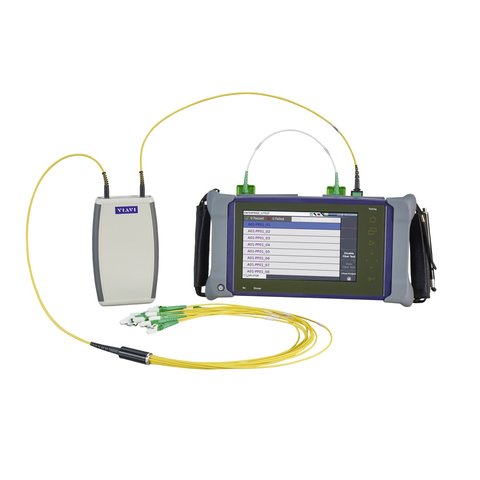

Viavi MTS-4000 v2 is a small, compact and handheld test platform designed for all phases of the network lifecycle, from the installation to the maintenance of Metro, Core, Access, FTTH, FTTx, HFC, Wireless, 5G, Enterprise and Data Center networks. Modular in design, the MTS-4000 V2 offers engineers, technicians, installers and contractors the highest performance and superior levels of scalability and upgradeability.
It is supplied with the E4126A OTDR module, which allows measurement of the optical line length, distance to breaks, as well as total losses and fiber attenuation per kilometer. The module detects any irregularities, such as splices, connectors, macrobends, and cracks, and measures all relevant parameters of these irregularities: losses, reflections, and the distance to them.
Features
- Easy-to-use solution with intuitive icon-based graphical user interface (GUI) and multi-touch screen requiring minimal training
- Combines multiple function/modules in a compact solution
- Essential fiber tools integrated and supported: Visual Fault Locator, Broadband Power Meter, Talkset and Automated Fiber Microscope
- Simplify OTDR trace interpretation with Smart Link Mapper (SLM), clear icon based view of fiber link and dedicated applications for FTTH/PON, FTTx (P2P, Access, HFC), FTTA, Enterprise and Data Center
- Flexible connectivity for fast data transfer: USB, Ethernet, WiFi, Bluetooth
- Remotely coach and support field techs with Smart Access Anywhere (SAA)
- Optimum workflow and operation within the platform or through the cloud with VIAVI StrataSync
Applications
- Full network lifecycle: Construction, Activation, Maintenance & Troubleshooting
- Essential fiber test: OTDR Testing, FiberComplete™ (automated bi-directional IL/ORL & OTDR), Connector inspection with IEC Pass/Fail Analysis
- FTTH: Passive Optical Network (PON) optimized OTDR & selective power meters for E-PON, G-PON, XGS-PON, NG-PON2 networks
- Hybrid CWDM/DWDM: combined CWDM or DWDM OTDR and C-OSA test platform
- Wireless: singlemode and multimode test for C-RAN, DAS and 5G deployments
- Enterprise & Data Center: integrated solution for multi-fiber MPO cable tier-2 certification
- Metro Core: long haul OTDR for high speed 10G/40G/100G fiber link qualification
Technical Specifications
| Modular Test Platform Viavi JD-MST4000v2 | |
|---|---|
| Weight | 1.4 kg (3 lb) |
| Display | 9-inch high visibility multi-touch screen with permanent function keys |
| Modules | field-replaceable |
| Report Generation | on-board instrument, via PC/laptop (FiberCable SW suite) and StrataSync |
| Compatibility | with MTS-2000 and -5800 test platforms |
| E4126A OTDR Module | |
| Wavelengths | 1310 / 1550 nm |
| Dynamic Range | 35 / 33 dB |
| Event Dead Zone | 1.5 m |
| Attenuation Dead Zone | 6 m |
| General Specifications | |
| Weight | 0.35 kg (0.77 lb) |
| Dimensions | 128 mm × 134 mm × 40 mm (5 × 5.28 × 1.58 in.) |
| Optical Interfaces | |
| Replacement Adapters | FC, SC |
| Specifications | |
| Laser Safety | Class 1 |
| Length Measurement Units | kilometers, feet, miles |
| Index of Refraction | 1.30000 to 1.70000 in 0.00001 increments |
| Number of Sample Points | up to 128,000 or up to 256,000 |
| Length Measurement | |
| Mode | automatic or with two markers |
| Range of Displayed Lengths | up to 260 km |
| Cursor Resolution | 1 cm |
| Sampling Resolution | 4 cm |
| Accuracy | ±1 m ± sampling resolution ±1.10-⁵ x length |
| Attenuation Measurement | |
| Mode | automatic, manual, 2-point and 5-point, LSA |
| Displayed Range | 1.25 to 55 dB |
| Displayed Resolution | 0.001 dB |
| Cursor Resolution | 0.001 dB |
| Linearity | ±0.03 dB/dB, ±0.05 for LA |
| Limits | 0.01 to 5.99 dB in 0.01 dB increments |
| Reflectance and ORL Measurement | |
| Accuracy of Reflection Measurement | ±2 dB |
| Displayed Resolution | 0.01 dB |
| Limits | -11 to -99 dB in 1 dB increments |
| Light Source | |
| Output Power | -3.5 dBm |
| Calibrated Wavelengths | 1310/1550 nm |
Package Contents
- Modular Test Platform Viavi JD-MST4000v2 — 1 pc.
- E4126A OTDR Module (1310/1500 nm) — 1 pc.
- Battery — 1 pc.
- AC Power Supply / Battery Charger — 1 pc.
- Quick Start Guide — 1 pc.
- Manual on the USB — 1 pc.
- Side Lanyard — 2 pcs.
