Optical Time Domain Reflectometer YOKOGAWA AQ1210A
id: 920368
Optical Time Domain Reflectometer YOKOGAWA AQ1210A
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 3195.00
Overview
Video
2 kg
Availability in stock:
HK
Warranty: 12 months Portable OTDR with a wavelength of 1310/1550 ±25 nm (SM) and a dynamic range of 37/35 dB Read more
USD 3195.00
Note! This item is shipped within 10 working days.
Description

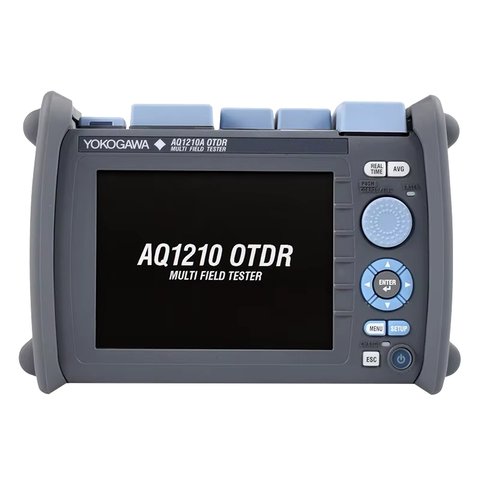

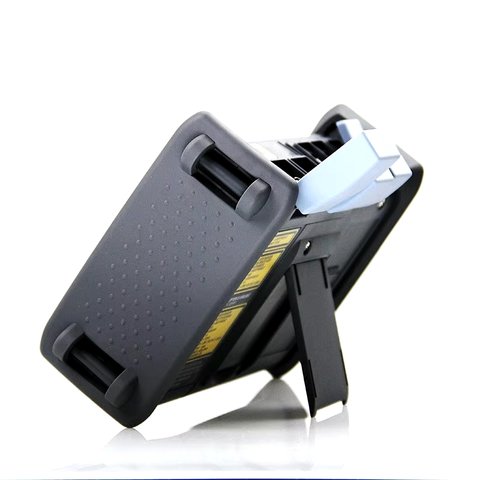

YOKOGAWA AQ1210A is an OTDR with an integrated laser source designed for testing and monitoring optical networks. Optimized for FTTx and PON networks, it combines lightweight design, compact size, and wide functionality, making it indispensable for fieldwork. With improved software and hardware features, the AQ1210A provides accurate optical measurements, including optical splitter loss analysis and macro bend detection. The device supports multi-fiber mode, allowing multiple types of measurements to be performed simultaneously and offering high-speed, accurate real-time results.
Features
- Standard wavelengths: 1310 nm and 1550 nm
- Light source feature using the OTDR port
- Compact size and weight about 1 kg
- Up to 10 hours of battery life
- Battery powered via USB
- Touchscreen and hard-key buttons
- Software loading in 10 seconds
- Options for advanced measurements: visible light source, optical power meter, fiber surface test function (optional)
- Multi-fiber measurement for improved work efficiency
- Data transfer and remote control via Wi-Fi or ETHERNET connection
- Advanced trace analysis and smart mapper function
- Macro bending events along a fiber under test can be identified and located automatically
- Short event dead zone and high sampling resolution
Technical Specifications
| Wavelength | 1310 ±20/1550 ±20 nm | |
| Number of optical ports | 1 | |
| Applicable fiber | SM (ITU-T G.652) | |
| Distance range | 0.1 to 256 km | |
| Pulse width | 5 to 20000 ns | |
| Event dead zone | 0.75 m | |
| Attenuation dead zone | 4 m | |
| PON dead zone | 35 m | |
| Dynamic range | 37/35 dB | |
| Loss measurement accuracy | ±0.05 dB/dB | |
| Optical return loss measurement accuracy | ±2 dB | |
| Number of sampling points | max. 256000 | |
| Sampling resolution | min. 5 cm | |
| Minimum readout resolution | Horizontal axis: 1 cm, vertical axis: 0.001 dB | |
| Distance unit | m, km, mile, kft | |
| Distance measurement accuracy | ± (0.75 m + measured distance × 2 × 10−5 + sampling resolution) | |
| Group refractive index | 1.30000 to 1.79999 (0.00001 intervals) | |
| Optical connector | SC/FC/LC/SC Angled-PC | |
| OTDR function | Measurement items | Distance, loss, return loss, return loss between two arbitrary points, dB/km |
| Analysis | Multi-trace, 2-way trace, differential trace, section analysis, auto event search, pass/fail judgment, fiber surface test (option) | |
| Other functions | Multi-fiber project, rerouted fiber comparison, work completion notice, smart mapper, remote control, web server, report generation, plug check, fiber-in-use alarm | |
| Light source function | Output power | −3 dBm ± 1 dB |
| Output power stability | ±0.05 dB | |
| Modulation mode | CW, 270 Hz, 1 kHz, 2 kHz | |
| Optical output port | OTDR port | |
| Laser class | Class 1M (EN 60825-1: 2007, GB 7247.1-2012), Class 1 (EN 60825-1: 2014+A11: 2021) | |
| Display | 5.7-inch color TFT LCD (resolution: 640 × 480, multi-touch capacitive touchscreen) | |

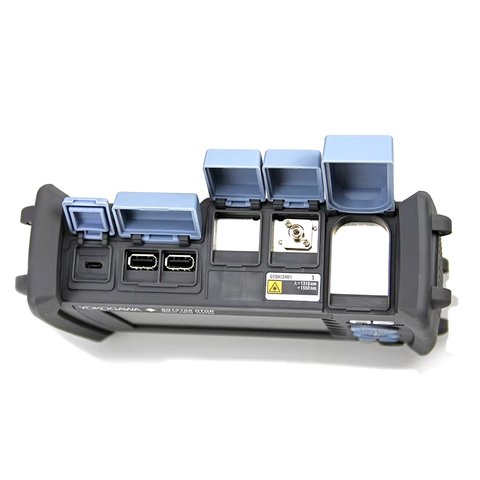

| Interfaces |
USB 2.0 Type-A × 2: USB mass storage device, fiber inspection probe, wired LAN adapter, wireless LAN adapter USB 2.0 Type-C × 1: DC power supply, storage, remote control |
|
| Data storage |
Internal: ≥1000 traces, external: USB storage File format: Write: SOR, CSV, SET, SMP, BMP, JPG, PDF Read: SOR, SET, SMP |
|
| Power requirements | USB power supply (Type-C), DC 5 V ±5%, max. 3 A | |
| Battery |
Type: Lithium ion polymer Operation time: 10 hours or more (Telcordia GR-196-CORE Issue 2, September 2010) Recharge time: 5 hours (power-off state) |
|
| Environmental conditions |
Operating temperature: −10 to 50˚C (10 to 35˚C when charging the battery) Operating humidity: ≤95%RH (non-condensing) Storage temperature: −20 to 60˚C Storage humidity: ≤95%RH (non-condensing) Altitude: 4000 m Dust and drip protection: IP51 equivalent |
|
| Laser safety standard |
EN 60825-1: 2014+A11: 2021 IEC 60825-1: 2007 GB 7247.1-2012 FDA 21CFR1040.10 and 1040.11 |
|
| Dimensions | Approx. 210 mm (W) × 148 mm (H) × 69 mm (D) (excluding projections) | |
| Weight | Approx. 1 kg (including battery) | |
Video
User Manual
Download YOKOGAWA AQ1210A user manual.

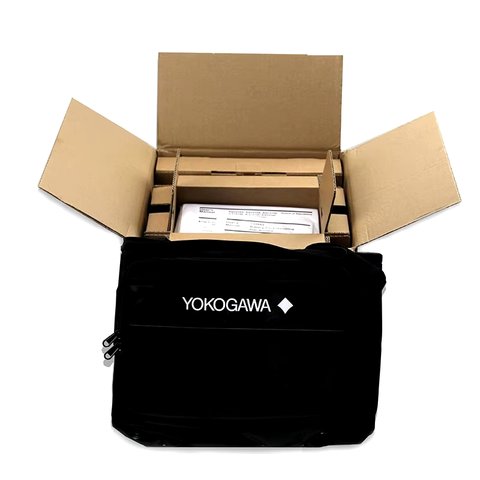

Package Contents
- Optical Time Domain Reflectometer YOKOGAWA AQ1210A — 1 pc.
- Connecting Cable for USB Power Adapter — 1 pc.
- Battery Pack — 1 pc.
- Hand Belt — 1 pc.
- Startup Guide — 1 pc.
Specifications
| Wave length |
|
| Fiber type |
|
| Dynamic range |
|
