Oscilloscope Probe Micsig DP10013
id: 882669
Oscilloscope Probe Micsig DP10013
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
High-voltage oscilloscope measuring probe (100 MHz, 1300 V). Read more
Price coming soon
Description
Micsig DP10013 is a high-voltage probe with a bandwidth up to 100 MHz, compatible with most oscilloscopes in the market. It allows a user to safely measure floating voltages up to 1300 V. DP10013 can be used in two different attenuation ranges: 500X for a maximum test voltage of 1300 V and 50X for a maximum test voltage of 130 V.
Features
- Lightweight and portable
- Powered by USB, no additional 220V AC power is required
- Self-calibration
Technical Specifications
| Bandwidth | 100 MHz |
| Rise Time | 3.5 ns |
| Attenuation | 50X / 500X |
| Gain Accuracy | ±2% |
| Maximum Differential Test Voltage | 130 V (50X) / 1300 V (500X |
| Maximum Input Common Mode Voltage | 130 V (50X) / 1300 V (500X) |
| Input Referred Noise | ≤40 mVrms (50X) / ≤230 mVrms (500X) |
| Common Mode Rejection Ratio | >80 dB (DC) >60 dB (100 KHz) >50 dB (1 MHz) |
| Input Impedance | 10 MΩ / 1 pF (differential) 5 MΩ / 2 pF (single-ended to ground) |
| Output Voltage | ≤3 V |
| Overrange Alarm | Button light flashes |
| Power Supply | DC 5V, USB Supply |
| Power | 0,85 W |
| Dimension, mm | 145 × 60 × 27 |
| Input Cable Length | Approx 60 cm |
| Output Cable Length | Approx 60 cm |
Package Contents

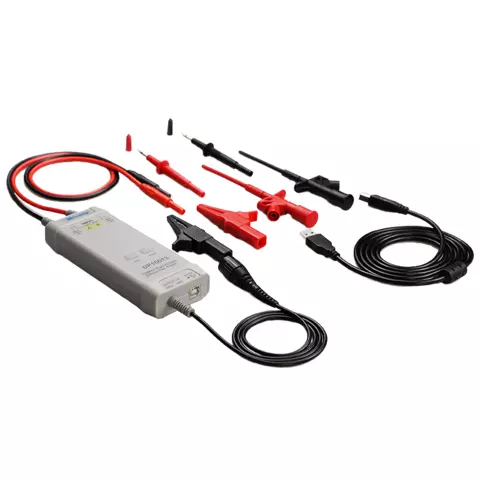

- Oscilloscope Probe Micsig DP10013 — 1 pc.
- USB Power Cable — 1 pc.
- Set of Tips — 1 pc.
- User Manual — 1 pc.
