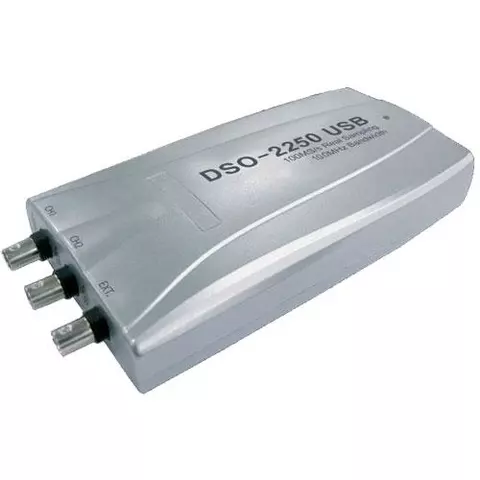

PC-based Digital Storage Oscilloscope Hantek DSO-2250

id: 824316
0.6 kg Warranty: 12 month (s)
Portable USB oscilloscope with 100 MHz bandwith, 250 MS/s sampling rate, cursor measurements, 2 channels and one extra channel for PC connection.
USD 260.00
Notify
when in stock
USD 260.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

Portable Hantek DSO-2250 PC-based oscilloscope is an ideal solution in radio electronics, telecommunications, computer engineering, car testing and other fields.. Hantek DSO-2250 allows mathematical waveform processing and cursor measurements. The software enables you to use all functions, while the demo mode shows the main opportunities of the oscilloscope.

Hantek DSO-2250 PC-based Digital Storage Oscilloscope User Manual

Download Hantek DSO-2250 PC-based digital storage oscilloscope user manual

Hantek DSO-2250 PC-based Digital Storage Oscilloscope Features

  • 100 MHz bandwidth
  • Two channels and one extra channel for PC connection
  • 8 bit vertical resolution
  • 250 MS/s real-time sampling
  • Cursor measurements
  • 23 measurement functions
  • Four mathematical operations
  • Waveform saving in TXT, BMP, JPG, Excel format
  • Labview \ VB \ VC \ Delphi \ C++Builder second design instance
  • No external power source required

Hantek DSO-2250 PC-based Digital Storage Oscilloscope Comparative Specifications

Model DSO-2150 USB DSO-2250 USB DSO-5200A USB
Sample rate 150 MS/s (1 channel)
75 MS/s (2 channels)
250 MS/s (1 channel)
125 MS/s (2 channels)
250 MS/s (1 channel)
125 MS/s (2 channels)
equivalent to 50 GS/s
Number of channels 2
Bandwidth 60 MHz 100 MHz 200 MHz
Vertical resolution 8 bit 9 bit
Gain range 10 mV ~ 5 V/div with ×1 probe
100 mV ~ 50 V/div with ×10 probe
1 V ~ 500 V/div with ×100 probe
10 V ~ 5 KV/div with ×1000 probe
10 mV ~ 10 V/div with ×1 probe
100 mV ~ 100 V/div with ×10 probe
1 V ~ 1 KV/div with ×100 probe
10 V ~ 10 KV/div with ×1000 probe
Verically adjustable yes
Coupling AC, DC AC, DC, GND
Input impedance 1 MΩ
DC accuracy ±3%
Input protection diode clamping
Timebase range 4 ns/div ~ 1 h/div 2 ns/div ~ 1 h/div
realtime sampling: 4 ns - 400 ms/div
roll mode: 1 s/div - 1 h/div
equivalent sampling: 2 ns - 4 µs/div
real-time sampling: 10 µs - 400 ms/div
roll mode: 1 s/div - 1 h/div
Buffer size 10 KB ~ 64 KB samples 10 KB ~512 KB samples 10 KB ~1 MB samples
Trigger functions
Trigger mode Auto, Normal and Single
Trigger type edge trigger: rising edge, falling edge.
Trigger source CH1, CH2, EXT
Trigger level adjustable yes
Autoset yes
Calculating functions
Authomatical calculations Vp-p, Vmax, Vmin, Vmean, Vrms, Vamp, Vhigh, Vlow, positive overshoot, negative overshoot, cycle mean, cycle rms, period, frequency, positive pulse width, negative pulse width, rise time (10%~90%), fall time (10%~90%), positive duty cycle, negative duty cycle
Cursor Time/frequency difference, voltage difference
Maths functions Addition, Subtraction, Multiplication, Division
FFT analysis Rectangular, Hanning, Hamming, Blackman Window
Interface USB 2.0
Dimensions, mm 190 × 100 × 35

Hantek DSO-2250 PC-based Digital Storage Oscilloscope Package

  • Digital oscilloscope Hantek DSO-2250 (1 pc.)
  • Probe (2 pcs.)
  • USB cord (1 pc.)
  • CD with software (1 pc.)
  • User manual (1 pc.)
