PC-Based Logic Analyzer Leaptronix PLA-1016

id: 829177
PC-Based Logic Analyzer Leaptronix PLA-1016
Overview
Description
Delivery
Payment
Warranty
USD 320.00

Overview

0.5 kg Warranty: 6 months
16 channels,100 MHz bandwidth, 100 MHz capture frequency. Compatible with software produced by other manufacturers. Reliable data logger. Read more
USD 320.00
USD 320.00
Impossible to estimate the shipping cost

Description

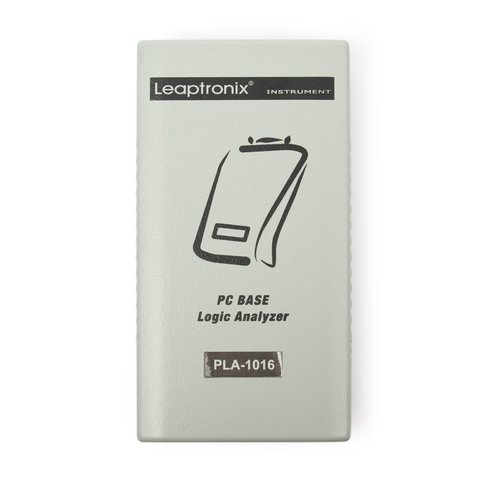

Leaptronix PLA-1016 PC-based logic analyzer is designed for analysis and testing of digital circuits or systems which have too many channels to be tested with an oscilloscope. PLA-1016 can be used in digital troubleshooting, chip making, computer and networking industries, debugging process. Leaptronix PLA-1016 is a reliable 16-channel data logger with 100 MHz bandwidth and 100 MHz capture frequency. This logic analyzer is compatible with software produced by other manufacturers which enables creation of the automatic testing systems.

Leaptronix PLA-1016 PC-Based Logic Analyzer User Manuals

Download Leaptronix PLA-1016 PC-based data logger setup

Download Leaptronix PLA-1016 PC-based logic analyzer setup

Download Leaptronix PLA-1016 PC-based data logger user manual

Download Leaptronix PLA-series PC-based logic analyzers user manual

Download Leaptronix PLA-1016 PC-based logic analyzer user manual

Leaptronix PLA-1016 PC-Based Logic Analyzer Features

  • Internal (asynchronous) and external (synchronous) capture
  • The cursor mark shows timing of each trigger point
  • Binary code and hexadecimal list modes of display
  • Data and waveform saving
  • High-speed zoom in / zoom out function
  • Text file for waveform binary code saving
  • Powered by USB

Leaptronix PLA-1016 PC-Based Logic Analyzer Technical Specifications

Time sequence analysis (capture frequency) 100 MHz max (10 ns)
State analysis (external clock) 100 MHz max
Bandwidth 100 MHz
Channel number 16
Total memory 256 KB
Memory depth 128 kb × 16 channels
Trigger number 1-255
Trigger mode pattern / edge / and/ or
Trigger channel 16 channels
Advance/delay trigger yes
Trigger PAT 3 (edge or pattern)
Continious or discontinious trigger yes
Trigger output yes (TTL level)
Trigger pulse width yes
Bus analysis yes
Glitch capture yes
Reference voltage range -4 V to 4 V (±50 mV)
Max. input voltage ±30 V
Input impedance 100 kΩ
Data skew 10 ns typical
PC interface USB 2.0
Power supply USB
Dimensions, cm 15 × 8 × 3
Weight, g 230

Leaptronix PLA-1016 PC-Based Logic Analyzer Package

  • Logic analyzer Leaptronix PLA-1016
  • Signal capture cable
  • USB cable
  • CD with software, driver and manual
  • Service warranty card
