Overview
0.2 kg Warranty: 24 months
Digital pen type multimeter which measures AC/DC voltage, resistance, capacitance and can be used for continuity and diode tests.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Pen Type Multimeter UNI T UT118B
Bestseller
Add to wishlist
Digital Pen Type Multimeter UNI-T UT118B
USD 27.13
Add to wishlist
Add to cart
Digital pen type multimeter for measuring AC/DC voltage, resistance, capacitance, continuity and diode tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 845322 0.15 kg
SMD Tester UNI T UT116A
Bestseller
Add to wishlist
SMD Tester UNI-T UT116A
USD 24.58
Add to wishlist
Add to cart
Compact SMD tester designed for measuring DC voltage, resistance, capacitance, and also for continuity and diode testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 894024 0.1 kg
Pocket Digital Multimeter UNI T UT125C
Bestseller
Add to wishlist
Pocket Digital Multimeter UNI-T UT125C
USD 16.32
Add to wishlist
Add to cart
The multimeter with 4000 display counts and overload protection. It is an ideal tool for measuring AC/DC voltage and current, resistance, capacitance, frequency, diode and continuity.
Bestseller
Availability in stock: HK
Shipping cost
ID: 883712 0.25 kg
Description

UNI-T UT118A is a digital multimeter which can measure AC/DC voltage, resistance, capacitance and can be used for continuity and diode tests.

UNI-T UT118A Digital Pen Type Multimeter Features

  • Measurement functions:
    • AC/DC voltage
    • resistance
    • capacitance
    • continuity test
    • diode test
  • Data hold
  • Low battery indication

UNI-T UT118A Digital Pen Type Multimeter Technical Specifications

Display 3000 digit LCD, backlight, 28 × 14 mm
DC voltage Range (SCAN / AUTO) SCAN mode: 3 V / 30 V / 300 V
AUTO mode: 3 V / 30 V / 300 V
Accuracy ±(1%+ 3)
AC voltage Range (SCAN / AUTO) SCAN mode: 3 V / 30 V / 300 V
AUTO mode: 3 V / 30 V / 300 V
Accuracy ±(1%+ 4)
Resistance Range (SCAN / AUTO) SCAN mode: 300 Ω / 3 kΩ / 30 kΩ / 300 kΩ / 3 MΩ
AUTO mode: 300 Ω / 3 kΩ / 30 kΩ / 300 kΩ / 3 MΩ / 30 MΩ
Accuracy ±(1%+ 3)
Capacitance Range (SCAN / AUTO) SCAN mode: 3 nF / 30 nF / 300 nF / 3 μF / 30 μF / 300 μF
AUTO mode: 3 nF / 30 nF / 300 nF / 3 μF / 30 μF / 300 μF / 3 mF
Accuracy ±(3%+ 5)
Power 3 V Li-MnO2 button cell battery
Dimensions 182 × 27 × 20 mm
Weight 0.090 kg

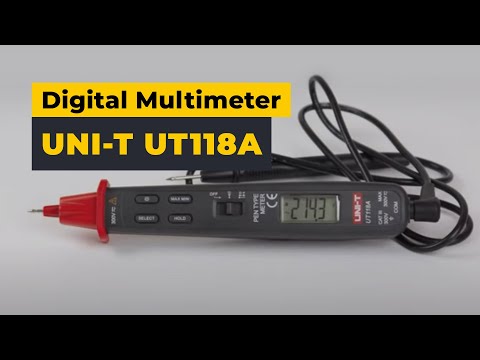

UNI-T UT118A Digital Pen Type Multimeter Video Review

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT118A Digital Pen Type Multimeter Package Contains

  • Multimeter UNI-T UT118A (1 pc.)
  • Test lead (1 pc.)
  • Battery (1 pc.)
  • User manual (1 pc.)
Read more
Description

UNI-T UT118A is a digital multimeter which can measure AC/DC voltage, resistance, capacitance and can be used for continuity and diode tests.

UNI-T UT118A Digital Pen Type Multimeter Features

  • Measurement functions:
    • AC/DC voltage
    • resistance
    • capacitance
    • continuity test
    • diode test
  • Data hold
  • Low battery indication

UNI-T UT118A Digital Pen Type Multimeter Technical Specifications

Display 3000 digit LCD, backlight, 28 × 14 mm
DC voltage Range (SCAN / AUTO) SCAN mode: 3 V / 30 V / 300 V
AUTO mode: 3 V / 30 V / 300 V
Accuracy ±(1%+ 3)
AC voltage Range (SCAN / AUTO) SCAN mode: 3 V / 30 V / 300 V
AUTO mode: 3 V / 30 V / 300 V
Accuracy ±(1%+ 4)
Resistance Range (SCAN / AUTO) SCAN mode: 300 Ω / 3 kΩ / 30 kΩ / 300 kΩ / 3 MΩ
AUTO mode: 300 Ω / 3 kΩ / 30 kΩ / 300 kΩ / 3 MΩ / 30 MΩ
Accuracy ±(1%+ 3)
Capacitance Range (SCAN / AUTO) SCAN mode: 3 nF / 30 nF / 300 nF / 3 μF / 30 μF / 300 μF
AUTO mode: 3 nF / 30 nF / 300 nF / 3 μF / 30 μF / 300 μF / 3 mF
Accuracy ±(3%+ 5)
Power 3 V Li-MnO2 button cell battery
Dimensions 182 × 27 × 20 mm
Weight 0.090 kg

UNI-T UT118A Digital Pen Type Multimeter Video Review

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT118A Digital Pen Type Multimeter Package Contains

  • Multimeter UNI-T UT118A (1 pc.)
  • Test lead (1 pc.)
  • Battery (1 pc.)
  • User manual (1 pc.)
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • resistance
  • capacitance
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • max / min
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 3000
