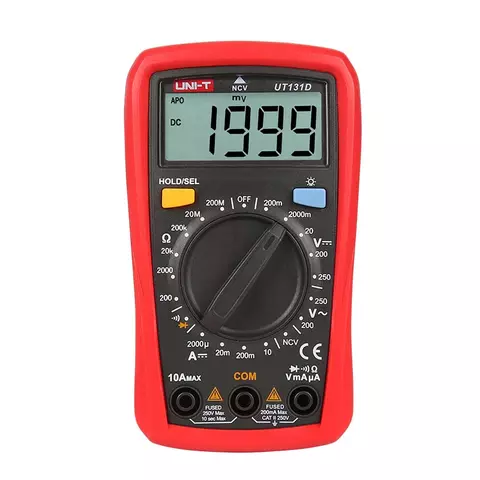

Pocket Digital Multimeter UNI-T UT131D

id: 883720
0.4 kg Warranty: 24 month (s)
Measures DC/AC voltage, DC current and resistance. Diode, continuity and non-contact voltage (NCV) testing. Manual range selection.
Price coming soon
Contact
sales team
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

UNI-T UT131D is a pocket digital multimeter. It is used for DC/AC voltage, DC current and resistance measuring, as well as diode, continuity and non-contact voltage (NCV) testing. Its innovative industrial design ensures that the multimeter can withstand 2 meters drop.

Features

  • Compact and lightweight multimeter, perfect for carrying in the toolbox or pocket.
  • Testing & measurement functions:
    • DC/AC voltage;
    • DC current;
    • resistance;
    • diode testing;
    • continuity;
    • NCV.
  • Comfortable protective cover with test lead holder.
  • 2 m drop proof.
  • Loud buzzer sound.
  • Ergonomic design.
  • Auto power off.
  • Auto backlight off.
  • Manual range selection.

Technical Specifications

Function Range Accuracy
DC voltage 200 mV ~ 250 V ±(0.5%+2)
AC voltage 200 V ~ 250 V ±(1.2%+10)
DC current 2000 μA ~ 10 A ±(1%+2)
Resistance 200 Ω ~ 200 MΩ ±(0.8%+2)
General Specifications
Power 1.5 V battery (R03) × 2
Display 2000-count LCD, 66 × 51 mm
Dimensions 131 × 95 × 58 mm
Weight 300 g

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

User Manual

PDF Download UNI-T UT131D User Manual.

Package Contents

  • Pocket Digital Multimeter UNI-T UT131D — 1 pc.
  • Battery — 2 pcs.
  • Test leads — 2 pcs.
  • User Manual — 1 ps.
Specifications
Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 250 V
AC Voltage
  • up to 250 V
Resistance
  • up to 200 MOhm
DC
  • up to 10 A
AC
  • does not measure the AC
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
NCV
  • yes
Battery Testing
  • no
Video
Youtube video
Youtube video
Delivery
Payment
Warranty

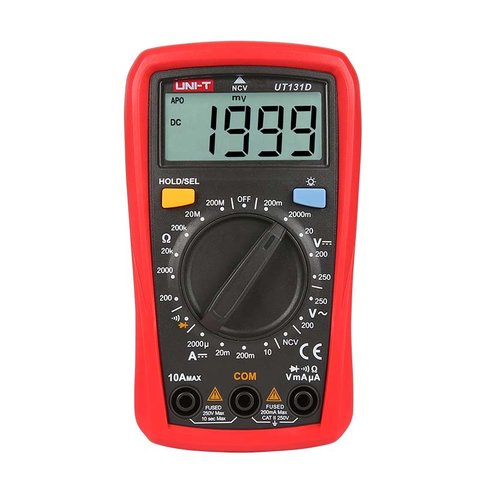

Pocket Digital Multimeter UNI T UT131D - Short description
