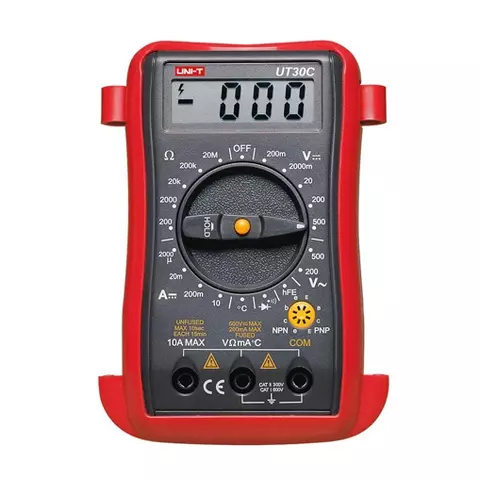

Pocket Digital Multimeter UNI-T UT30C
You may also like
This UNI-T UT30C pocket digital multimeter measures AC/DC current and AC voltage, resistance, temperature, tests diodes and continuity.
Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.
Features
- Functions:
- AC/DC current and AC voltage
- resistance
- temperature (ºC)
- continuity test (with buzzer)
- diode test
- Data Hold function
- Transistor check
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Display | 1999 digit LCD, 48 × 16 mm | |
| DC voltage | Range | 200 mV / 2000 mV / 20 V / 200 V / 500 V |
| Accuracy | ±(0.5%+2) | |
| AC voltage | Range | 200 V / 500 V |
| Accuracy | ±(1.2%+10) | |
| DC current | Range | 2000 µA / 20 mA / 200 mA / 10 A |
| Accuracy | ±(1%+2) | |
| Resistance | Range | 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 20 MΩ |
| Accuracy | ±(0.8%+2) | |
| Temperature, ºC | Range | -40~1000 |
| Accuracy | ±(1%+30) | |
| Power | 9 V battery: 6F22 | |
| Dimensions (H × W × D), mm | 130 × 74 × 41 | |
| Weight, g | 160 | |
Package Contents
- Multimeter UNI-T UT30C
- Test leads
- Temperature Probe
- Battery
- Holster
- User manual
Optional Accessories
This UNI-T UT30C pocket digital multimeter measures AC/DC current and AC voltage, resistance, temperature, tests diodes and continuity.
Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.
Features
- Functions:
- AC/DC current and AC voltage
- resistance
- temperature (ºC)
- continuity test (with buzzer)
- diode test
- Data Hold function
- Transistor check
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Display | 1999 digit LCD, 48 × 16 mm | |
| DC voltage | Range | 200 mV / 2000 mV / 20 V / 200 V / 500 V |
| Accuracy | ±(0.5%+2) | |
| AC voltage | Range | 200 V / 500 V |
| Accuracy | ±(1.2%+10) | |
| DC current | Range | 2000 µA / 20 mA / 200 mA / 10 A |
| Accuracy | ±(1%+2) | |
| Resistance | Range | 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 20 MΩ |
| Accuracy | ±(0.8%+2) | |
| Temperature, ºC | Range | -40~1000 |
| Accuracy | ±(1%+30) | |
| Power | 9 V battery: 6F22 | |
| Dimensions (H × W × D), mm | 130 × 74 × 41 | |
| Weight, g | 160 | |
Package Contents
- Multimeter UNI-T UT30C
- Test leads
- Temperature Probe
- Battery
- Holster
- User manual
Optional Accessories
