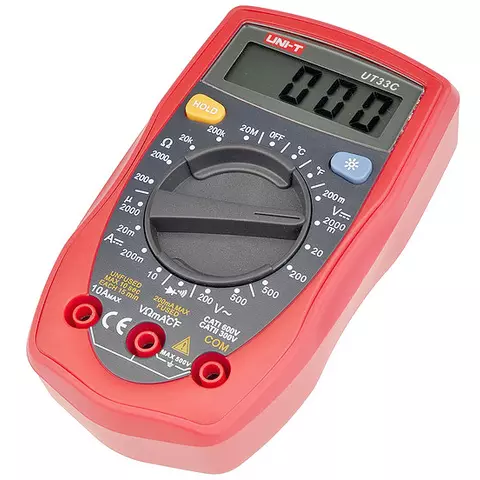

Pocket Digital Multimeter UNI-T UT33C
You may also like
This UNI-T UT33C pocket digital multimeter measures AC/DC current and AC voltage, resistance, temperature, tests diodes and continuity.
Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.
User Manuals
Download UNI-T UT33C pocket digital multimeter user manual
Features
- Functions:
- AC/DC current and AC voltage
- resistance
- temperature (ºC and ºF)
- continuity test (with buzzer)
- diode test
- Data Hold function
- Low battery indication
Technical Specifications
| Display | 1999 digit LCD, 48 × 16 mm | |
| DC voltage | Range | 200 mV / 2000 mV / 20 V / 200 V / 500 V |
| Accuracy | ±(0.5%+2) | |
| AC voltage | Range | 200 V / 500 V |
| Accuracy | ±(1.2%+10) | |
| DC current | Range | 2000 µA / 20 mA / 200 mA / 10 A |
| Accuracy | ±(1%+2) | |
| Resistance | Range | 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 20 MΩ |
| Accuracy | ±(0.8%+2) | |
| Temperature, ºC | Range | -40~1000 |
| Accuracy | ±(1%+30) | |
| Temperature, ºF | Range | -40~1832 |
| Accuracy | ±(1%+4) | |
| Power | 9 V battery: 6F22 | |
| Dimensions (H × W × D), mm | 130 × 73.5 × 35 | |
| Weight, g | 156 | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- Multimeter UT33C
- Test lead
- Point contact temperature probe
- Battery
- Holster
- User manual
Optional Accessories
This UNI-T UT33C pocket digital multimeter measures AC/DC current and AC voltage, resistance, temperature, tests diodes and continuity.
Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.
User Manuals
Download UNI-T UT33C pocket digital multimeter user manual
Features
- Functions:
- AC/DC current and AC voltage
- resistance
- temperature (ºC and ºF)
- continuity test (with buzzer)
- diode test
- Data Hold function
- Low battery indication
Technical Specifications
| Display | 1999 digit LCD, 48 × 16 mm | |
| DC voltage | Range | 200 mV / 2000 mV / 20 V / 200 V / 500 V |
| Accuracy | ±(0.5%+2) | |
| AC voltage | Range | 200 V / 500 V |
| Accuracy | ±(1.2%+10) | |
| DC current | Range | 2000 µA / 20 mA / 200 mA / 10 A |
| Accuracy | ±(1%+2) | |
| Resistance | Range | 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 20 MΩ |
| Accuracy | ±(0.8%+2) | |
| Temperature, ºC | Range | -40~1000 |
| Accuracy | ±(1%+30) | |
| Temperature, ºF | Range | -40~1832 |
| Accuracy | ±(1%+4) | |
| Power | 9 V battery: 6F22 | |
| Dimensions (H × W × D), mm | 130 × 73.5 × 35 | |
| Weight, g | 156 | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- Multimeter UT33C
- Test lead
- Point contact temperature probe
- Battery
- Holster
- User manual
Optional Accessories
