Pocket Digital Multimeter UNI-T UT33C+
id: 873653
Pocket Digital Multimeter UNI-T UT33C+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 10.38
Notify
when in stock
when in stock
Overview
0.8 kg Warranty: 24 months
The device measures AC/DC voltage, DC current, resistance and temperature, and also may be used to test diodes and continuity. Read more
Buy wholesale and save
You may also like
New
Add to wishlist
ID: 890292
Digital Multimeter Accta AT-205
USD 9.63
Add to wishlist
Add to cart
True RMS multimeter used to measure AC/DC voltage and current, capacitance, frequency and resistance. May be used to perform diode and continuity tests.
Availability in stock:
HK
ID: 890292 0.4 kg
Frequently bought together
Add to wishlist
ID: 834649
Tweezers Measuring Probe UNI-T UT-L01
USD 3.92
Add to wishlist
Add to cart
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock:
HK
ID: 834649 0.061 kg
Description

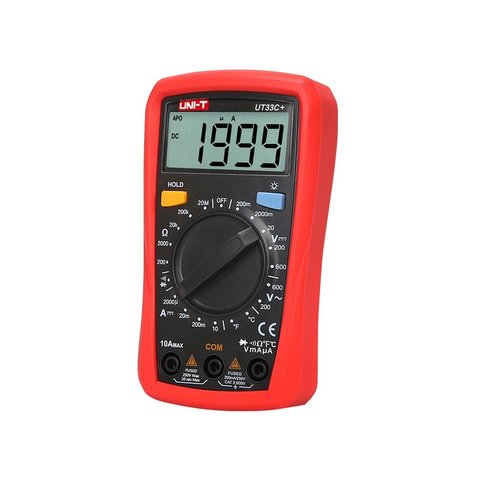

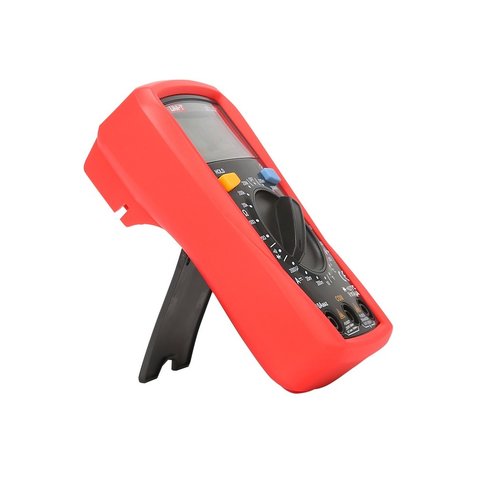

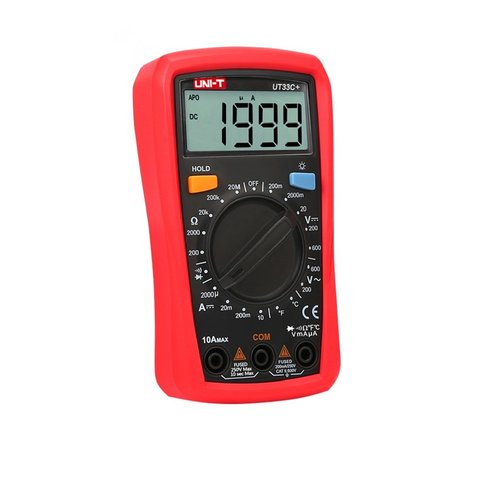

UNI-T UT33C+ is a reliable and precise pocket digital multimeter with a durable protective case and a large LCD. The device measures AC/DC voltage, DC current, resistance and temperature, and is used for diode check and continuity test.
Features
- Functions:
- AC/DC voltage and DC current;
- resistance;
- temperature (ºC and ºF);
- continuity test (with buzzer);
- diode test.
- Manual range selection.
- Test probe holder.
- Lacklit LCD.
- Data Hold function.
- Auto power off.
- Auto backlight off.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC voltage | 200 mV/2 V/20 V/200 V/600 V | ±(0.5%＋2) |
| AC voltage | 200 V/600 V | ±(1.2%+3) |
| DC current | 2000 μA/20 mA/200 mA/10 A | ±(1%+2) |
| Resistance | 200 Ω/2 kΩ/20 kΩ/200 kΩ/20 MΩ | ±(0.8%+2) |
| Temperature | -40℃~1000℃ | ±(1%+4) |
| -40℉~1832℉ | ±(1.5%+5) | |
| General Specifications | ||
| Display | LCD, 2000 count | |
| Power | 1.5V battery (R03) × 2 pcs. | |
| Drop test | 2 m | |
| Dimensions | 134 mm × 77 mm × 47 mm | |
| Weight | 206 g (with batteries) | |
User Manual
Download UNI-T UT33C+ user manual.
Package Contents
- UNI-T UT33C+ pocket digital multimeter — 1 pc.
- Test leads — 1 set
- K-type thermocouple — 1 pc.

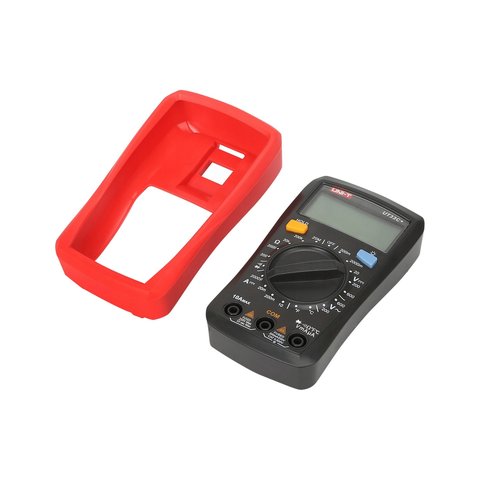

- Protective case — 1 pc.
- 1.5V R03 battery — 2 pc.
- User manual — 1 pc.
