Pocket-Sized Digital Oscilloscope DSO Nano DSO201

id: 821610
Pocket-Sized Digital Oscilloscope DSO Nano DSO201
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 75.00
Notify
when in stock
Overview
Brand: DSO Nano
0.24 kg 110, 220 V Warranty: 6 months

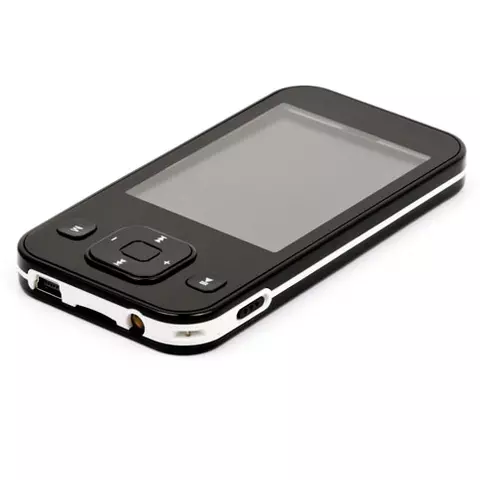

Pocket-sized digital oscilloscope with 1 MHz sample rate, 1Msps 12Bits maximum sample rate and 4096 point sample memory depth.
USD 75.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 75.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Portable Digital Oscilloscope FNIRSI 150
Bestseller
Add to wishlist
Portable Digital Oscilloscope FNIRSI 150
USD 25.00
Add to wishlist
Add to cart
Portable single-channel oscilloscope with 200 kHz bandwidth, 1 MSa/s sampling rate, 1 kB memory depth and 2.4" TFT display.
Bestseller
Availability in stock: HK
Shipping cost
ID: 895991 0.5 kg
Digital Oscilloscope FNIRSI 5012H
Bestseller
Add to wishlist
Digital Oscilloscope FNIRSI 5012H
USD 75.00
Add to wishlist
Add to cart
Portable single-channel oscilloscope with 500 MS/s sampling rate, 100 MHz bandwidth, 2.4" TFT display, and 3000 mAh lithium battery (provides up to 8 hours of operation).
Bestseller
Availability in stock: HK
Shipping cost
ID: 895990 0.6 kg
Description

The DSO supports a FAT16 formatted microSD card and USB connection. The DSO201 includes such specifications as up to 10mV/Div and 1us/Div sensitivity with 80Vpp maximum input voltage. The digital oscilloscope firmware can be updated easily.

DSO Nano DSO201 Pocket-Sized Digital Oscilloscope Review

DSO Nano DSO201 Pocket-Sized Digital Oscilloscope Features

  • Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage
  • Precise vertical measurement with markers
  • Precise horizontal measurement with markers
  • Rising/falling edge trigger
  • Trigger level adjustable with indicator
  • Trigger sensitivity adjustable with indicator
  • Hold/run feature

DSO Nano DSO201 Digital Oscilloscope Hardware Features

  • Connectors between 2 PCB board
  • Modified circuit layout of inputting part
  • Thin-film keypad without the gasket
  • MCX precision plug probe

DSO Nano DSO201 Digital Oscilloscope Firmware Features

  • Modified pattern of background coordinate grid
  • Corrected grammatical errors in the boot prompt information
  • Changed UI mode of operation
  • "FIT" adaptive function for scan synchronization mode:
    1. automatically select the scan time according to the signal frequency
    2. automatically select the sensitivity of Y-axis according to the signal amplitude
  • Without SD card both "p" and "M" button can be pressed to save the current state as the boot state automatically
  • Supports saving as BMP files
  • Comparison waveform can be cancelled with "M" when AUTO
  • Open source

DSO Nano DSO201 Pocket-Sized Digital Oscilloscope Technical Specifications

Display 2.8" 320×240 Colour TFT LCD
65K colour
Analog Bandwidth 0 - 1MHz
Maximum Sample Rate 1Msps 12Bits
Sample Memory Depth 4096 Point
Horizontal Sensitivity 1uS/Div~10S/Div 1-2-5 Step)
Horizontal Position Adjustable with Indicator
Vertical Sensitivity 10mV/Div~10V/Div (with ×1 Probe)
0.5V/Div~100V/Div (with ×10 Probe)
Vertical Position Adjustable with Indicator
Input Impedance 500KΩ
Max Input Voltage 80Vpp (by ×1 Probe)
Coupling DC
Trigger Modes Auto, Normal, Single, None and Scan
Test Signal Built-in 10Hz~1MHz (1-2-5 Step)
Waveform Storage SD Card
PC Connection via USB as SD Card Reader
Upgrade by Bootloader via USB
Power Supply 3.7V Chargeable Lithium Battery/USB
Dimension (w/o Probe), mm 105×53×8
Weight, g 60

DSO Nano DSO201 Pocket-Sized Digital Oscilloscope Package Content

  • DS0201(DSO Nano) v1.6 (1 piece)
  • 700mA Lithium Battery (1 piece)
  • Back Plate (1 piece)
  • Mini-Probe and Clips
Read more
Description

The DSO supports a FAT16 formatted microSD card and USB connection. The DSO201 includes such specifications as up to 10mV/Div and 1us/Div sensitivity with 80Vpp maximum input voltage. The digital oscilloscope firmware can be updated easily.

DSO Nano DSO201 Pocket-Sized Digital Oscilloscope Review

DSO Nano DSO201 Pocket-Sized Digital Oscilloscope Features

  • Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage
  • Precise vertical measurement with markers
  • Precise horizontal measurement with markers
  • Rising/falling edge trigger
  • Trigger level adjustable with indicator
  • Trigger sensitivity adjustable with indicator
  • Hold/run feature

DSO Nano DSO201 Digital Oscilloscope Hardware Features

  • Connectors between 2 PCB board
  • Modified circuit layout of inputting part
  • Thin-film keypad without the gasket
  • MCX precision plug probe

DSO Nano DSO201 Digital Oscilloscope Firmware Features

  • Modified pattern of background coordinate grid
  • Corrected grammatical errors in the boot prompt information
  • Changed UI mode of operation
  • "FIT" adaptive function for scan synchronization mode:
    1. automatically select the scan time according to the signal frequency
    2. automatically select the sensitivity of Y-axis according to the signal amplitude
  • Without SD card both "p" and "M" button can be pressed to save the current state as the boot state automatically
  • Supports saving as BMP files
  • Comparison waveform can be cancelled with "M" when AUTO
  • Open source

DSO Nano DSO201 Pocket-Sized Digital Oscilloscope Technical Specifications

Display 2.8" 320×240 Colour TFT LCD
65K colour
Analog Bandwidth 0 - 1MHz
Maximum Sample Rate 1Msps 12Bits
Sample Memory Depth 4096 Point
Horizontal Sensitivity 1uS/Div~10S/Div 1-2-5 Step)
Horizontal Position Adjustable with Indicator
Vertical Sensitivity 10mV/Div~10V/Div (with ×1 Probe)
0.5V/Div~100V/Div (with ×10 Probe)
Vertical Position Adjustable with Indicator
Input Impedance 500KΩ
Max Input Voltage 80Vpp (by ×1 Probe)
Coupling DC
Trigger Modes Auto, Normal, Single, None and Scan
Test Signal Built-in 10Hz~1MHz (1-2-5 Step)
Waveform Storage SD Card
PC Connection via USB as SD Card Reader
Upgrade by Bootloader via USB
Power Supply 3.7V Chargeable Lithium Battery/USB
Dimension (w/o Probe), mm 105×53×8
Weight, g 60

DSO Nano DSO201 Pocket-Sized Digital Oscilloscope Package Content

  • DS0201(DSO Nano) v1.6 (1 piece)
  • 700mA Lithium Battery (1 piece)
  • Back Plate (1 piece)
  • Mini-Probe and Clips
Specifications
Screen Size
  • 2.8" TFT display
Number of channels
  • single-channel
Storage Capacity
  • 4 kB
Bandwidth
  • 1 MHz
Type
  • portable
  • with built-in generator
Sample Rate
  • 1 MS/s
