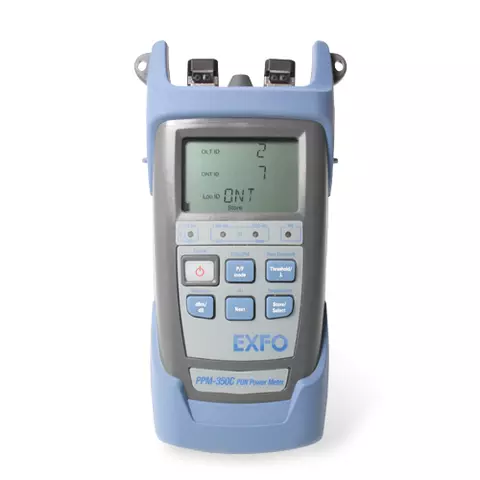

PON Power Meter EXFO PPM-353C
id: 857475
PON Power Meter EXFO PPM-353C
Overview
Description
Delivery
Payment
Warranty
Discontinued
Overview
Made in Canada
3 kg Warranty: 12 months
Complex Device, Tailored Solutions: We're Here to Help!
This device is highly sophisticated. If needed, we're ready to assist you in finding the best model for your specific needs.
This item is delivered upon order. The current price and delivery time require clarification.
PPM-350C series optical power meter for PON, BPON, GPON, EPON, FTTx networks. Read more
Discontinued
Description
EXFO PPM-353C is a PPM-350C series optical power meter for PON, BPON, GPON, EPON, FTTx networks.
Features
- Simultaneous measurement of all PON signals*, anywhere on the network
- Innovative workflow management, for boosted test routine efficiency
- Enhanced rugged and weatherproof design
- Protected data format, for guaranteed test result authenticity
- Two-port pass-through: all wavelengths
- Downstream OLT signal (1490 nm)
- Upstream BPON ONT signal for up to 622 Mbit/s, as per ITU 983 (A, B, C)
- Upstream EPON and GPON ONT signal for up to 1.25 Gbit/s, as per ITU 984 and IEEE 802.3ah
Technical Specifications
| Function | PPM-352C | PPM-353C | FTTx MODE |
|---|---|---|---|
| Power measurement range—pass zone for continuous data stream | 1310 nm | 8 to –40 dBm | 8 to –40 dBm |
| 1490 nm | 12 to –40 dBm | 12 to –40 dBm | |
| 1550 nm | 25 to –40 dBm | N/A | |
| Burst measurement capability | CO to ONT | CO to ONT | |
| Burst measurement range | 1310 nm | 8 to –30 dBm | 8 to –30 dBm |
| ORL | 1550 nm | 55 dB | 55 dB |
| Pass-through insertion loss | 1.5 dB | 1.5 dB | |
| Spectral passband | 1310 nm | 1260 to 1360 nm | 1260 to 1360 nm |
| 1490 nm | 1480 to 1500 nm | 1480 to 1500 nm | |
| 1550 nm | 1539 to 1565 nm | 1539 to 1565 nm | |
| Power uncertainty | 0.5 dB | 0.5 dB | |
| Calibrated wavelengths | 1310/1490/1550 nm | 1310/1490 nm | |
| Threshold sets | 10 configurable threshold sets with threshold naming |
||
| OPM MODE (BROADBAND CW) | |||
| Power measurement range | 1310 nm | 25 to –40 dBm | |
| 1490 nm | 25 to –40 dBm | ||
| 1550 nm | 25 to –40 dBm | ||
| ORL | 1550 nm | 55 dB | |
| Power uncertainty | 0.5 dB | ||
| Calibrated wavelengths | 1310/1490/1550 nm | ||
| General Specifications | |||
| Temperature | Operating | –10 °C to 50 °C (14 °F to 122 °F) | |
| Storage | –40 °C to 70 °C (–40 °F to 158 °F) | ||
| Relative humidity | 0 % to 95 % non-condensing | ||
| Autonomy | FTTx mode (burst) | 35 hours | |
| OPM mode (CW) | 80 hours | ||
| Number of ports | 2 | ||
| Recommended calibration interval | 3 years | ||
| Size (H x W x D) | 195 × 100 × 57 mm | ||
| Weight | 0.4 kg (0.9 lb) | ||
Package Contents
- EXFO PPM-353C Optical Power Meter – 1 pc.
- USB cable – 1 pc.
- Wrist strap – 1 pc.
- Protective cover for optical ports – 1 pc.
- Quick reference guide – 1 pc.
- CD with software and user guide – 1 pc.
