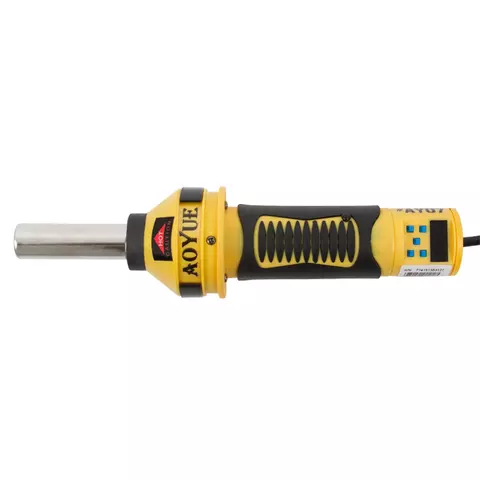

Portable Hot Air Gun AOYUE 8032A++
id: 840392
Portable Hot Air Gun AOYUE 8032A++
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
0.9 kg 220 V Warranty: 12 months
Turbine pump type. Equipped with digital indicator. Temperature: 100°C – 480°C. Read more
You may also like
Soldering station for operation with soldering tips of Hakko T12 standard. Soldering iron power: 70 W, heat gun power: 350 W. The package includes one original Hakko tip.
Made in Ukraine
Availability in stock:
HK
ID: 4040 3.5 kg 220
Description
AOYUE 8032A++ is a portable hot air soldering station. Turbine pump of AOYUE-8032A++ produces soft airflow, which concentrates temperature on operating components to avoid air ripple from diaphragm pump. Sensor control of temperature and airflow. Digital temperature and airflow indication.
Features
- Power On/Off button and airflow/temperature control buttons are located on the hot air gun handle. Reset function of parameters to be settled earlier.
- Hot air gun is equipped with digital indicator to control temperature mode during whole operation period.
- Discrete temperature control enables to set required temperature accurate within 1°C.
- Turbomotor produces soft vertical blast.
- Antistatic performance of hot air gun enables with static-sensitive components.
- Hot air gun packed into cardboard box with protective frame.
Technical Specifications
| Temperature range | 100°C – 480°C |
| Temperature control | Sensor, discrete |
| Airflow control | Sensor, discrete |
| Power consumption | 550 W (max.) |
| Operating voltage | 220 V |
| Airflow | 30 l/min.(max.) |
| Nozzle diameter | 21.5 mm |
| Motor | Turbine, based on RS-365SH |
| Nozzles | AOYUE 1197 |
| Heating element | AOYUE 10096 |
| Dimensions | 77 × 277 mm |
Package Contents
- AOYUE 8032A++ Hot Air Gun – 1 pc.
- Nozzle – 1 pc.
- User manual – 1 pc.
Specifications
| Pump type |
|
| Design type |
|
| Vacuum pick-up tool |
|
| Desoldering Pump |
|
| Power Supply |
|
| Soldering Iron Power |
|
| Hot Air Gun Power |
|
| Desoldering Gun |
|
