Power quality analyzer, multimeter and dual channel oscilloscope with recording capability. FlukeView software is able of logging harmonics and all other readings over time. Read more
Description

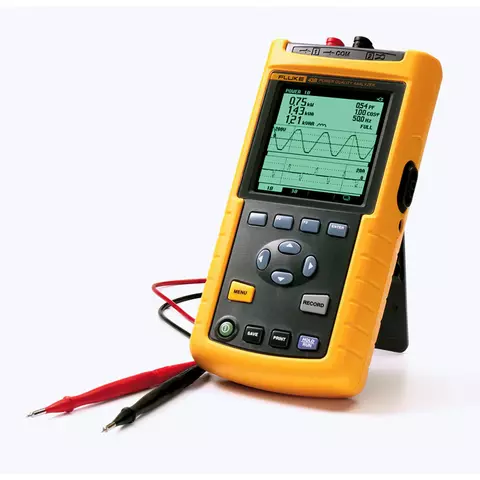

Fluke 43B combines the most useful functions of a power quality analyzer, multimeter and dual channel oscilloscope with recording capability. Fluke 43B power quality analyzer tracks voltage, current, frequency, power harmonics, captures voltage sags, transients and inrush current, measures resistance, diode voltage drop, continuity, and capacitance. FlukeView software is able of logging harmonics and all other readings over time and providing a complete harmonics profile up to the 51st harmonic.
Fluke 43B Power Quality Analyzer User Manuals
Download Fluke 43B power quality analyzer applications guide
Download Fluke 43B power quality analyzer starting manual
Download additional information about Fluke 43B power quality analyzer
Download Fluke 43B power quality analyzer software manual
Download software reference for Fluke 43B power quality analyzer
Download Fluke 43B power quality analyzer user manual
Fluke 43B Power Quality Analyzer Features
- 3-phase power calculation on balanced loads from a single-phase measurement
- Monitoring functions for intermittent problems and power system performance tracking
- Two selectable parameters recording for up to 16 days
- 20 measurement memories to save/recall screens and data with cursor readings
- Voltage, current power harmonics up to 51st harmonic; THD and phase angle for individual harmonics
- Demonstration how to set up 3-phase power measurements
- Cursors to read time and date of sags and swells
- Voltage transients and waveform distortion with saving up to 40 transients
- Watts, power factor, displacement power factor, VA and VAR
- Voltage and current waveforms, true RMS voltage and current, frequency
- Complete package with voltage probe and current clamp
- Extended operation time
- User's/applications manual and power quality video
Fluke 43B Power Quality Analyzer Technical Specifications
| Input characteristics | ||
|---|---|---|
| Input impedance | 1 MΩ, 20 pF | |
| Voltage rating | 600 V rms | |
| Voltage / Current / Frequency display | ||
| True RMS voltage (AC + DC) | Range | 5.000 V / 50.00 V / 500.0 V / 1250 V |
| Accuracy | ±(1% + 10 counts) | |
| True RMS current (AC + DC) | Range | 50.00 A / 500.0 A / 5.000 kA / 50.00 kA / 1250 kA |
| Accuracy | ±(1% + 10 counts) | |
| Frequency | Range | 10.0 to 15.0 kHz |
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
| Crest factor | Range | 1.0 - 10.0 |
| Accuracy | ±(5% + 1 count) | |
| Power display | ||
| Watts, VA, VAR reactive power (1-phase and 3-phase,3 conductor balanced loads) | Range | 250 W / 2.50 kW/ 25.0 kW / 250 kW / 2.50 MW / 25 MW / 250 MW / 625 MW / 1.56 GW |
| Accuracy | ±(4% + 4 counts) fundamental power ± (2 % + 6 counts) total power |
|
| PF (Power factor) | Range | 0.00 to 1.0 |
| Accuracy | ±0.04% | |
| DPF (Displacement power factor) | Range | 0.00 / 0.25 / 0.90 / 1.00 |
| Accuracy | ±0.04 | |
| H2 Frequency fundamental | Range | 40.0 to 70.0 Hz |
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
| Harmonics display | ||
| Voltage, current, frequency | Fundamental | VA ±(3% + 2 counts) W ±(5% + 2 counts) |
| 2 to 31st harmonic | VA ±(5% +3 counts) W ±(10% +10 counts) | |
| 32 to 51st harmonic | VA ±(15% +5 counts) W ±(30% +5 counts) | |
| Frequency fundamental | Range | 40 Hz to 70 Hz |
| Accuracy | ±0.25 Hz | |
| Phase | Range | 10.0 to 15.0 kHz |
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
| Frequency | V, A (between Fundamental & Harmonics) | ±3º to ±15º |
| W (between Voltage Fundamental & Current Harmonics) | ±5º to ±15º | |
| K-factor (current and power) | Range | 1.0 to 30.0 |
| Accuracy | ±10% | |
| THD (Total harmonic distortion) | Range | 0.00 - 99.99 |
| Accuracy | ±(3% + 8 counts) | |
| Sags and swells | ||
| Recording times | 4 min to 16 days (selectable) | |
| Vrms actual, Vrms max, min(AC + DC) | Range | 5.000 V / 50.00 V / 500.0 V / 1250 V |
| Accuracy | readings ±(2% +10 counts); cursor readings ± (2% + 12 counts) | |
| Arms actual, Arms max, min (AC + DC) | Range | 50.00 A / 500.0 A / 5.000 kA / 50.00 kA |
| Accuracy | ±(2% +10 counts) | |
| Transient capture | ||
| Minimum pulse width | 40 ns | |
| Useful bandwidth input 1 | DC to 1 MHz | |
| Number of transients | 40 | |
| Voltage threshold settings | 20%, 50%, 100%, 200% above or below reference | |
| Reference signal | after START, the Vrms and frequency of the signal are measured. from these data a pure sinewave is calculated as reference for threshold setting. | |
| Vpeak min, Vpeak max at cursor | Range | 10 V / 25 V / 50 V / 125 V / 250 V / 500 V / 1250 V |
| Accuracy | ±5% of full scale | |
| Resistance, Capacitance, Diode, Continuity | ||
| Resistance | Range | 500.0 Ω / 5.000 kΩ / 50.00 kΩ / 500.0 kΩ / 5.000 MΩ / 30.00 MΩ |
| Accuracy | ±(0.6% + 5 counts) | |
| Capacitance | Range | 50.00 nF / 500.0 nF / 5.000 µF / 50.00 µF / 500.0 µF |
| Accuracy | ±(2% + 10 counts) | |
| Diode voltage | Range | 0 to 3.000 V |
| Accuracy | ±(2% + 5 counts) | |
| Continuity | beeper at < 30 Ω ± 5 Ω | |
| Max current | 0.5 mA | |
| Temperature | °C or °F | |
| Inrush current | ||
| Inrush times | 1 s, 5 s, 10 s, 50 s, 100 s, 5 min | |
| Current | Range | 1 A / 5 A / 10 A / 50 A / 100 A / 500 A / 1000 A |
| Accuracy | ±5% of full scale | |
| Cursor readings | peak max at cursor 1 and cursor 2 | |
| Time between cursors | Range | 4 to 235 pixels (1 pixel = inrush time/250) |
| Accuracy | ±(0.2% + 2 pixels) | |
| Temperature | Range | -100 °C - 400 °C |
| Accuracy | ±(0.5% + 5 counts) | |
| Scope display | ||
| Measurements | DC, AC, AC+DC, peak, peak-peak, frequency, duty cycle, phase, pulse width, crest factor | |
| Time ranges | 20 ns/div to 60 s/div | |
| Max sampling rate | 25 MS/s | |
| Bandwidth Voltage channel [1] | 20 MHz at inputs, 1 MHz with TL24 Leads | |
| Current channel [2] | DC to 15 kHz at inputs, 10 kHz with i400s current clamp | |
| Coupling | AC, DC (10 Hz - 3 dB) | |
| Vertical sensitivity | 5 mV/div to 500 V/div | |
| Vertical resolution | 8 bit (256 levels) | |
| Record length | 512 samples per channel | |
| Base ranges | 60 S/div to 20 nS/div ± (0.4% + 1 pixel) | |
| Timebase modes | normal, roll, single | |
| Pre-trigger | up to 10 divisions | |
| Trigger source | input 1 or Input 2 or automatic selection | |
| Trigger mode | automatic Connect-and-View, Free Run, and Single Shot | |
| Connect-and-View | advanced automatic triggering that recognizes signal patterns automatically adjusts triggering, timebase and amplitude and displays stable pictures |
|
| Memories | 20 (screens, settings, data) | |
| Other specifications | ||
| Operating temperature | 0°C to +50°C | |
| Battery | rechargeable NiMH pack (charger included), 6.5 hrs extended operating time (continuous) | |
| Dimensions, mm | 232 x 115 x 50 | |
| Weight, kg | 1.1 | |
Fluke 43B Power Quality Analyzer Package
- Power quality analyzer Fluke 43B (1 pc.)
- Infrared thermometer Fluke 61 (1 pc.)
- Flat-tipped slim-reach test probes Fluke TP1 (1 set)
- Test leads Fluke TL24 (1 set)
- Industrial test clips Fluke AC20 (1 set)
- Round slim-reach 4 mm test probes Fluke TP4 (1 set)
- AC current clamp Fluke i400s (1 pc.)
- Voltage probe Fluke VPS40 (1 pc.)
- Large jaw alligator clips Fluke AB200 (1 set)
- Banana-to-BNC adapter Fluke BB120 (1 pc.)
- Optically isolated USB interface adapter Fluke OC4USB (1 pc.)
- Rechargeable NiMH battery pack Fluke BP120MH (1 pack)
- Line voltage adapter/battery charger Fluke PM8907 (1 pc.)
- Hard case Fluke C120 (1 pc.)
- Software and user's manual on CD-ROM Fluke SW43W (1 pc.)
- Users manual and application guide (1 pc.)
