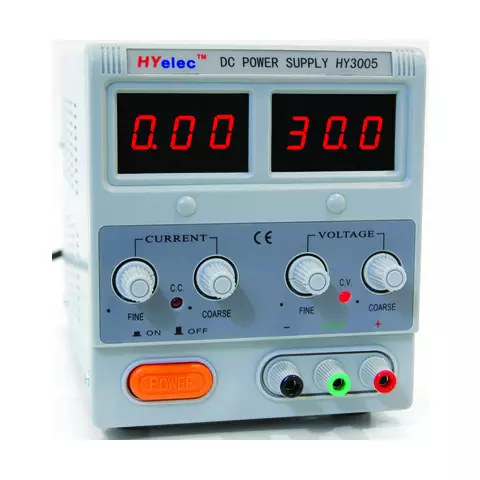

Power Supply with LED Indicators HYelec HY3005

id: 11151
Power Supply with LED Indicators HYelec HY3005
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 96.00
Contact
sales team
Overview
Brand: HYelec
5 kg 220 V Warranty: 6 months
Dual LED display, short-circuit protection, output voltage 0-30 V
USD 96.00
Contact
sales team
Compare
Compare
USD 96.00
Contact
sales team
Impossible to estimate the shipping cost
Description

Power supply unit HY3005 provides electronic devices and schemes with power supply by continuous voltage in the range from 0 to 30 V and by current in the range from 0 to 5 A.

Features

  • Parameters adjustment is made by potentiometers. There are two adjusters for each parameter (Coarse/Fine).
  • Output current value and output voltage value are displayed on 3-digit red colour LED-indicators.
  • Power supply source HY3005 has fault protection in the secondary circuit. In case of protection operating correspondent limiting LED indicators are lighting up by current or by voltage.
  • Output terminals, from which one can turn off the voltage, and bonding point are in the bottom of power supply faceplate HY3005.
  • Power supply is made by AC network 220 V. Power supply source HY3005 turning on/off is made by the big key switch with safe position fixation.

Technical specifications

Output voltage, V 0 - 30 V
Accuracy of output voltage system , V 0,1
Ripple level By current, mA ≤ 3 (I ≤ 3A)
≤ 6 (I ≥ 3A)
By voltage ≤ 0,5(I ≤ 3A)
≤ 1.0 (I ≥ 3A)
Load effect, % By current, mA ≤ 0,2 + 3 mA (I ≤ 3A)
≤ 0,2 + 5 mA (I ≥ 3A)
By voltage ≤ 0.01 + 3 mV(I ≤ 3A)
≤ 0.01 + 5 mV(I ≥ 3A)
Supply voltage effect, % By current, mA ≤ 0.2 + 2 mA
By voltage ≤ 0.01 + 2 mV
Output current value and output current voltage indication LED-panels
Overload protection By current,short-circuit protection
Power supply ~ 220 / 110V ± 10 %
Read more
Description

Power supply unit HY3005 provides electronic devices and schemes with power supply by continuous voltage in the range from 0 to 30 V and by current in the range from 0 to 5 A.

Features

  • Parameters adjustment is made by potentiometers. There are two adjusters for each parameter (Coarse/Fine).
  • Output current value and output voltage value are displayed on 3-digit red colour LED-indicators.
  • Power supply source HY3005 has fault protection in the secondary circuit. In case of protection operating correspondent limiting LED indicators are lighting up by current or by voltage.
  • Output terminals, from which one can turn off the voltage, and bonding point are in the bottom of power supply faceplate HY3005.
  • Power supply is made by AC network 220 V. Power supply source HY3005 turning on/off is made by the big key switch with safe position fixation.

Technical specifications

Output voltage, V 0 - 30 V
Accuracy of output voltage system , V 0,1
Ripple level By current, mA ≤ 3 (I ≤ 3A)
≤ 6 (I ≥ 3A)
By voltage ≤ 0,5(I ≤ 3A)
≤ 1.0 (I ≥ 3A)
Load effect, % By current, mA ≤ 0,2 + 3 mA (I ≤ 3A)
≤ 0,2 + 5 mA (I ≥ 3A)
By voltage ≤ 0.01 + 3 mV(I ≤ 3A)
≤ 0.01 + 5 mV(I ≥ 3A)
Supply voltage effect, % By current, mA ≤ 0.2 + 2 mA
By voltage ≤ 0.01 + 2 mV
Output current value and output current voltage indication LED-panels
Overload protection By current,short-circuit protection
Power supply ~ 220 / 110V ± 10 %
Specifications
Type
  • transformer
Number of channels
  • single-channel
Max. Voltage
  • up to 30 V
Max. Current
  • up to 5 A
Indicator type
  • LED indicators
