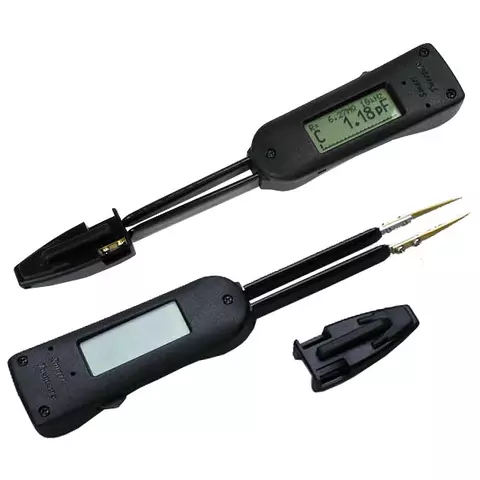

Precision Meter Bokar Smart Tweezers ST-AS
Overview
Description
The integration of SMD probes and the display, combined with an automatic recognition of a measurement mode (R, C, and L) and the best measurement range allow the user to focus on the component under test. As a result, testing, sorting and evaluation of components become much more efficient.
Features:
- Inductance, capacitance, resistance
Primary display shows present reading of the main impedance component (L,C, or R). The secondary display (at the top of the LCD screen) shows present reading of the secondary impedance component, such as a parasitic resistance of the capacitor (effective series resistor ESR). The Bar Graph provides an analog indication of the measured value.
- Voltage
The Smart Tweezers is capable of measuring voltage. In the Auto mode, it measures DC voltage up to 8 Volts. In the Trace mode, it shows an oscilloscope-like picture of AC voltage.
- Continuity/Open Test
The Smart Tweezers is designed for a continuity test. The beeper sounds when a resistance reading is below a threshold, or to indicate an open circuit.
- Durable Probes
Tweezers tips are made of gold-plated non-magnetic stainless steel.
- Ergonomic Design and Convenient Controls
Smart Tweezers features a Jog Dial button to select a menu item from the list to selected a function or to change settings. Rotate the Jog Dial button to select an item and push it down to activate the selection.
Technical specifications:
| Measured Parameters | C+R (ESR), L+R, R |
| Measuring Frequencies | 100Hz, 1 kHz, 10 kHz |
| Measurement update rate | Up to 4 measurements per second |
| DC Voltage | 0 to 800 mV (Up to 8V with manual setting) |
| Resistance | 0.05Ω to 9.9MΩ |
| Capacitance | 0.5 pF to 4999 µF |
| Inductance | 0.5 µH to 999mH |
Resistance: |
|
| Range | 5 Ω - 999 kΩ |
| 0.1 - 9.9 MΩ | |
| Accuracy: | <1% in the 5 Ω - 999 kΩ range |
| <5% in the 0.1 -9.9 MΩ range | |
| Test Frequency | 1 kHz |
Capacitance: |
|
| Range | 10pF - 100µF |
| 0.5pF - 4999µF | |
| Accuracy | <3% in the 10pF - 100µF range |
| <5% in the 0.5pF - 4999µF range | |
| Test Frequency | 1kHz: 10000pF to 1µF; 10kHz: < 9999pF; 100Hz: > 1µF |
Inductance: |
|
| Range | 10µH-99µH |
| 0.5µH-999µH | |
| Accuracy | <3% in the range of 10µH - 99mH |
| <5% in the range of 0.55µH - 999mH | |
| Test Frequency | 10kHz: 0.5 to 99 1µH; 1kHz: 100µH to 99mH; 0.1 kHz: > 100mH |
DC Voltage: |
|
| Range | 0 - 8 V |
| Accuracy | <1% |
Physical Specifications: |
|
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C hasta +70°C |
| Relative Humidity | 0 % to 90 % (0 °C to 35 °C) |
| 0 % to 70 % (35 °C to 55 °C) | |
| Altitude Operating | 0-2000 m |
| Battery Type | 1.5V LR44 Alkaline or Air zinc |
| Battery Life | 70 hours with alkalin |
| 200 hours with air zinc battery | |
| Electromagnetic Compatibility (EMC) | Susceptibility and Emission: FCC 15 part B |
| Size | 14.0 x 2.5 x 3.0 cm |
| Warranty | 1 year |
